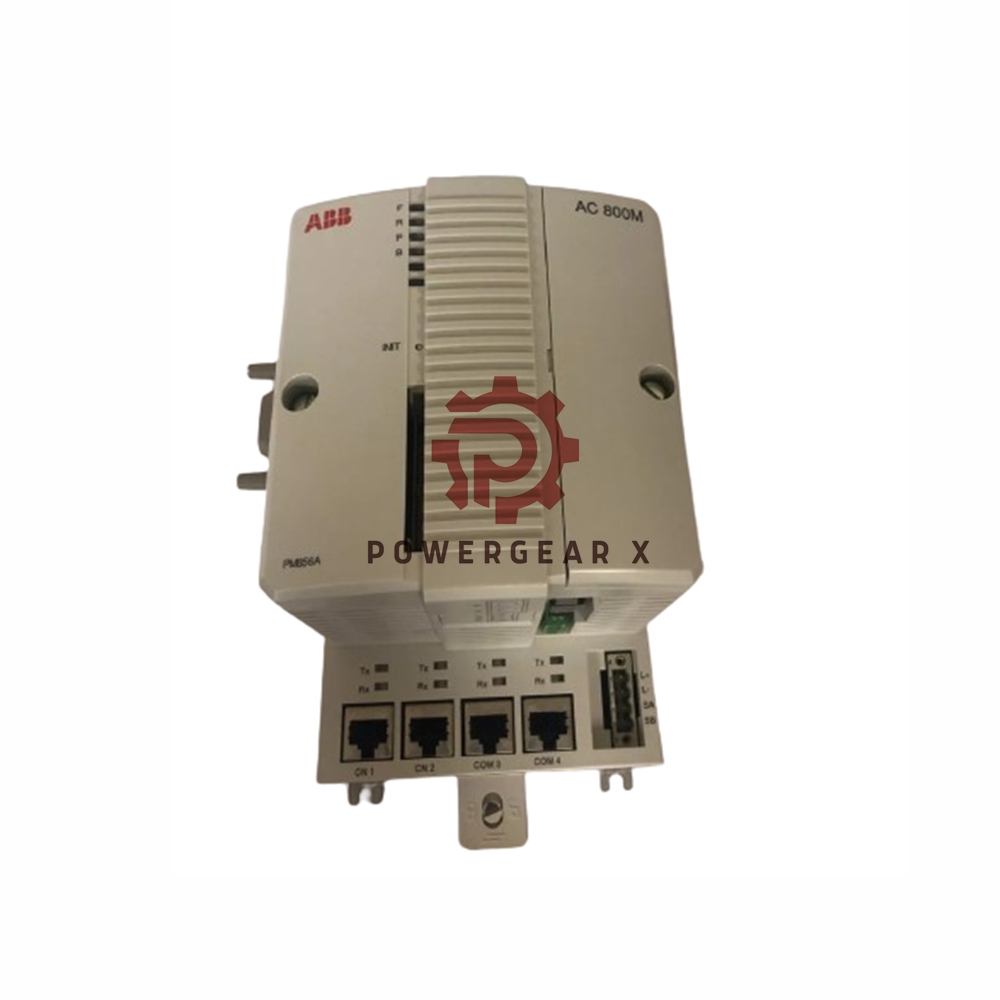

ABB | PM856AK01 Processor Unit Kit 3BSE066490R1

Overview:

The PM856AK01  Controller is a high-performance, modular industrial controller designed for demanding automation applications. It features an MPC860 processor, with ample RAM and flash memory for optimal performance and storage. Its communication capabilities include dual Ethernet ports, dual RS-232C ports, and support for a range of protocols like MMS and IAC for seamless integration with control networks.

Key Features:

• Reliability & Fault Diagnosis: Easy fault detection and modular design allow for step-by-step expansion.
• Compact & Easy Installation: Simple DIN rail mounting and a slide & lock mechanism for quick attachment and detachment.
• Communication Flexibility: Dual Ethernet ports (10 Mbit/s) and two RS-232C serial ports (for service and general use).
• Controller Configuration: Can be configured with 800xA Control Builder.
• Environmental Resilience: IP20 protection, suitable for industrial environments with a wide temperature range.

Technical Specifications:

• Brand & Model: ABB PM856A, Article number 3BSE066490R1 (PM856AK01)
• Processor Type: MPC860
• Clock Frequency: 24 MHz
• Performance: 0.46 ms for 1000 boolean operations
• Memory: 16 MB total (10.337 MB available for applications)
• Power Supply: 24 V d.c. (19.2-30 V d.c.)
• Flash Memory: 2MB for firmware storage
• Ethernet Ports: 2 x RJ45 (10 Mbit/s)
• RS-232C Ports: 2 (1 general, 1 for configuration tool)
• Temperature Range: Operating: +5 to +55°C, Storage: -40 to +70°C
• Dimensions: 119 mm (W) x 186 mm (H) x 135 mm (D)
• Weight: 1100 g (2.4 lbs)

FAQ:

• Q: Can the 3BSE066490R1 be used in a redundant configuration?
  A: No, the 3BSE066490R1 does not support redundancy.
• Q: What is the maximum number of applications supported?
  A: Up to 32 applications per controller.
• Q: Is there a back-up battery?
  A: Yes, a lithium 3.6 V back-up battery is included for timekeeping and memory retention.

For more detailed information, please check official datasheet: Product-PM856AK01
