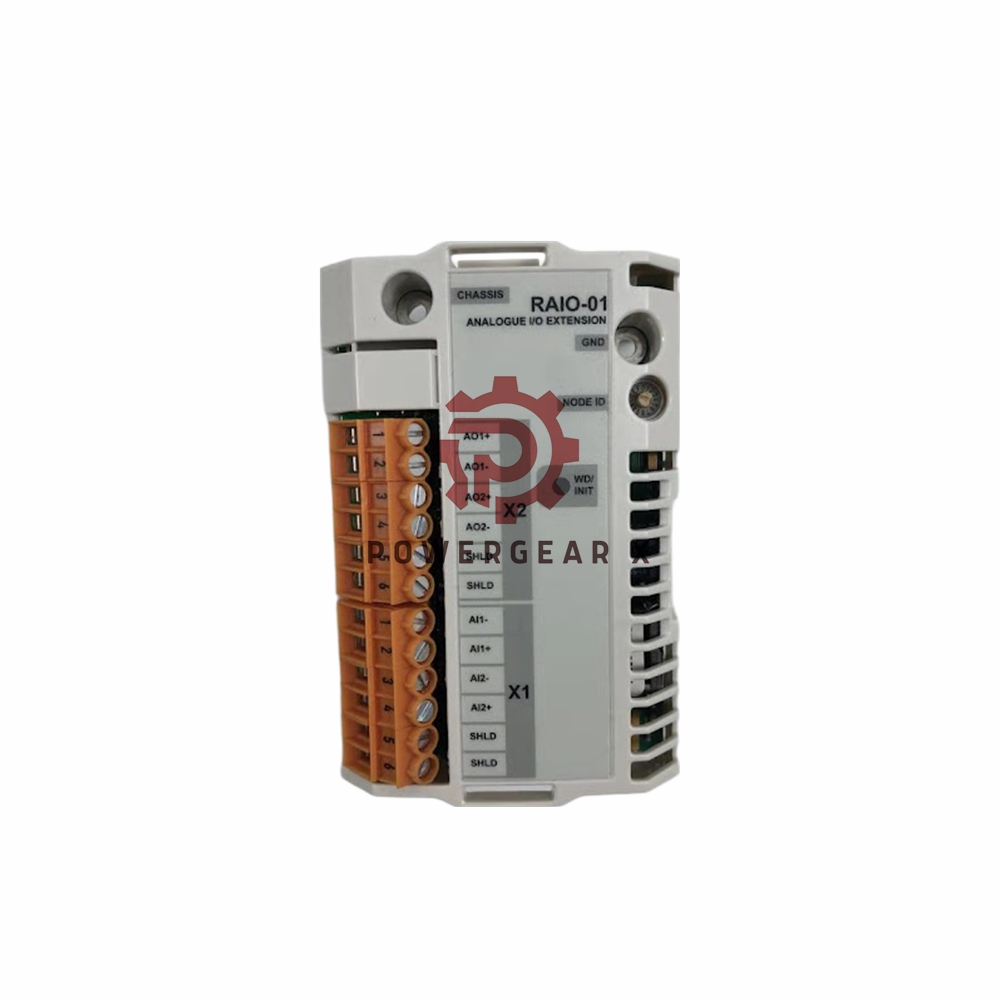

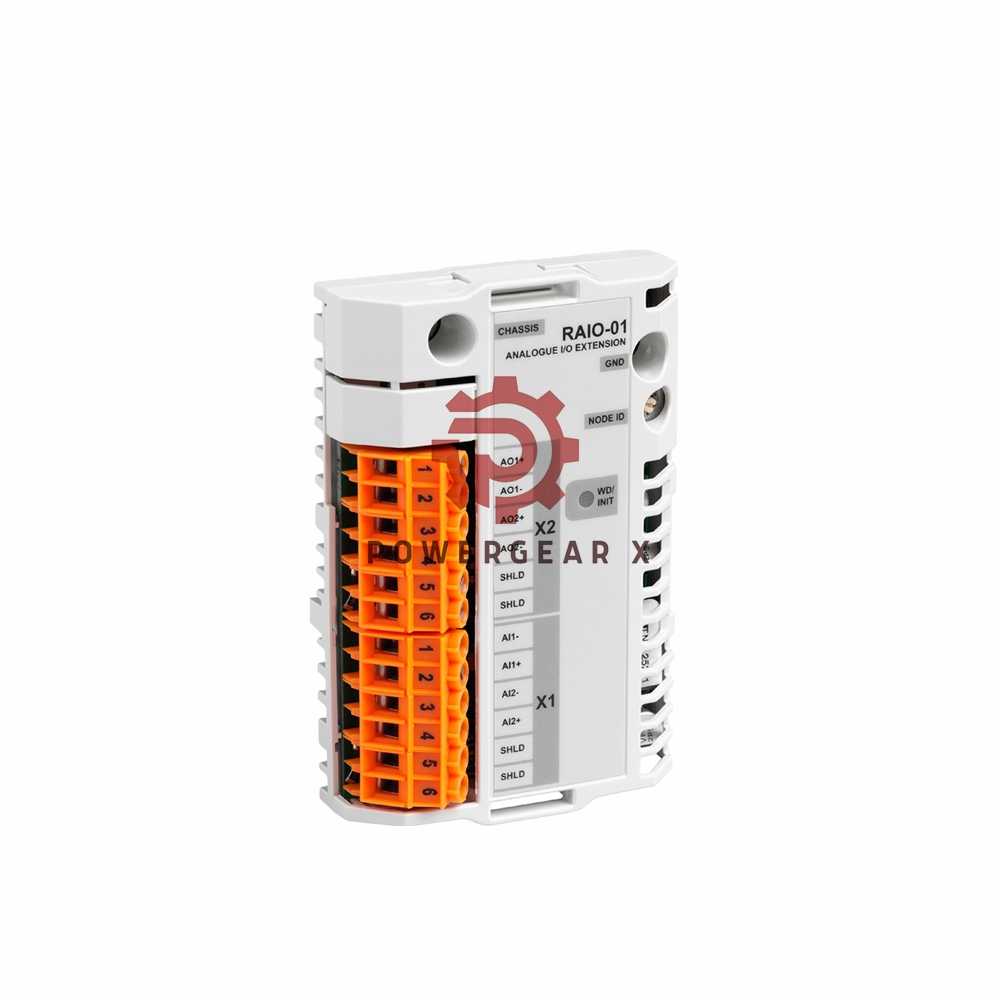

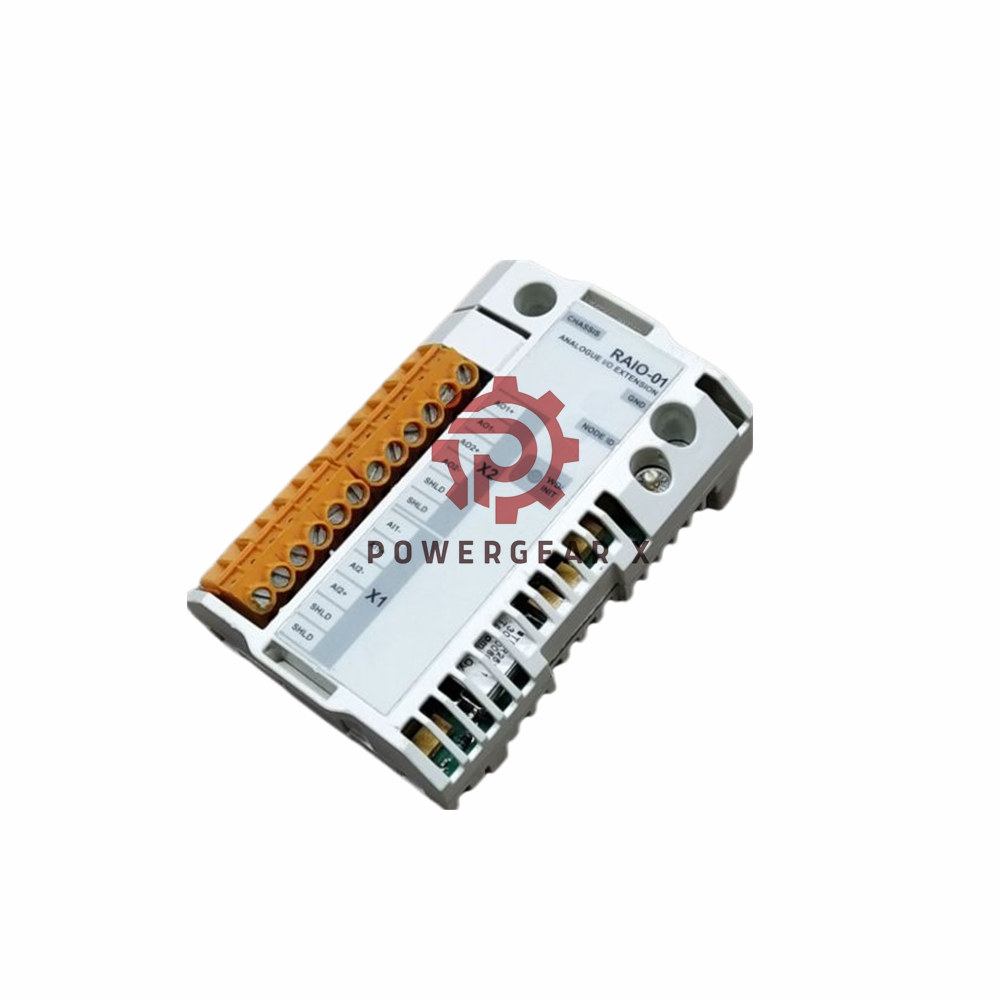

ABB RAIO-01 | Analogue I/O Extension Module

Overview:

The ABB RAIO-01 is a versatile analogue I/O extension module designed for integration into automation systems, providing precise signal processing for various industrial applications. It supports multiple signal types, including 4-20 mA, 2-10 V, and 0-2 V for inputs, and 4-20 mA for outputs.

Technical Specifications for RAIO-01

• Brand: ABB
• Model: RAIO-01
• Product Type: Analogue I/O Extension Module
• Signal Types: ±(0)4…20 mA, ±(0)2…10 V, ±0…2 V (inputs); 0(4)…20 mA (outputs)
• Input Impedance: 100 Ω (current), 200 kΩ (voltage)
• Resolution: 12-bit (0.024%)
• Input Inaccuracy: ±0.5% (Full Scale Range) at 25 °C
• Temperature Coefficient: ±100 ppm/°C max.
• Isolated Voltage: Continuous isolation voltage 48 V rms, peak isolation voltage 100 V
• Chassis Isolation: Tested at 1.5 kV AC for 1 second
• Load Resistance (outputs): 700 Ω max.
• Power Consumption: 100 mA (5 V) + 120 mA (24 V)
• Max. Lifetime: 100,000 hours
• Dimensions: 16.5 cm (H) x 0.004 cm (W) x 11.5 cm (D)
• Weight: 0.35 kg
• Mounting: Into RMIO board option slot or AIMA-01 I/O Module Adapter
• Connector Type: 38-pin parallel bus connector, two 6-pole screw-type terminal blocks (max. 2.5 mm² wire)
• Hardware Settings:
  • Rotary switch for node ID selection (range 1…15)
  • DIP switches for signal mode (bipolar/unipolar) and level selection

FAQ:

1. What are the input types supported by the RAIO-01 module?
   • The module supports both bipolar (±0[4]…20 mA, ±0[2]…10 V, ±0…2 V) and unipolar (0[4]…20 mA) input signals.
2. How is the RAIO-01 module mounted?
   • It can be mounted either into an option slot of the RMIO board of the drive or onto the external AIMA-01 I/O Module Adapter.
3. What is the maximum load resistance for the analogue outputs?
   • The maximum load resistance for the outputs is 700 Ω.
4. What is the degree of protection for the RAIO-01 module?
   • The module has an IP20 degree of protection, ensuring internal components are shielded from dust and minor contact with objects.
5. What are the power consumption requirements?
   • The RAIO-01 module requires 100 mA at 5 V and 120 mA at 24 V for operation.

For more detailed information: EN_RAIO-01_UM_B
