ABB | SD832 3BSC610065R1 | Power Supply Module

Overview

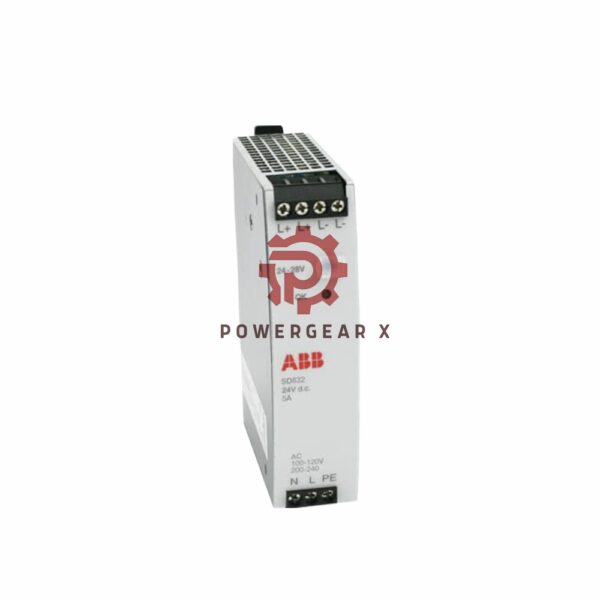

The SD832 Power Supply Unit, model 3BSC610065R1, by ABB is a robust and efficient switch-mode power supply designed to convert mains voltage to 24V DC. It meets international safety standards, including EN 50178, EN 61131-2, and UL 508. Ideal for both non-redundant and redundant applications, it can be used in SELV or PELV environments and provides superior protection for your electrical systems. For redundant configurations, diode voting units like the SS823 or SS832 are required.

Technical Specifications:

• Brand & Model: ABB, SD832, Part Number: 3BSC610065R1
• Output Voltage: 24V DC
• Rated Output Current: 5A
• Output Power: 120W
• Input Voltage: 100-120V AC / 200-240V AC (auto-select)
• Efficiency: 89.4% at 100-120V AC, 90.2% at 200-240V AC
• Power Factor: 0.56/0.47 at rated output power
• Regulation: Output voltage regulation < 70mV at max current
• Ripple (Peak to Peak): < 50mV
• Temperature Range: Operating temperature up to 55°C
• Dimensions: Width 32mm, Height 124mm, Depth 117mm, Weight 500g
• Primary Fuse: 10-20A (recommended external fuse)
• Short Circuit Protection (Secondary): 10-14A
• Output Over Voltage Protection: <39V
• CE, UL, IEC Certifications: Compliant with IEC 61131-2, UL 508, EN 50178
• Marine Certifications: ABS, BV, DNV-GL, LR

FAQ:

• Q: Can the 3BSC610065R1 power supply be used in hazardous environments?
  • A: No, the 3BSC610065R1 is not certified for ATEX or hazardous locations such as Class 1 Div 2.
• Q: What is the maximum current the 3BSC610065R1 can output?
  • A: The 3BSC610065R1 can provide a maximum output current of 6A at ambient temperatures below 45°C.

For more detailed information, please check official datasheet: Product-SD832
