ABB TU814/TU814V1 Compact MTU

Overview:

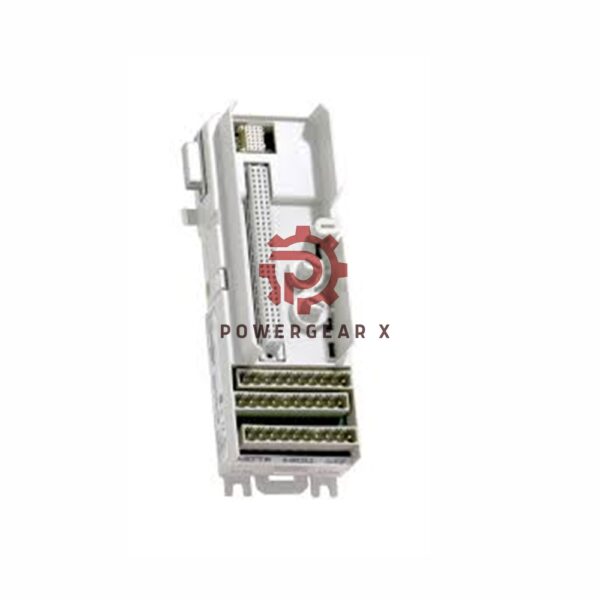

The TU814/TU814V1 Compact Module Termination Unit (MTU) is designed for the ABB S800 I/O system, providing a flexible and efficient solution for 50V applications. With 16 channels, it facilitates the connection of field signals and process power to a variety of I/O modules. The compact unit ensures ease of installation with one-wire connections and secure DIN rail mounting.

Technical Specifications:

• Brand: ABB
• Model: TU814/TU814V1
• Rated insulation voltage: 50 V
• Dielectric test voltage: 500 V a.c.
• Width: 64 mm (2.52”) including connectors; 58.5 mm (2.3”) edge-to-edge.
• Depth: 64 mm (2.52”), including terminals.
• Height: 170 mm (6.7”) including latch.
• Weight: 0.17 kg (0.37 lbs.)
• Process connections: Up to 16 I/O channels, 30 total connections.
• Current ratings: 2 A per I/O channel, 5 A per process voltage connection (L+).
• Mechanical keys: 36 different combinations to ensure correct module placement.
• Protection rating: IP20 (IEC 60529).

FAQ:

1. What is the rated insulation voltage for the 3BSE013233R1?
   • The rated insulation voltage is 50 V, suitable for various industrial applications.
2. What type of connectors does the 3BSE013233R1 use?
   • It uses crimped snap-in connectors for field signals and process power connections.
3. Can I use the 3BSE013233R1 with other brands’ I/O modules?
   • It is designed specifically for ABB S800 I/O modules and may not be compatible with other brands.

For more detailed information, please check official datasheet: S800_I_O_Modules_and_Termination_Units
