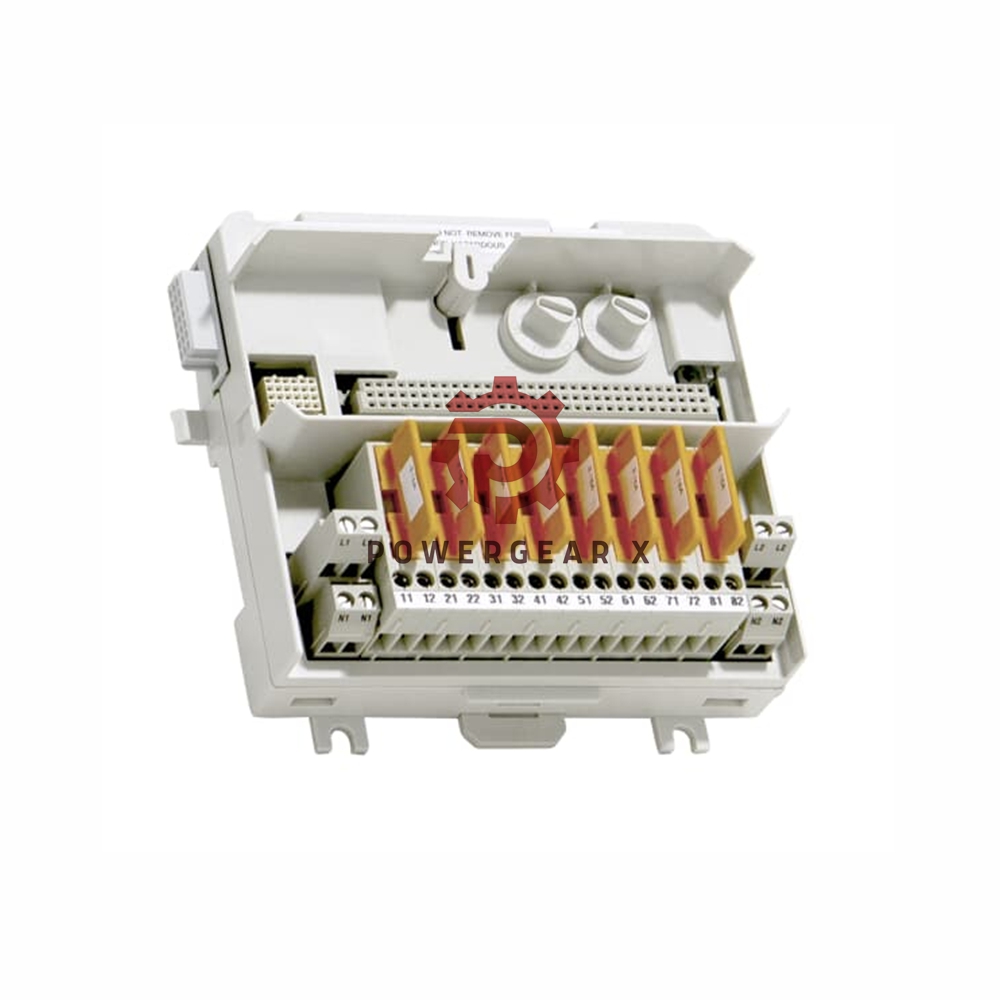

ABB TU836/TU836V1 Extended MTU 3BSE008566R1

Overview

The TU836/TU836V1 Extended Module Termination Unit (MTU) is designed for use with the S800 I/O modules. It provides efficient connection for field wiring to I/O modules and incorporates part of the ModuleBus system. This passive unit features a versatile design with up to 8 I/O channels, a maximum rated voltage of 250V, and a maximum current rating of 3A per channel.

Technical Specifications

• Brand: ABB
• Model: TU836/TU836V1
• Rated Maximum Continuous Current per Channel: 3A
• Rated Maximum Continuous Current per Process Voltage Connection: 10A
• Process Connections: 16 (for up to 8 I/O channels)
• Fuse Rating: 3.15A (fast glass tube, 5×20 mm)
• Acceptable Wire Sizes: Solid: 0.2 – 4 mm², Stranded: 0.2 – 2.5 mm² (24-12 AWG)
• Stripping Length: 7 mm
• Mechanical Key Configurations: 36 options (2 keys with 6 positions each)
• Module Lock: Ensures I/O module is locked before operation begins
• Protection Rating: IP20, Class I (Earth protected)
• Rated Insulation Voltage: 250V
• Dielectric Test Voltage: 2000V AC
• Dimensions: Width: 126 mm, Depth: 64 mm, Height: 110 mm
• Weight: 0.26 kg (0.57 lbs.)

For more detailed information, please check official datasheet: S800_I_O_Modules_and_Termination_Units
