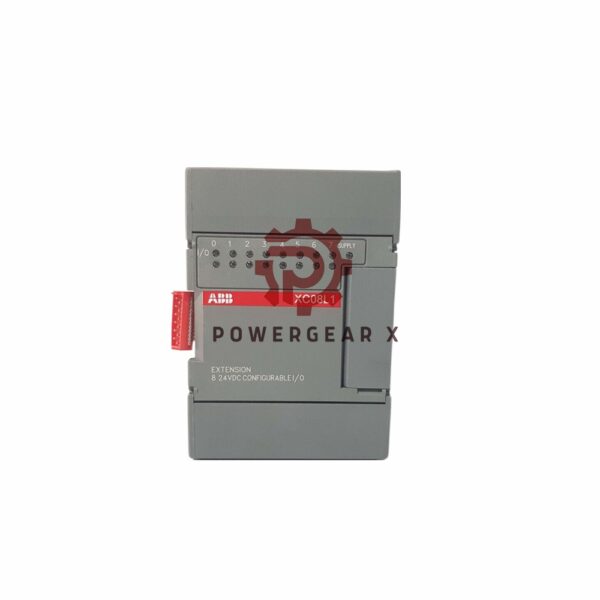

ABB XC-08-L1 XC08L1 Digital I/O Extension Unit

Overview

The ABB XC-08-L1 is a digital extension module designed for versatile automation tasks. It features 8 configurable channels that can function as either inputs or transistor outputs, with a 24 V DC / 0.5 A output rating. Compatible with the AC31 Series 40/50 controllers, this module supports robust performance in industrial environments.

Key Features

• Versatile Channel Configuration: 8 channels configurable as digital inputs or transistor outputs.
• DIN Rail Mounting: Designed for easy installation on TH35 rails (IEC 60715).
• Wide Operating Range: Ambient temperature operation from 0°C to +55°C.
• High-Quality Standards: Certified by DNV, GL, and LR for maritime and industrial use.
• Compact Design: Measures 93 mm (H) x 85 mm (L) x 65 mm (W) with a net weight of 0.19 kg.
• Reliable Power Supply: Requires a 24 V DC external power source.

Technical Specifications

• Brand: ABB
• Model: XC08L1/XC-08-L1
• Product Type: PLC-AC31-40/50 Distributed Automation I/Os
• Channels: 8 (configurable as DI/DO)
• Output Voltage: 24 V DC
• Output Current: 0.5 A per channel
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -40°C to +75°C
• Mounting: TH35 DIN Rail (15 mm or 7.5 mm depth)
• Certificates: DNV_A-8389, GL_17 179-00 HH, LR_00-20009-E1
• Country of Origin: France
• Customs Tariff Number: 85371091

FAQs

Q: What is the power supply requirement for the XC08L1?
A: It requires a 24 V DC external power supply.

Q: What is the maximum operating altitude for this module?
A: The XC08L1 can operate at altitudes up to 2000 meters.

Q: Can this module be used in maritime applications?
A: Yes, it is certified by DNV, GL, and LR for maritime use.

Q: What type of mounting is compatible with this module?
A: It is compatible with TH35 DIN rails, adhering to IEC 60715 standards.

Q: What is the primary use case for the XC08L1?
A: It is commonly used to extend digital I/O capabilities in distributed automation systems.

For more detailed information, please check official datasheet: Advant Controller 31
