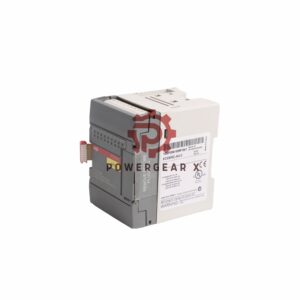

ABB XK08F1 XK-08-F1 Digital Input/Output Module

Overview

The ABB XK-08-F1 is a digital input/output extension module designed for versatile industrial applications. It features 4 isolated digital inputs (24 V DC) and 4 relay outputs (up to 250 V, 2 A), offering reliable and flexible performance.

Features

1. Isolated Digital Inputs: Four 24 V DC inputs ensure noise immunity.
2. Relay Outputs: Four relays support 250 V AC/DC, with a 2 A output current capacity.
3. Durable Design: Operates efficiently between 0 °C and +55 °C; storage range from -40 °C to +75 °C.
4. Compliance: CE, DNV, and GL certifications for industrial-grade reliability.
5. Mounting Compatibility: Supports DIN rail mounting (TH35-7.5/TH35-15).
6. Compact Size: Measures 85 mm in depth, 93 mm in height, and 65 mm in width with a lightweight design of 0.2 kg.

Technical Specifications

• Brand: ABB
• Model: XK08F1/XK-08-F1
• Suffix Meaning: “ST” indicates Spring Terminal connections.
• Inputs/Outputs: 4 digital inputs (24 V DC) and 4 relay outputs (250 V, 2 A).
• Power Supply: External 24 V DC.
• Altitude Rating: Operates effectively up to 2000 meters.
• Certifications: CE, DNV_A-8389, GL_17 179-00 HH, LR_00-20009-E1.

FAQ

Q1: What is the operating temperature range of the XK08F1?
A1: It operates between 0 °C and +55 °C and can be stored in conditions ranging from -40 °C to +75 °C.

Q2: What is the significance of “ST” in the model number?
A2: The suffix “ST” denotes the Spring Terminal connection type.

Q3: Is the XK08F1 compatible with standard DIN rails?
A3: Yes, it supports TH35-7.5 and TH35-15 mounting rails per IEC 60715.

Q4: Can this module handle AC voltage on its relay outputs?
A4: Yes, it supports up to 250 V AC/DC with a maximum output current of 2 A.

For more detailed information, please check official datasheet: Advant Controller 31
