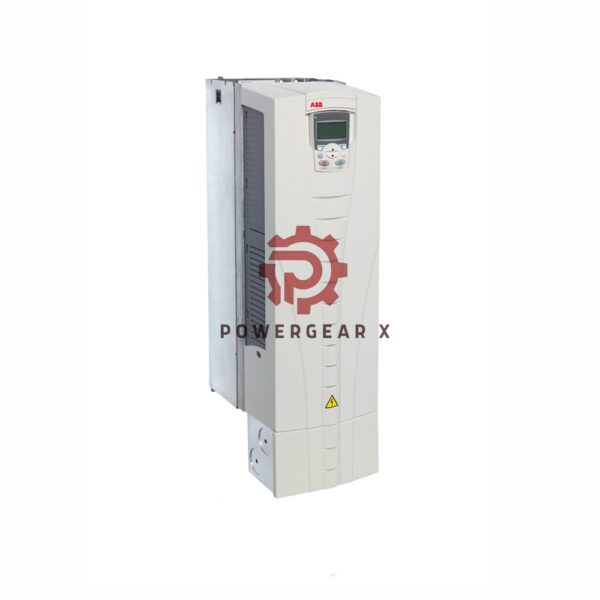

ACS510-01-246A-4+B055 ABB Inverter 132KW

Overview:

The ACS510-01-246A-4+B055 is a high-performance frequency converter designed by ABB. Ideal for industrial and commercial applications, it offers robust protection with an IP54 enclosure, ensuring reliable operation even in harsh environments. With a wide input voltage range (380V to 500V) and an output power of 132 kW, the ACS510 is a reliable choice for demanding motor control and energy-efficient solutions.

Key Features:

• Brand: ABB
• Model: ACS510-01-246A-4+B055
• Output Power: 132 kW
• Output Current: 245 A
• Input Voltage: 380–500 V
• Frequency Range: 47.5–63 Hz
• Degree of Protection: IP54
• Enclosure Type: NEMA Type 12
• Efficiency Level: IE2
• Frame Size: R6
• Operating Temperature: 40°C
• Standby Loss: 41 W
• Product Weight: 80 kg

Technical Specifications:

• Apparent Power Output: 170 kV·A
• Efficiency at 100% Load: 95.1%
• Efficiency at 50% Load: 96.9%
• Efficiency at 25% Load: 96%
• Operating Frequency: 0–100% load, with efficiency up to 97.7%
• Environmental Rating: WEEE Category 4, Large Equipment

Application:

The ACS510-01-246A-4+B055 is suitable for a wide range of applications in industries that require energy-efficient and reliable motor control solutions, including:

• HVAC systems
• Pumps
• Fans
• Conveyors
• Compressors

FAQ:

1. What is the input voltage range for the 3ABD00022032-D?
   The input voltage range is 380V to 500V.
2. What is the degree of protection for this frequency converter?
   The ACS510 has an IP54 rating, providing excellent protection against dust and water.
3. What is the efficiency level of this model?
   It has an IE2 efficiency level.
4. Can the ACS510 be used in outdoor applications?
   The IP54 rating makes it suitable for use in harsh environments but not directly exposed to outdoor elements.

For more detailed information, please check official datasheet: 3ABD00022032-D
