AFP0RE16RS Servo Drive Panasonic

Overview

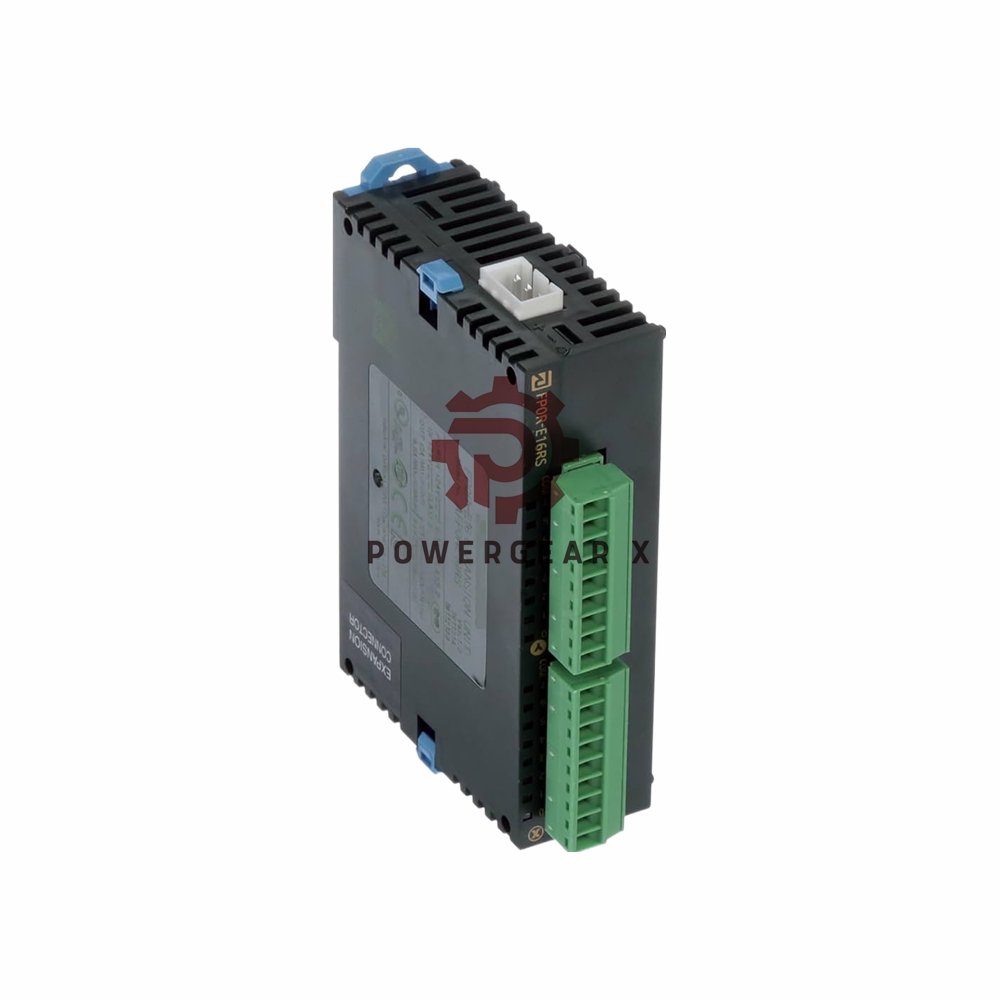

The FP0R Expansion Unit (AFP0RE16RS) is a versatile component designed for industrial automation, delivering efficient and reliable performance in various applications. It enhances the capabilities of the FP0R system, providing scalable I/O options to meet the requirements of diverse automation tasks.

Key Features

• Input Specifications:
  • Rated Input Voltage: 24 V DC
  • Applied Voltage Range: 21.6 to 26.4 V DC
  • Rated Input Current: Approx. 4.7 mA at 24 V DC
  • Input Impedance: Approx. 5.1 kΩ
  • Minimum ON Voltage/Current: 19.2 V / 2 mA
  • Maximum OFF Voltage/Current: 2.4 V / 1.2 mA
  • Response Time (OFF→ON): ≤ 2 ms
  • Response Time (ON→OFF): Same as above
  • Insulation Method: Photocoupler
• Output Specifications:
  • Output Type: 1a (Single-Pole, Normally Open)
  • Rated Control Capacity: 2 A @ 250 V AC, 2 A @ 30 V DC
  • Response Time (OFF→ON): Approx. 10 ms
  • Response Time (ON→OFF): Approx. 8 ms
  • Mechanical Lifetime: ≥ 2 x 10^7 operations
  • Electrical Lifetime: ≥ 10^5 operations
  • Surge Absorber: None
  • Output Points Per Common: 8 points/common

Technical Specifications

• Brand: Panasonic
• Model: AFP0RE16RS
• Suffix Meaning: [Provide specific information regarding model variations or suffix codes]
• Input Voltage Range: 21.6 to 26.4 V DC
• Control Capacity: 2 A at 250 V AC / 2 A at 30 V DC
• Mechanical Lifetime: ≥ 2 x 10^7 operations
• Electrical Lifetime: ≥ 10^5 operations
