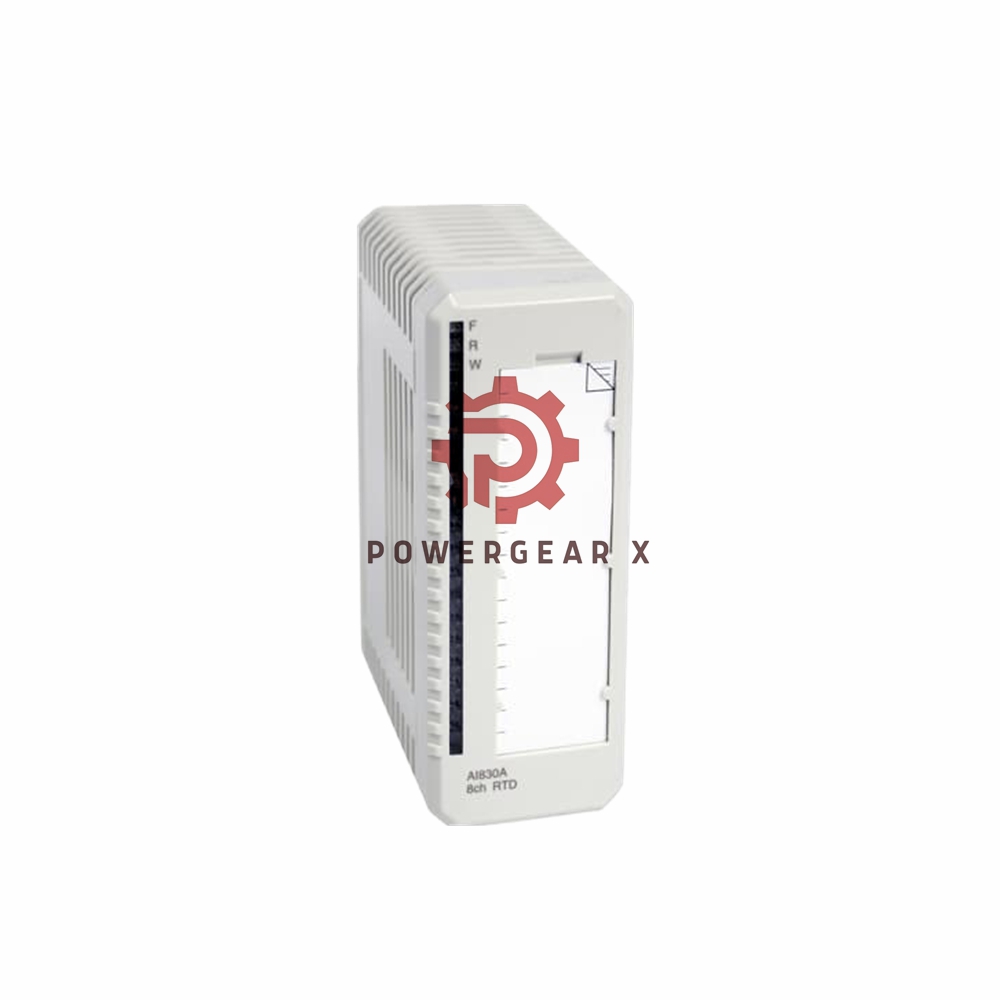

AI830A | ABB AI830 Analog Input RTD

Overview

The AI830/AI830A RTD Input Module is a versatile and reliable analog input module from ABB’s S800 I/O series, designed to measure temperature using resistive elements (RTDs) like Pt100, Cu10, Ni100, Ni120, and resistive sensors. It offers linearization and conversion to Centigrade or Fahrenheit directly on the module, ensuring accurate temperature readings. The module supports 3-wire RTD connections and ensures isolation from ground for reliable operation in various industrial environments.

Technical Specifications

• Brand/Model: ABB AI830/AI830A
• RTD Types Supported: Pt100, Cu10, Ni100, Ni120, resistive sensors.
• Channels: 8 analog inputs.
• Resolution: 14-bit.
• Isolation: Group-wise isolation from ground.
• Error Rate: Dependent on field cable resistance (Rerr = R * (0.005 + ∆R/100)).
• Temperature Drift: Refer to ABB S800 documentation.
• Update Cycle Time: 150 ms + 95 ms per active channel.
• Operating Temperature: 0°C to +55°C (+32°F to +131°F).
• Certifications: CE, ATEX Zone 2, Marine certifications (ABS, BV, DNV, LR).
• Dimensions: 45 mm (W) x 102 mm (D) x 119 mm (H).

FAQ

1. What RTD types can be used with AI830/AI830A?
Supports Pt100, Cu10, Ni100, Ni120, and resistive sensors in a 3-wire configuration.

2. Does the AI830/AI830A support HART communication?
No, this module does not support HART communication.

3. What is the maximum ambient temperature for operation?
The module operates reliably up to 55°C (131°F). For vertical mounting in compact MTUs, it is limited to 40°C (104°F).

4. Can the module detect sensor failures?
Yes, it features diagnostics for open-circuit, short-circuit, and grounded sensors.

5. What certifications does it have?
It is CE-marked and certified for hazardous locations (ATEX Zone 2, C1 Div 2).

For more detailed information, please check official datasheet: Product-AI830A
