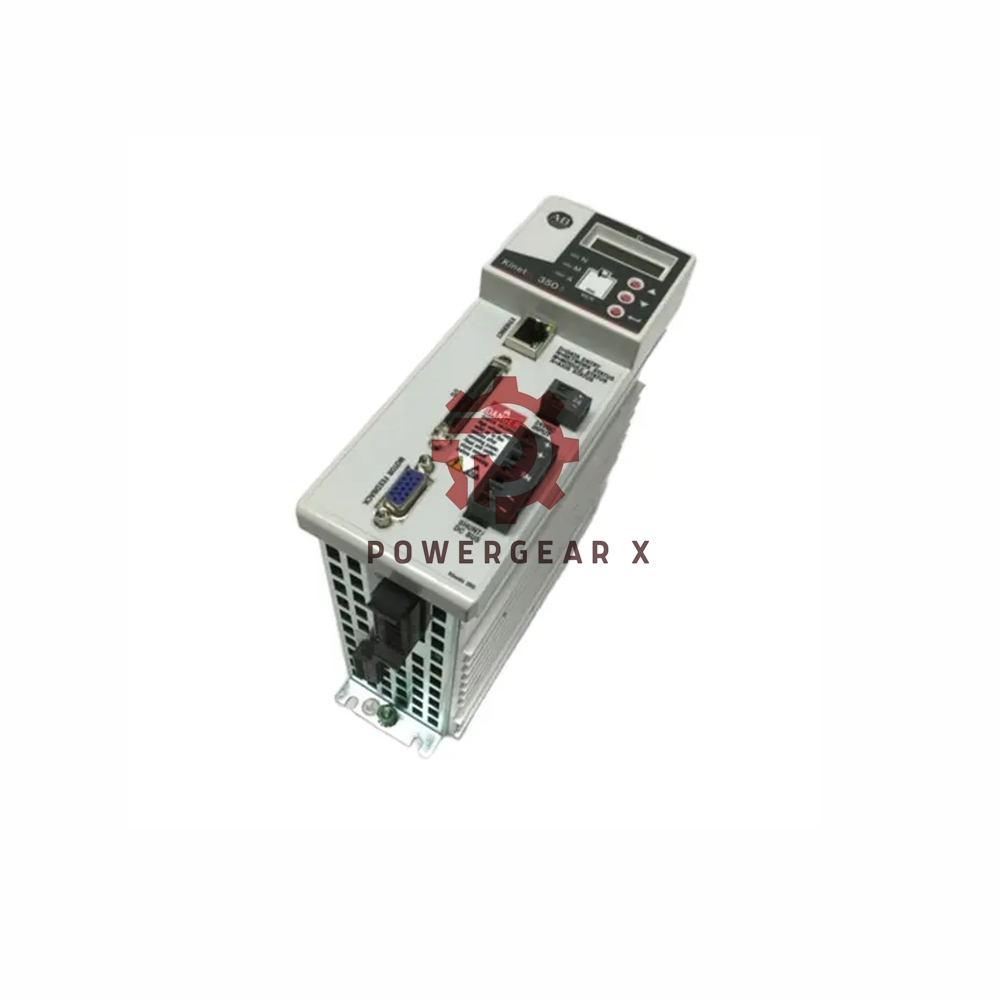

Allen-Bradley 2097-V33PR5-LM Servo Drive

Overview

The Allen-Bradley 2097-V33PR5-LM is a versatile Kinetix 350 Single Axis Ethernet I/P Indexing Servo Drive, designed to meet high-performance motion control requirements in various industrial applications. This drive is equipped with a safe Torque-Off feature, ensuring enhanced safety during operation. Offering flexibility in power input, it supports both single-phase and three-phase AC input voltage options, and is suitable for a wide range of motion control systems.

Technical Specifications

• Brand: Allen-Bradley
• Model: 2097-V33PR5-LM
• Manufacturer: Rockwell Automation
• Power Rating: 2.0 kW
• Input Voltage: 80-132VAC (1-Phase), 80-264VAC (1-Phase), 80-264VAC (3-Phase)
• Input Frequency: 48…62 Hz
• Main AC Input Current (Nominal):
  • 120/240V single-phase: 15.0 A
  • 240V three-phase: 8.7 A
• Max Inrush Current:
  • 120/240V single-phase: 1.15 A
  • 240V three-phase: 2.3 A
• Continuous Output Current (rms): 8.0 A
• Continuous Output Current (0-pk): 11.3 A
• Peak Output Current (rms): 24.0 A
• Peak Output Current (0-pk): 33.9 A
• Control Power Back-up Input Voltage: 20…26V DC
• Control Power Back-up Input Current (Nominal): 500 mA
• Control Power Back-up Input Current (Max. Inrush): 30 A
• Dimensions: 9.37 x 7.29 x 4.1 in (238 x 186.1 x 104.1 mm)
• Weight: 4.4 lbs (2.0 kg)
• Product Bulletin: 2097 Kinetix 300 Drives
• Part Number: 2097-V33PR5-LM
• Integrated AC (EMC) Line Filter: No
• 120 Volts Doubler Mode: No

Applications

The Allen-Bradley 2097-V33PR5-LM Kinetix 350 drive is ideal for applications requiring precise and reliable motion control. It can be used in industries such as:

• Machine Automation
• Packaging
• Material Handling
• Robotics
• Textile Manufacturing
• Conveyor Systems

FAQ

1. What is Safe Torque-Off (STO)?

Safe Torque-Off is a safety feature that instantly disables the motor’s torque, reducing the risk of unexpected motion during maintenance or emergency situations.

2. Can the 2097-V33PR5-LM be used in a 3-phase application?

Yes, the 2097-V33PR5-LM supports both single-phase and three-phase input voltage configurations, making it versatile for a variety of setups.

3. What is the maximum continuous output current of this drive?

The continuous output current is 8.0 A (rms), with a peak output current of 33.9 A (0-pk), providing high power for demanding applications.

4. Is the 2097-V33PR5-LM compatible with Ethernet/IP networks?

Yes, this drive is designed for Ethernet/IP communication, making it suitable for modern industrial automation systems.
