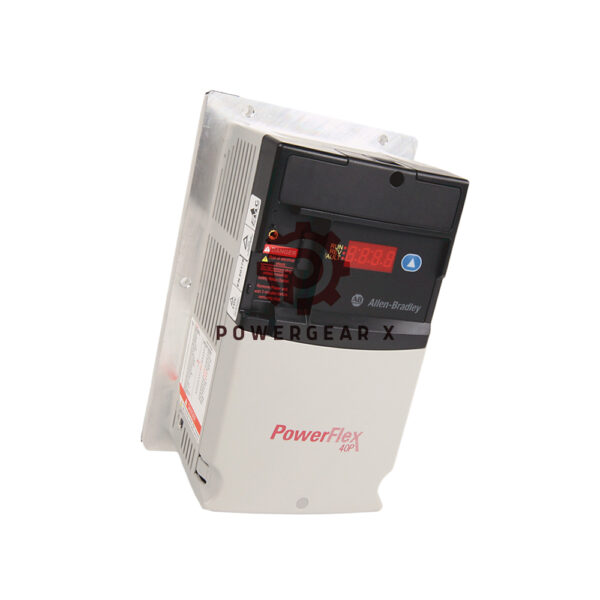

Allen-Bradley | 22D-B5P0H204 AC Drive PowerFlex 40P

Overview

The Allen-Bradley® PowerFlex® 40P AC Drive (Model 22D-B5P0H204) is a compact, cost-effective solution designed to meet the demands of global OEMs and end users. Offering flexibility, ease of use, and space savings, this drive is ideal for applications requiring speed or basic position control. It supports diverse industries such as packaging machines, smart conveyors, diverters, and fiber-spinning machinery. The drive is engineered for high performance, featuring closed-loop control and an option for Category 3 Safe Torque-off.

Technical Specifications

• Brand: Allen-Bradley®
• Model: PowerFlex® 40P
• Input Voltage: 240V AC (50/60 Hz)
• Output Current: 5A (Three-Phase)
• Motor Rating: 1 HP (0.75 kW)
• Horsepower Rating: 10 HP (3-Phase Drive)
• Control Type: Adjustable Frequency – PWM, Sensorless Vector (V/Hz)
• Enclosure: Plate Drive, Open Type, IP20
• Dimensions: 125 x 204 x 98 mm (H x W x D)
• Frame Size: B
• Mounting Type: Plate Mounting (NEMA Type Open)
• Brake: Standard Brake
• Safety Features: Option for Category 3 Safe Torque-off
• Filter: Without CE-compliant filter

Frequently Asked Questions (FAQ)

1. What applications is the PowerFlex® 40P AC Drive suitable for?
   It is ideal for controlling speed or position in applications like packaging machines, smart conveyors, and diverters.
2. Does the drive have any safety features?
   Yes, it includes an optional Safe Torque-off feature for secure operation.
3. Can I use this drive for global installations?
   Yes, it is designed to meet global OEM and end-user demands for flexibility and ease of use.
4. What is the mounting type for this drive?
   It features a plate mounting style, designed for easy integration into various machinery setups.

Check official datasheet for more detailed information: PowerFlex 40P
