Product details
Overview

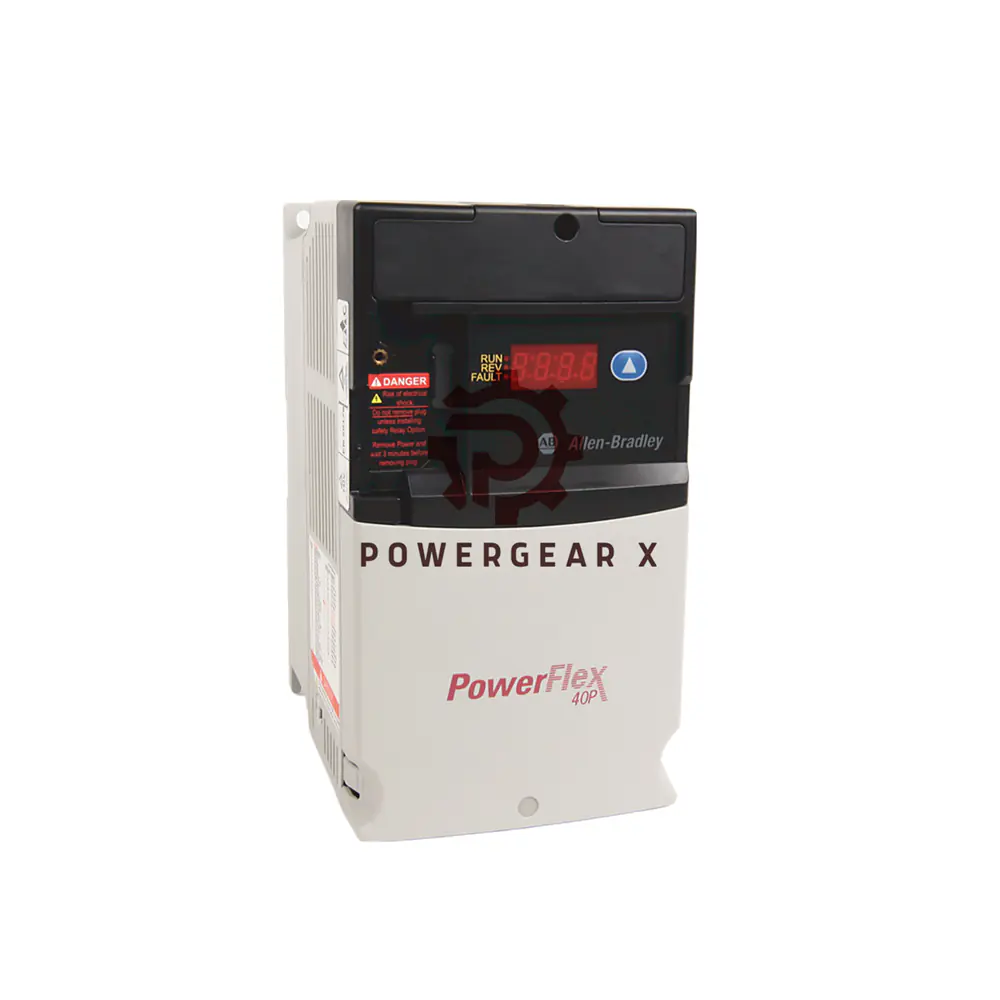

The Allen-Bradley 22D-D017F104, part of the PowerFlex 40P series, is an advanced motor control drive designed to control the speed and torque of motors in PLC systems. This adjustable frequency drive offers seamless integration into industrial automation applications, providing flexibility and ease of use. With its robust construction, including an open NEMA Type IP20 flange mount, the 22D-D017F104 is perfect for applications like conveyors, packaging machines, and fiber spinning machines. Its combination of reliability and performance makes it a top choice for industries requiring efficient motor control.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: 22D-D017F104
- PowerFlex 40P Series
- Frame Size: C
- Enclosure: Open NEMA Type (IP20) Flange Mount
- Input Power: 480 Volts AC, Three-Phase
- Maximum Output Current: 17 Amps
- Output Power Rating: 10 Horsepower (7.5 kW)
- Frequency Rating: 50-60 Hz
- Control Output Frequency: Up to 500 Hz
- Power Factor: 0.98
- User Interface: Integral Keypad with 4-Digit Display and LED Indicators
- Communication: CIP (RS-485), Remote HMI/PC Interface
- Brake IGBT: Included
- No CE Compliant Filter
- Torque-off: Category 3 Safe Torque-Off Option
Frequently Asked Questions (FAQ)
- What is the maximum output current rating of the 22D-D017F104?
The maximum output current rating is 17 Amps. - What is the input voltage for this drive?
It operates with 480 Volts AC in a three-phase setup. - Can I connect this drive to a remote HMI?
Yes, it supports CIP communication for remote HMI or PC interface. - What applications is the 22D-D017F104 suitable for?
It is ideal for smart conveyors, packaging machines, and fiber spinning machines. - Does the 22D-D017F104 come with a CE-compliant filter?
No, this model does not include a CE-compliant filter.
Check official datasheet for more detailed information: PowerFlex 40P
