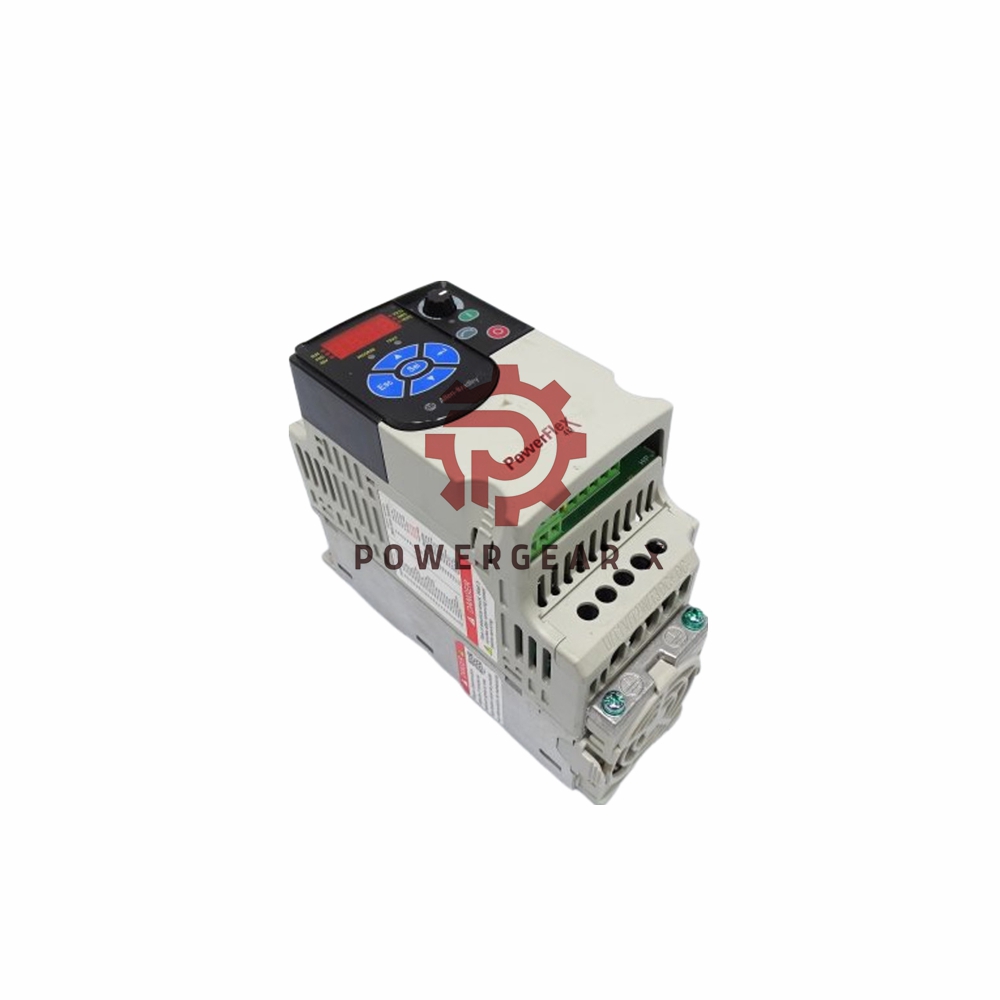

Allen-Bradley 22F-D1P5N103 Adjustable Frequency AC Drive

Overview

The Allen-Bradley 22F-D1P5N103 PowerFlex 4M Adjustable Frequency AC Drive is a reliable solution for motor control in industrial applications. Operating on a 3-phase, 480V AC input, this compact drive delivers up to 0.4 kW (0.5 HP) of power with advanced control capabilities.

Features

• Integrated Keypad: Simplifies user interface and programming.
• Control Methods: Supports Volts per Hertz (V/Hz) and Sinusoidal PWM.
• Communication: Built-in RS485 port and optional protocols such as Dual Ethernet/IP, DeviceNet, and ProfiBus DP.
• I/O Capability: Five discrete inputs (sink/source), one Form C output, and analog inputs (4–20 mA, 0–10VDC).
• Compact Design: Frame A size for space-efficient panel mounting.
• Enclosure Rating: IP20 / UL NEMA Type Open for standard industrial environments.

Technical Specifications

• Brand/Manufacturer: Allen-Bradley / Rockwell Automation
• Model: 22F-D1P5N103 (PowerFlex 4M series)
  • 22F: PowerFlex product line
  • D1P5: Denotes 1.5 A output current
  • N: Indicates IP20 enclosure
  • 103: Specifies 480V AC input and key features.
• Input Voltage: 380-480VAC, 3-phase
• Output Voltage: 0–460VAC
• Output Power: 0.4 kW (0.5 HP)
• Output Current: 1.5 A
• Enclosure Type: IP20 / NEMA UL Type Open
• Installation: Panel mount
• Filter: Without EMC filter
• Human Interface Module (HIM): Integrated, non-detachable
• Optional Communication: Supports advanced protocols like ProfiBus DP and Dual Ethernet/IP.

FAQ

Q1: What does the suffix “103” mean in the model number?
A1: It specifies the drive’s input voltage, enclosure type, and integrated features such as the keypad and RS485 communication.

Q2: Does this drive include a braking IGBT?
A2: No, the 22F-D1P5N103 model does not have a braking IGBT.

Q3: Is it CE-compliant?
A3: This model is not equipped with a CE-compliant EMC filter.

Q4: Can this drive be used with single-phase input?
A4: No, the 22F-D1P5N103 is designed for 3-phase input only.

Q5: What is the enclosure rating?
A5: The drive has an IP20 / NEMA UL Type Open enclosure, suitable for indoor use in controlled environments.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
