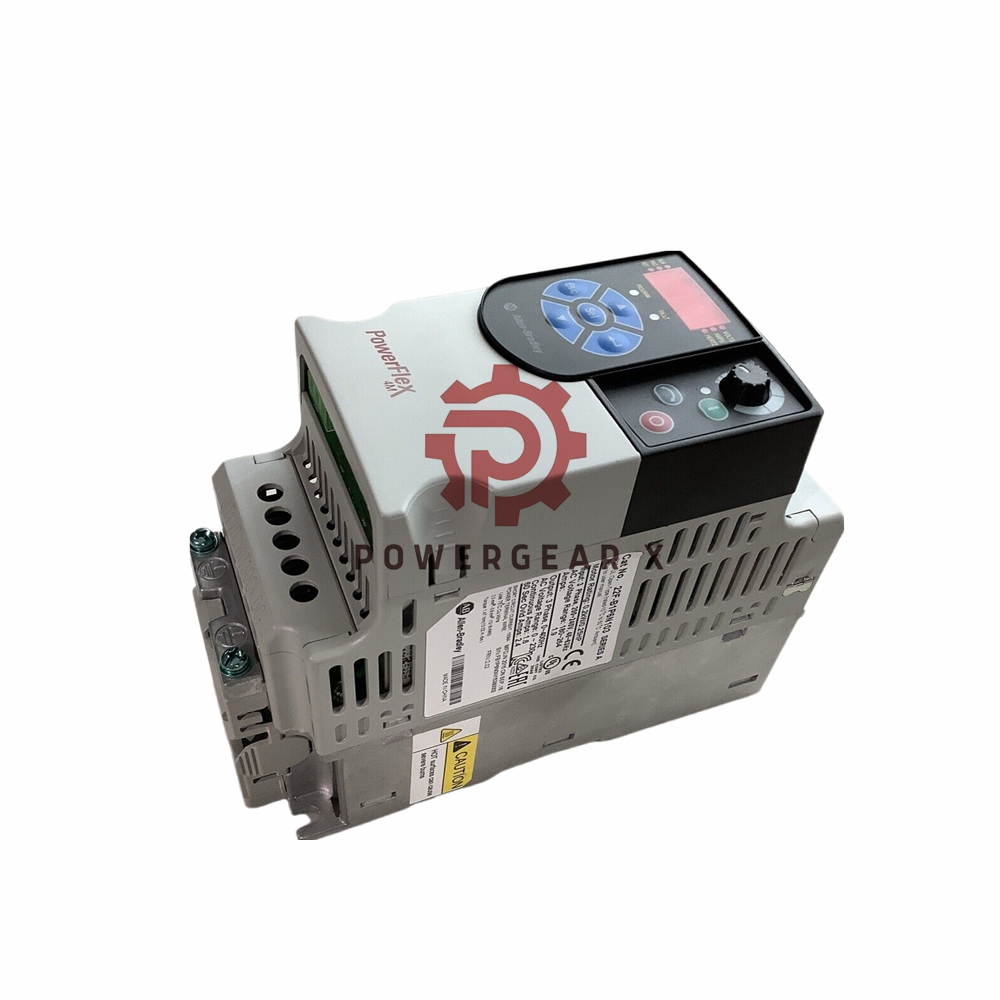

Allen-Bradley | 22F-D8P7N103 | Adjustable Frequency AC drive

Overview

The Allen-Bradley 22F-D8P7N103 PowerFlex 4M is a compact Variable Frequency Drive (VFD) from Rockwell Automation’s PowerFlex 4M series. Designed for panel mounting with an IP20 (Open) enclosure, this VFD provides smooth control of motors in industrial applications. It features an RS485 built-in communication port, with optional protocols like BacNet, LonWorks, ProfiBus, and Ethernet, making it a versatile choice for different communication needs.

With an output power of 3.7 kW (5.0 HP) and output current of 8.7 A, it offers excellent energy efficiency (97.5% typical) while ensuring consistent performance across various applications. This drive operates with a 480VAC, 3-phase input and can output a voltage range of 0-460VAC.

Key Features:

• Input Voltage: 340-528 VAC (3-phase)
• Output Voltage: 0-460 VAC
• Output Current: 8.7 A
• Output Power: 3.75 kW (5.0 HP)
• Efficiency: 97.5% (Typical)
• Built-in Communication Port: RS485
• Communication Protocols: BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, ControlNet
• I/O: 5 Discrete Inputs, 1 Analog Input (0-10VDC or 0-20mA)
• Mounting Type: Panel Mount
• Enclosure Rating: IP20, Open (NEMA Type)

Technical Specifications:

• Brand: Allen-Bradley
• Model: 22F-D8P7N103
• Drive Type: PowerFlex 4M
• Input Power: 480V AC, 3-phase
• Input Current: 8.3 A
• Amperage: 8.7 A
• Wattage: 3.7 kW (5.0 HP)
• Horsepower: 5 HP
• Frequency Range: 0-400 Hz (programmable)
• Enclosure Type: Open (IP20)
• Emission Class: Non-filtered (No CE compliant filter)
• HIM (Human Interface Module): Fixed Keypad

FAQ:

1. What is the input voltage range for the 22F-D8P7N103 PowerFlex 4M?
   • The input voltage range is 340-528 VAC (3-phase).
2. Can the 22F-D8P7N103 be used with single-phase power?
   • Yes, it can operate on single-phase power, but with 35% of the rated current.
3. Does the drive include a CE compliant filter?
   • No, the 22F-D8P7N103 does not include a CE compliant filter.
4. What is the maximum output frequency?
   • The drive can provide a programmable output frequency of up to 400 Hz.
5. Is the 22F-D8P7N103 suitable for use in outdoor environments?
   • The drive has an IP20 rating, meaning it is suitable for indoor use only. It is not weatherproof.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
