Allen-Bradley | 22F-V6P0N103 | AC Drive 120VAC 1PH

Overview

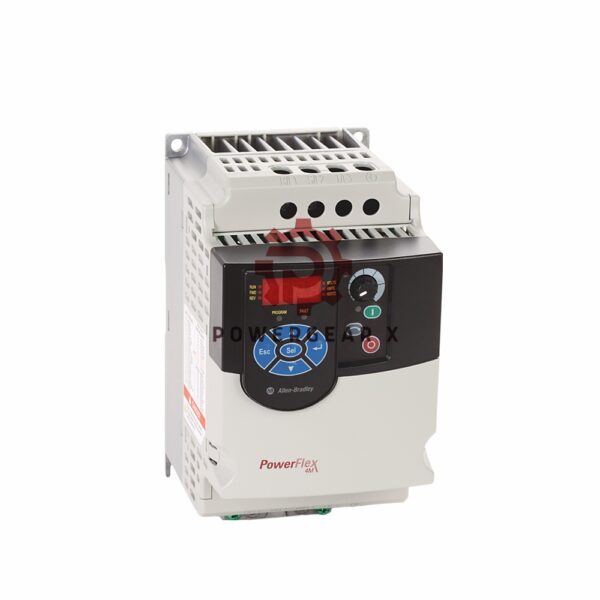

The Allen-Bradley 22F-V6P0N103 AC Drive is part of the PowerFlex 4M series, designed to control the speed and torque of variable speed motors in industrial PLC systems. With a compact design, this drive offers efficient performance for 1-phase input voltage systems, making it ideal for various motor control applications.

Features

• Input Power: 120V AC, 1-phase, 50/60 Hz
• Output Power: 1.1 kW (1.5 HP)
• Output Current: 6 A
• Enclosure: Open IP20, UL NEMA Type Open
• Mounting: Panel Mounting
• Integral Keypad: Yes
• No Brake or Filter Included
• Power Factor: 0.98

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Part Number: 22F-V6P0N103
• Series: PowerFlex 4M
• Model: 22F-V6P0N103
• Input Voltage: 120V AC
• Phase: 1-phase
• Horsepower: 1.5 HP (1.1 kW)
• Output Voltage: 0 to 230V AC, 3-phase
• Output Current: 6 A
• Enclosure Type: Open IP20
• Panel Mounting: Yes
• Filter: Without CE Compliant Filter
• Power Factor: 0.98

FAQ

Q: Does the drive have a brake or filter?
A: No, it does not include a brake or CE compliant filter.

Q: What is the input voltage requirement for the drive?
A: It operates with 120V AC input power, 1-phase, at 50/60 Hz.

Q: Can the drive be used with 3-phase motors?
A: Yes, the drive provides 0 to 230V AC 3-phase output, suitable for 3-phase motors.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
