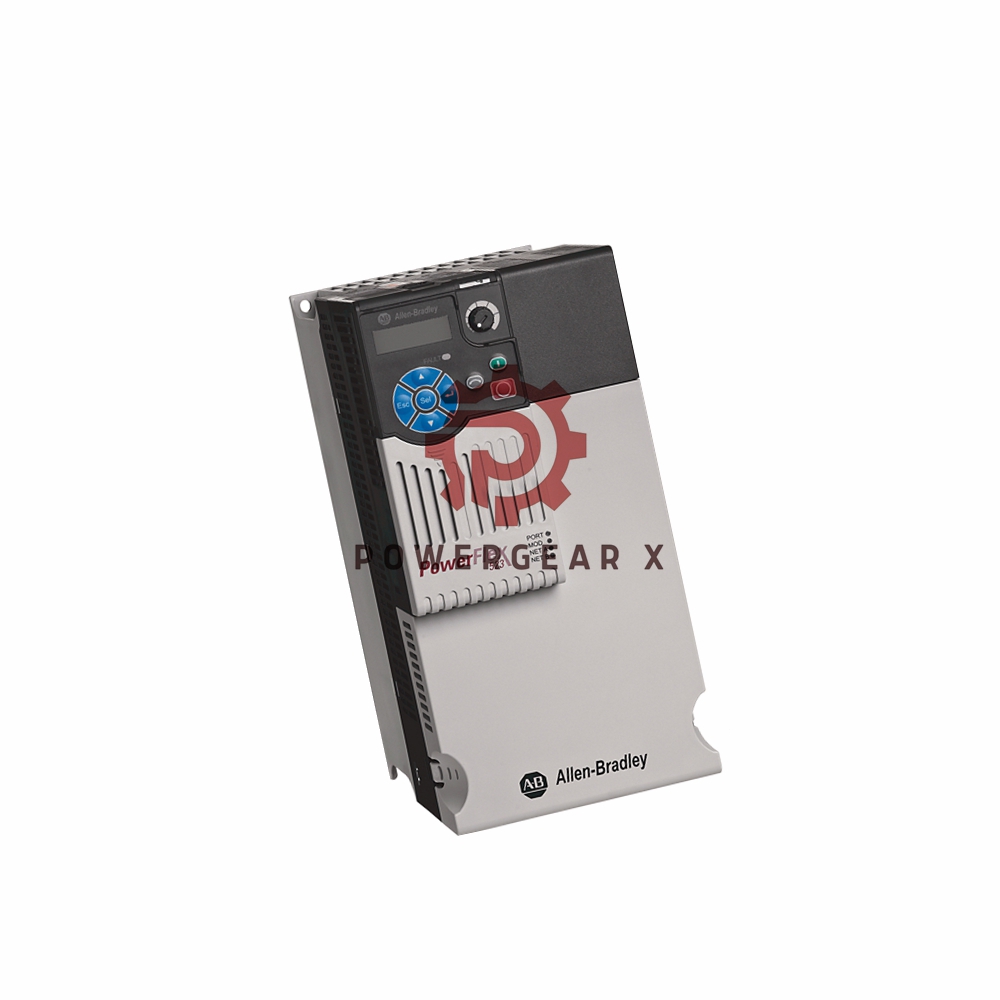

Allen-Bradley 25A-B032N104 PowerFlex 523 AC Drive

Overview

The Allen-Bradley PowerFlex 523 AC drive (25A-B032N104) is designed to offer efficient control for a variety of industrial applications. With an output power of 7.5 kW (10 HP) and a rated current of 32.2 A, this drive ensures reliable performance for both normal and heavy-duty operations. It is ideal for applications requiring adjustable frequency control, equipped with versatile communication capabilities and advanced control methods.

Key Features:

• Control Methods: Volts/Hertz and Sensorless Vector Control (SVC) for optimal motor performance.
• Communication Options: Built-in RS485, with optional ProfiBus, Ethernet, and DeviceNet communication protocols.
• Output Power: 7.5 kW (10 HP) with a maximum current rating of 32.2 A.
• I/O Capabilities:
  • 5 Discrete Inputs
  • 1 Discrete Output (Form C Contacts)
  • 1 Analog Input
  • 1 Analog Output
• Installation Type: Panel mount with an enclosure rating of IP20 / NEMA UL Open Type.
• Brand: Allen-Bradley by Rockwell Automation
• Frame Size: D
• Voltage Rating: 200-240VAC, 3-Phase input, 0-230VAC output.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 25A-B032N104
• Model: PowerFlex 523
• Rated Output Power: 7.5 kW (10 HP)
• Rated Current: 32.2 A
• Input Voltage: 200-240 VAC (3-Phase)
• Output Voltage: 0-230 VAC (3-Phase)
• Frame Size: D
• Control Method: Volts/Hertz; Sensorless Vector Control (SVC)
• Enclosure Rating: IP20 / NEMA UL Open Type
• I/O:
  • 5 Discrete Inputs
  • 1 Discrete Output (Form C Contacts)
  • 1 Analog Input
  • 1 Analog Output
• Communication: RS485 built-in, optional ProfiBus, Ethernet, DeviceNet
• Installation: Panel Mount
• Optional Filtering: No EMC Filtering
• Application: Ideal for motor control in industrial machinery, conveyors, pumps, and HVAC systems requiring variable speed control.

Frequently Asked Questions (FAQ):

1. What applications are the PowerFlex 523 suitable for?

• The PowerFlex 523 is used in industrial machinery, conveyor systems, HVAC, and other applications requiring adjustable speed control.

2. What are the communication options for this drive?

• The drive includes built-in RS485 communication and supports optional ProfiBus, Ethernet, and DeviceNet protocols.

3. What is the power output of the PowerFlex 523?

• The drive delivers 7.5 kW (10 HP) of output power, suitable for various industrial operations.

4. Is the drive easy to install?

• Yes, the PowerFlex 523 is designed for panel mounting, with an IP20 / NEMA UL Open Type enclosure for straightforward installation.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
