Product details
Overview

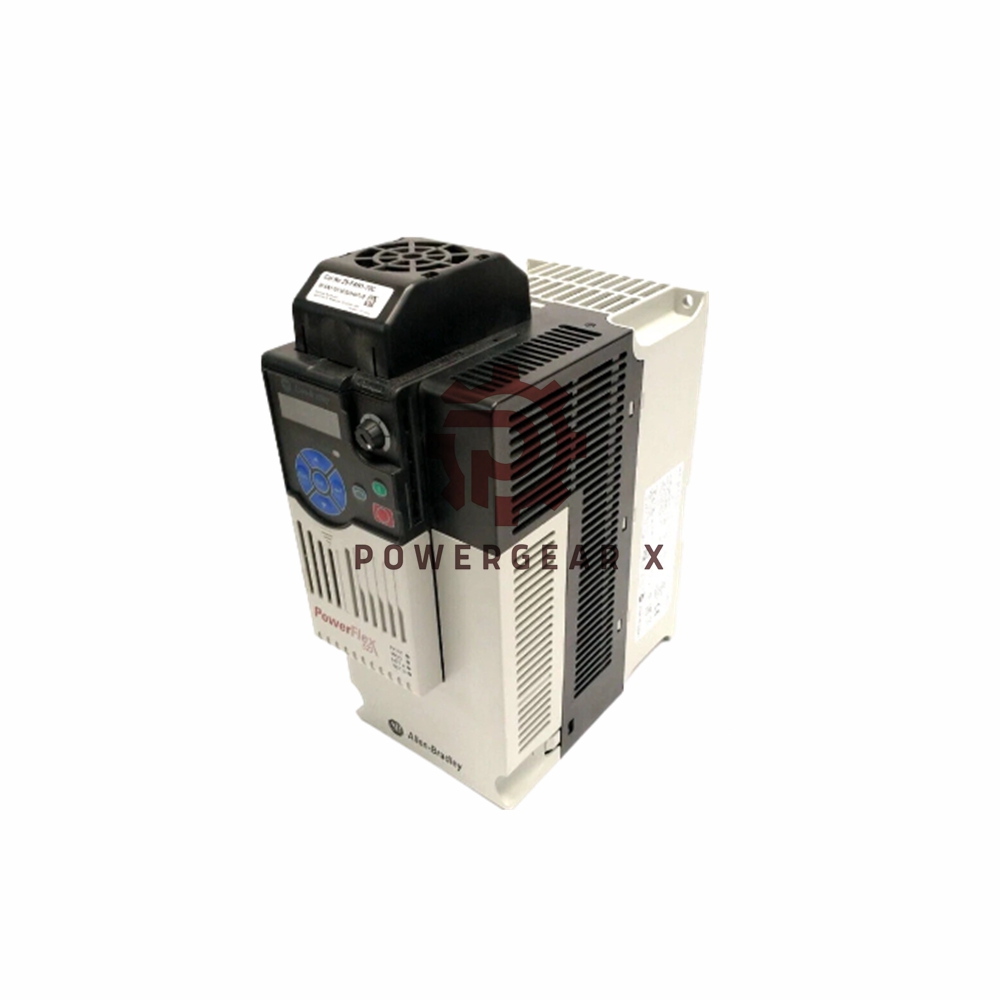

The 25A-D017N104 is an advanced PowerFlex 523 Adjustable Frequency AC Drive from Allen-Bradley, designed for a variety of industrial motor control applications. It is capable of efficiently controlling motor speed and torque, making it ideal for systems like conveyors, pumps, and material handling.
Key Specifications:
- Brand: Allen-Bradley
- Part Number: 25A-D017N104
- Manufacturer: Rockwell Automation / Allen-Bradley
- Series: PowerFlex 523
- Frame Size: Frame C
- Control Methods:
- Volts per Hertz (V/Hz)
- Sensorless Vector Control (SVC)
- Closed-loop velocity vector control
- Permanent Magnet motor control
- Input Voltage: 380-480 VAC, 3-Phase
- Output Voltage: 0-460 VAC
- Output Power: 7.5 kW or 10.0 HP
- Output Current: 17 A
- Programmable Output Frequency: 0-500 Hz
- I/O:
- Discrete Inputs: 5 Sink/Source
- Discrete Outputs: 1 N.O., 1 N.C. Contacts
- Analog Inputs: 2 (0-10VDC, 0-20mA)
- Analog Output: 1 (0-10VDC, 0-20mA)
- Control Features: Proportional + Integral + Derivative (PID) control
- Enclosure Type: IP20 / NEMA UL Type Open
- Installation: Panel Mount / DIN Rail
- Enclosure Rating: IP20 NEMA / Open Type
- Integrated Safety: Safe-Torque Off (STO) functionality
- Built-in Communication Port: RS485
- Zero Stacking: Supported
- EMC Filtering Option: No Filtering
Key Features:
- Energy Saving: The drive offers significant energy savings compared to traditional soft starters by lowering power consumption through programmable parameters.
- Control Methods:
- V/Hz Control: Best for applications requiring consistent speed regulation such as conveyors and material transfer.
- SVC Control: Ideal for applications requiring precise torque control across the full speed range, such as lifting and gripping actions.
- PID Control: The drive can independently regulate speed by using the built-in Proportional + Integral + Derivative (PID) control, maintaining precise performance based on setpoint parameters.
- Integrated Communication: Supports seamless integration with Programmable Automation Controllers (PAC) such as CompactLogix and ControlLogix using Studio 5000 Logix Designer for smooth parameter management and HMI/SCADA integration.
- Safety: The Safe-Torque Off (STO) function ensures safe operation by disabling torque when needed, enhancing system protection.
Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
