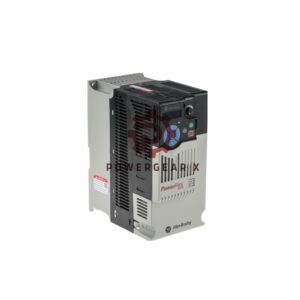

Allen-Bradley 25A-D024N104 PowerFlex 523 AC Drive 11kW 15Hp

Overview:

The Allen-Bradley PowerFlex 523 series drive, model 25A-D024N104, is a versatile 3-phase AC motor drive designed for precise control of motors in various industrial applications. With an input voltage range of 380 to 480 Volts AC and an output current capability of 24A, it supports motors up to 15 horsepower (11 KW). This drive is ideal for installations requiring efficient motor control, offering an IP20-rated enclosure suitable for indoor environments.

Features:

• Voltage Rating: 380-480V AC input, 0-460V AC output
• Current Output: 24 Amperes
• Power Rating: 15 HP (11 KW)
• Enclosure Type: IP20 NEMA, Open Type
• Frame Size: D (140.0 x 168.0 x 207.0 mm)
• Modular Design: Detachable power and control modules for serviceability
• I/O Options: Includes digital inputs, relay output, and analog inputs/outputs
• Communication Options: Supports Profibus DP, DeviceNet, RS485/DSI for integration with control systems
• Environmental Protection: IP20 for indoor use, withstands ambient temperatures up to 45°C
• Carrier Frequency: 2 to 16 KHz
• Motor Control Options: V/Hz, Sensorless Vector Control (SVC), Sinusoidal PWM

Technical Specifications:

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Model: PowerFlex 523, 25A-D024N104
• Input Voltage: 380 to 480V AC (3-Phase)
• Output Voltage: 0 to 460V AC (3-Phase)
• Output Current: 24 Amperes
• Power Rating: 15 HP (11 KW)
• Frame Size: D
• Enclosure Type: IP20 NEMA, Open Type
• Temperature Rating: Ambient temperature ≤ 45°C
• Carrier Frequency: 2 to 16 KHz
• I/O Configuration: 5 digital inputs, 1 relay output, 1 analog input (4-20mA or 0-10V), 1 analog output
• Communication Options: Profibus DP, DeviceNet, RS485/DSI

FAQ:

1. What is the input voltage range for the 25A-D024N104 drive?
2. The input voltage range is from 380V to 480V AC.
3. What is the output current capacity?
4. The drive can output up to 24A.
5. Can the drive be used in outdoor environments?
6. No, it is rated for indoor use only with an IP20 enclosure.
7. What are the communication options available?
8. The drive supports Profibus DP, DeviceNet, and RS485/DSI communication protocols.
9. How can the drive be configured?
10. The drive features the MainsFree™ configuration, allowing users to configure it via a standard USB port.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
