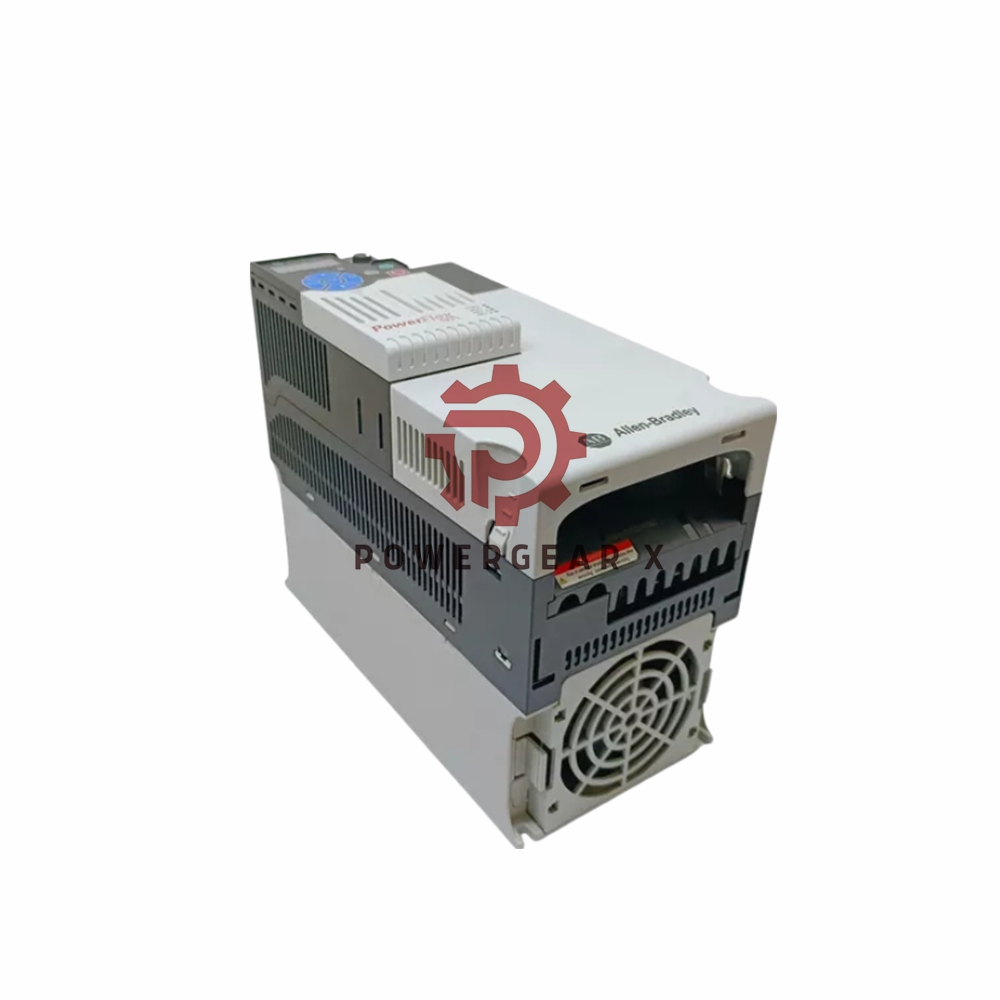

Allen-Bradley 25A-D030N104 AC Motor Drive 480V AC

Overview

The Allen-Bradley 25A-D030N104 is a robust 3-phase adjustable frequency drive (VFD) from the PowerFlex 523 series, designed for precise motor control applications. It is ideal for tasks requiring open-loop speed regulation and is compatible with several control methods, including Sensorless Vector Control (SVC) and Volts/Hertz (V/Hz) control. The drive operates within a voltage range of 323-528 VAC and offers a high output frequency of up to 500 Hz. It is equipped with a human interface module (HIM), built-in RS-485 communication port, and a variety of I/O options.

Key Features:

• Control Methods: Volts/Hertz control, Sensorless Vector Control, and Sensorless Vector Economizer.
• Integrated Safety: Safe-Torque Off (STO) functionality for enhanced safety.
• Interface Options: RS-485 communication, optional add-on cards for Ethernet I/P, ProfiBus, and DeviceNet.
• Frame and Mounting: D-frame with screw mounting, IP20 / NEMA Open Type enclosure.
• Compatibility: Works seamlessly with CompactLogix, GuardLogix, and ControlLogix controllers.
• Display and Configuration: 5-digit LCD, standard HIM with multi-language support, remote keypad for setup and troubleshooting.

Technical Specifications:

• Brand: Allen-Bradley
• Model: 25A-D030N104
• Output Current: 30 A
• Voltage Input: 323-528 VAC (3-Phase)
• Voltage Output: 0-460 VAC (3-Phase)
• Output Power: 20.0 HP (15.0 kW) Normal Duty; 15.0 HP (11.0 kW) Heavy Duty
• Frame Size: D
• Frequency Range: 0-500 Hz (Max Output Frequency)
• Enclosure: IP20, NEMA Open Type
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 85°C
• Control Protocol: Modbus RTU, Drive Serial Interface (DSI)

FAQs:

1. What controllers are compatible with the 25A-D030N104?
   • It is compatible with CompactLogix, GuardLogix, and ControlLogix controllers.
2. Does the 25A-D030N104 support remote configuration?
   • Yes, it supports MainsFree programming via a built-in USB port for remote configuration.
3. What safety features are integrated?
   • The drive includes Safe-Torque Off (STO) functionality for improved safety.
4. Can additional communication protocols be added?
   • Yes, the drive supports add-on cards such as Ethernet I/P, ProfiBus, and DeviceNet.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
