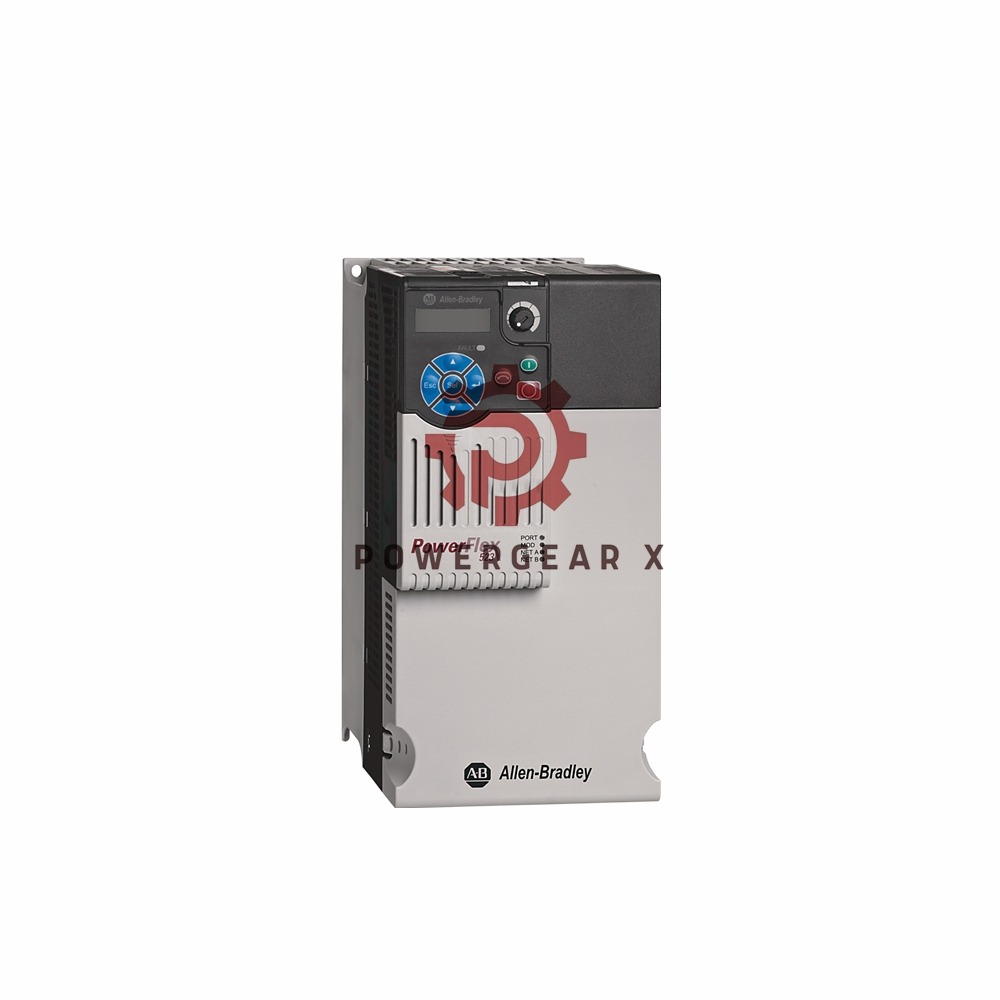

Allen-Bradley 25A-E027N104 PowerFlex 523 AC Drive 600 VAC

Overview

The Allen-Bradley PowerFlex 523 AC Drive (Model: 25A-E027N104) is a versatile and efficient solution for motor control applications. Designed for 600 VAC, 3-phase systems, it offers robust performance for both normal and heavy-duty operations. This drive is part of the trusted PowerFlex 520 series, known for its adaptability and advanced motor control capabilities.

Features

• Wide Voltage Range: Operates with a 600 VAC input, ensuring compatibility with various industrial applications.
• Compact Frame: Frame E design allows for easy panel mounting, saving space in control cabinets.
• Versatile Control: Supports both Normal Duty (25 HP, 18.5 kW) and Heavy Duty (20 HP, 15 kW) applications.
• Built-In Brake Transistor: The 7th IGBT brake ensures enhanced deceleration and improved motor control.
• Environment Ready: IP20/NEMA Open Type rating provides adequate protection in controlled environments.
• Simplified Setup: User-friendly interface reduces commissioning time and simplifies parameter adjustments.

Technical Specifications

• Brand: Allen-Bradley
• Model: 25A-E027N104
• Voltage Class: 600 VAC, 3-phase input
• Output Current: 27 Amps
• Power Ratings:
  • Normal Duty: 18.5 kW (25 HP)
  • Heavy Duty: 15 kW (20 HP)
• Frame Size: E
• Protection Rating: IP20, NEMA Open Type
• Suffix Explanation:
  • 25A: PowerFlex series identifier
  • E027: 27 Amp output rating
  • N104: 600 VAC input voltage with standard configuration

Applications

• Industrial Automation: Efficiently controls pumps, fans, and conveyors in manufacturing.
• HVAC Systems: Regulates motor speed for energy savings in heating, ventilation, and air conditioning.
• Material Handling: Enhances precision in belt and chain drive systems.
• Water and Wastewater: Optimizes pumping systems to reduce energy consumption.

FAQ

1. What does the 7th IGBT brake refer to?
It is an integrated brake transistor that enhances motor deceleration and overall control.

2. Can this drive be used for single-phase systems?
No, the 25A-E027N104 is designed for 3-phase input systems only.

3. Is a built-in EMC filter included?
This model does not include an integrated EMC filter, ensuring flexibility in installations.

4. What environments is the IP20/NEMA Open Type rating suitable for?
It is designed for use in clean, controlled environments without exposure to dust or moisture.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
