Product details
Overview:

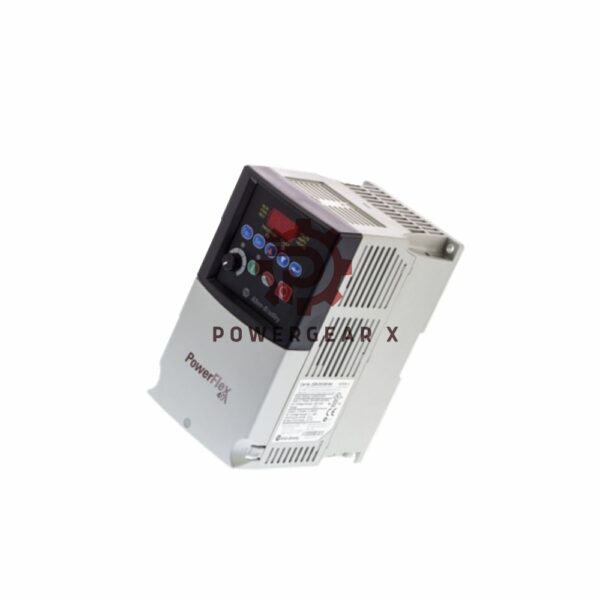

The Allen-Bradley PowerFlex 523 series drive, part number 25A-E1P7N104, is an adjustable frequency drive designed for controlling the speed and torque of variable speed motors in industrial applications. Offering robust functionality and modular flexibility, this unit is ideal for a range of control needs, with its high efficiency and seamless installation process.
Features:
- Modular Design: Features a removable control module for ease of installation and configuration.
- Built-in Safety: Includes a Safe Torque-Off feature to ensure personnel safety.
- Programming: Supports fast uploads and downloads of configuration files via USB.
- Flexible Control: Offers extensive control options, including energy-efficient motor control and positioning.
- LCD HMI: Multi-language support for easy setup and operation.
- Automatic Device Configuration: Simplifies setup for a wide range of applications.
- Zero Stacking: Optimizes space and installation flexibility.
- EtherNet/IP Adapter: Dual-port adapter option for network communication.
Technical Specifications:
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Part Number: 25A-E1P7N104
- Series: PowerFlex 523
- Voltage: 3-phase, 600 VAC
- Output Current: 1.7 Amperes
- Frame Size: Frame A
- Enclosure Type: IP20, NEMA open type
- Power Output: 1 Horsepower (1 HP)
- EMC Filtering: None (No filtering)
- Control Features: Integral PID, PointStop motor feature
- Application: Used in variable speed motor control for industrial applications
- Input Voltage Range: 525-600 VAC
- Output Voltage Range: 0-575 VAC
Application:
This drive is suitable for applications where adjustable speed control and motor protection are necessary, including industrial automation systems and machinery requiring precise speed and torque regulation.
FAQ:
- Q: Does the 25A-E1P7N104 have an EMC filter?
- A: No, the 25A-E1P7N104 does not include an EMC filter.
- Q: What is the maximum horsepower output of the drive?
- A: The drive provides a maximum output of 1 horsepower.
- Q: Can the drive be used for high-voltage systems?
- A: Yes, it operates with 3-phase 600 VAC voltage systems.
Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
