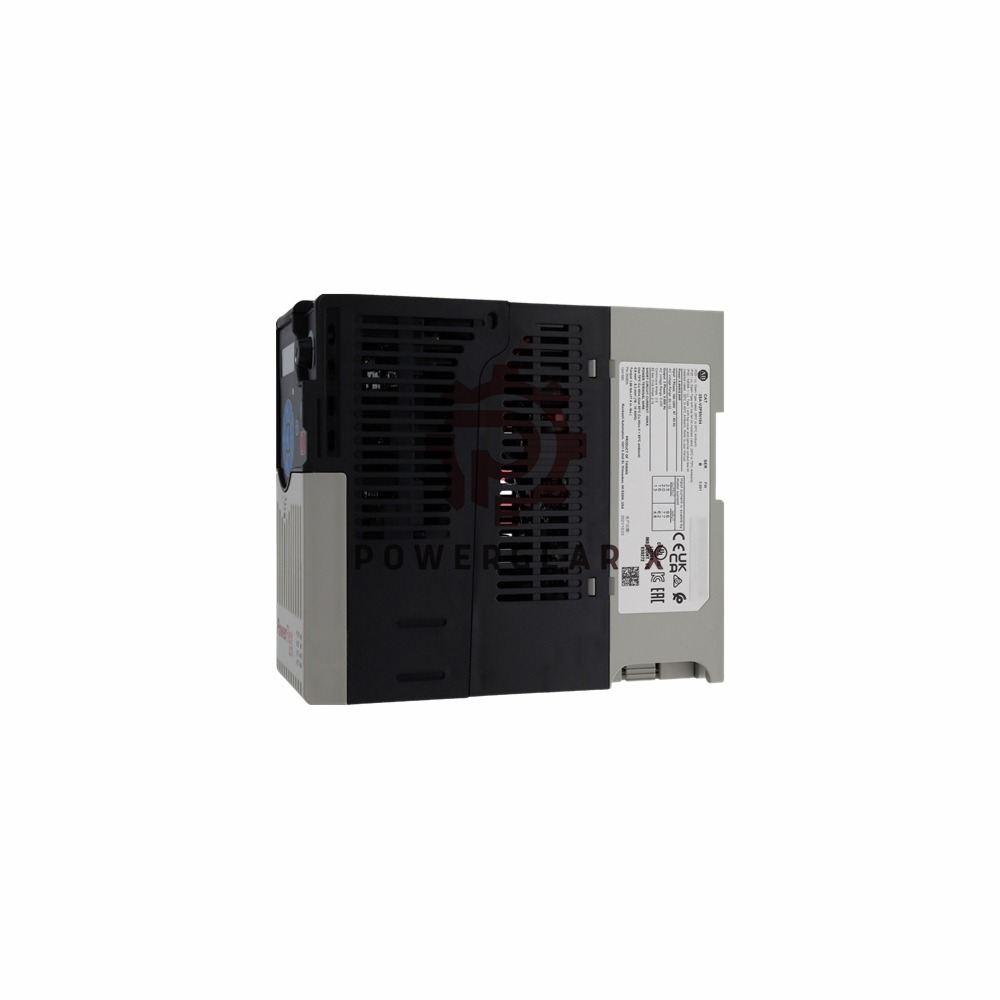

Allen-Bradley 25A-V2P5N104 PowerFlex 523 AC Drive 120 VAC

Overview

The Allen-Bradley 25A-V2P5N104 PowerFlex 523 Variable Frequency Drive (VFD) is a compact and versatile device designed for controlling industrial AC motors. Ideal for speed and torque control applications, it also enhances energy efficiency in various systems. With its robust construction and reliable performance, this drive is suited for open-loop speed regulation and general-purpose motor control tasks.

Features

• Voltage Range: Operates on 1-phase input (120 VAC) and provides 3-phase output (0-230 VAC).
• Control Methods: Supports Volts/Hertz, Sensorless Vector Control, and Sensorless Vector Economizer for precise motor performance.
• Integrated I/O: Features 5 programmable digital inputs, 1 Form C relay output, 1 analog input, and 1 analog output.
• Human Interface Module (HIM): Equipped with a 5-digit LCD for real-time data, multi-language support, and speed potentiometer control.
• Connectivity: Includes a USB port for MainsFree configuration and an RS485 communication port for integration.
• Safety: Built-in Safe-Torque Off (STO) functionality ensures secure operation.

Technical Specifications

• Brand: Allen-Bradley
• Model: 25A-V2P5N104
  • Suffix “V2P5”: Indicates 2.5A output current capability.
  • “N104”: Specifies no EMC filtering and frame size A.
• Output Power: 0.5 HP (0.4 kW) for both normal and heavy-duty use.
• Output Current: 2.5 A.
• Input Voltage: 1-phase, 100-120 VAC.
• Output Voltage: 3-phase, 0-230 VAC.
• Enclosure: IP20 / NEMA UL Open Type.
• Frame Size: A.
• Operating Temperature: -20°C to 50°C.
• Altitude: Operates effectively up to 1000 m (3280 ft).
• Maximum Frequency: 500 Hz.

Applications

• Industrial motor speed control and torque regulation.
• Energy-efficient motor operations in HVAC systems, conveyors, and material handling.
• Integration with PACs like CompactLogix and ControlLogix for automated workflows.
• Enhanced monitoring through HMI or SCADA systems in industrial setups.

FAQ

1. What is the primary function of the 25A-V2P5N104?
It controls the speed and torque of AC motors while improving energy efficiency.

2. Does it support local configuration?
Yes, it comes with a built-in Human Interface Module (HIM) for local operation and configuration.

3. Can it integrate with automation controllers?
Absolutely! It supports integration with CompactLogix and ControlLogix controllers using built-in PAC instructions.

4. What is the operating voltage range?
The drive operates on 1-phase input voltage of 100-120 VAC and outputs 3-phase voltage from 0-230 VAC.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
