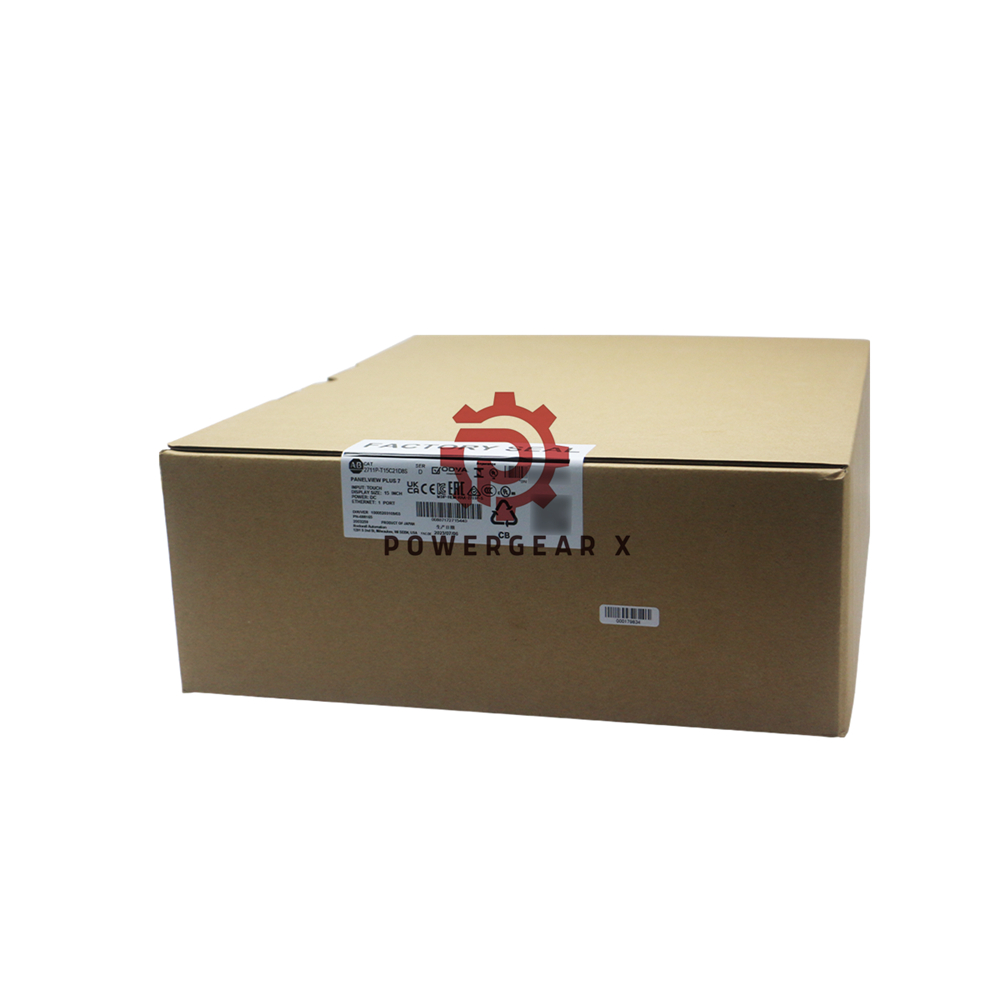

Allen-Bradley 2711P-T15C21D8S PanelView Plus

Overview

The Allen-Bradley 2711P-T15C21D8S is a versatile PanelView Plus 7 Standard terminal designed to facilitate real-time operator interaction with industrial processes. Specifically, this terminal features a 15-inch color Thin-Film-Transistor (TFT) display that offers a resolution of 1024 x 768 XGA and an aspect ratio of 4:3. Additionally, it includes an integrated analog resistive touchscreen interface, enabling intuitive user inputs. With robust communication capabilities and optimal power requirements, this terminal is ideal for various industrial applications.

Technical Specifications

• Brand: Allen-Bradley
• Model: 2711P-T15C21D8S
• Display Size: 15 inches
• Display Type: Color active-matrix TFT
• Resolution: 1024 x 768 XGA (18-bit)
• Viewing Area: 304 x 228 mm
• Touch Technology: Analog resistive
• Operating Force: 100 grams
• Touch Actuation Lifespan: 1 million presses
• System Memory: 512 MB RAM, 512 MB nonvolatile
• Communication Ports:
  • 1 Ethernet port
  • 2 USB host ports
• Input Voltage Range: 18-30 VDC
• Power Consumption: 50 W max (2.1 A at 24V DC)
• Weight: 8.14 lbs (3.07 kg)
• Dimensions: 318 x 381 x 56.5 mm
• Operating Temperature Range: 0-55 °C (32-131 °F)

FAQ

• Q1: What is the lifespan of the backlight?
  The backlight has a minimum lifespan of 50,000 hours at 40 °C.
• Q2: Can I expand the memory?
  Yes, the terminal features a secure digital (SD) card slot for memory expansion.
• Q3: What kind of touchscreen technology is used?
  The terminal employs an analog resistive touchscreen, which requires an operating force of 100 grams.

For more detailed information, please check official datasheet:PanelView Plus ControlNet Communication Module
