Product details
Overview

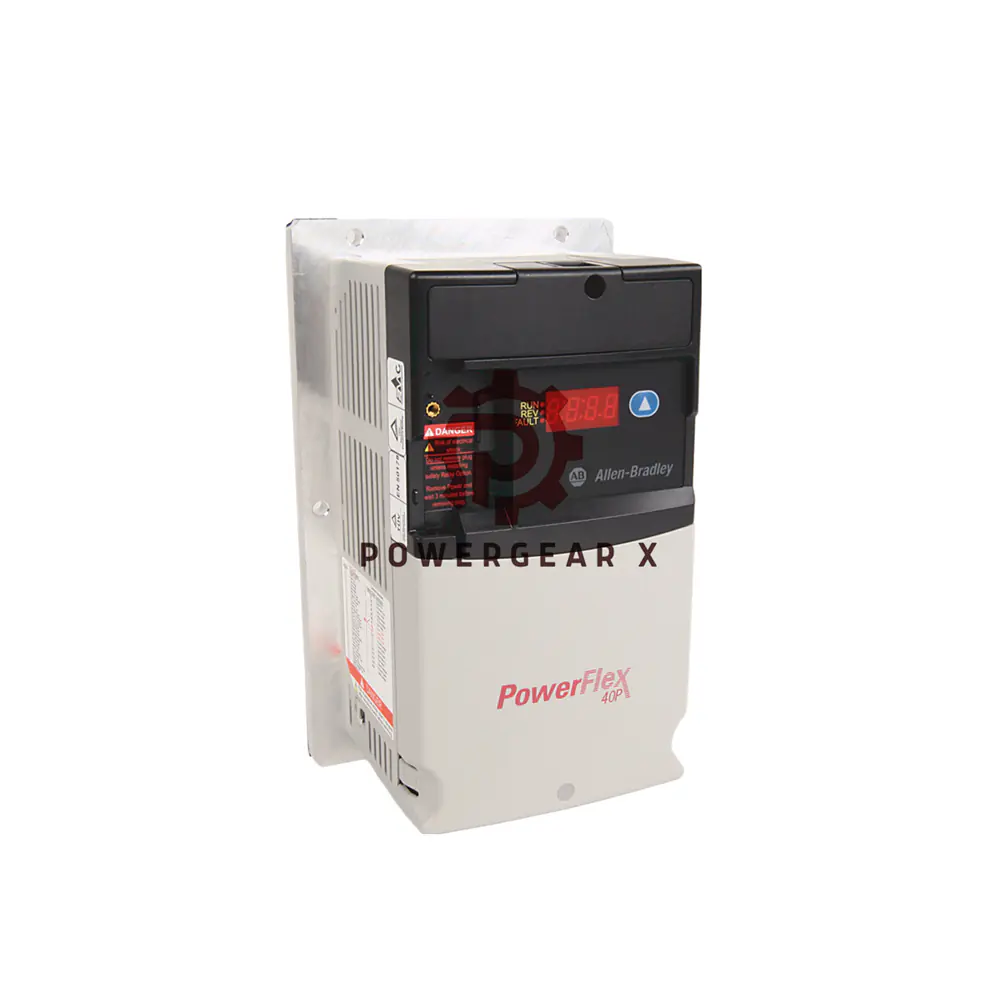

The Allen-Bradley PowerFlex 40P AC Drive (Part Number: 22D-D012H204) is a high-performance adjustable frequency drive designed for industrial applications. With a 480V AC, 3-phase input and 7.5 HP output, it provides excellent control over motor speeds, ensuring efficiency and precision in various automation settings. Its compact, IP20-rated open-frame design is ideal for space-constrained environments. The 22D-D012H204 is an energy-efficient solution that offers robust features, including easy setup and control, making it a reliable choice for operations requiring a flexible drive system.
Technical Specifications
- Brand: Allen-Bradley
- Model: 22D-D012H204
- Series: PowerFlex 40P
- Input Voltage: 480 Volts AC
- Current Output: 12.0 Amps
- Output Power: 7.5 HP (5.5 kW)
- Phase: Three-phase
- Enclosure Type: Open NEMA Type, Plate Mount (IP20)
- Frame Size: C
- Frequency: 50-60 Hz
- Filter: No CE Compliant Filter
- Features: Human Interface Module (HMI) with Fault Reset Only
- Power Dissipation: 175 Watts
- Safety Features: DriveGuard Safe Torque-off
- Protection: 25 fuses for branch circuit protection
- Minimum Enclosure Volume: 2069 cubic inches
- Amperage: 12 Amps
FAQ
- What is the voltage rating of the 22D-D012H204 drive?
It operates at 480V AC, three-phase. - Is a filter included with this drive?
No, the 22D-D012H204 does not include a CE compliant filter. - What is the maximum output power of this drive?
The drive delivers 7.5 HP (5.5 kW) of output power.
Check official datasheet for more detailed information: PowerFlex 40P
