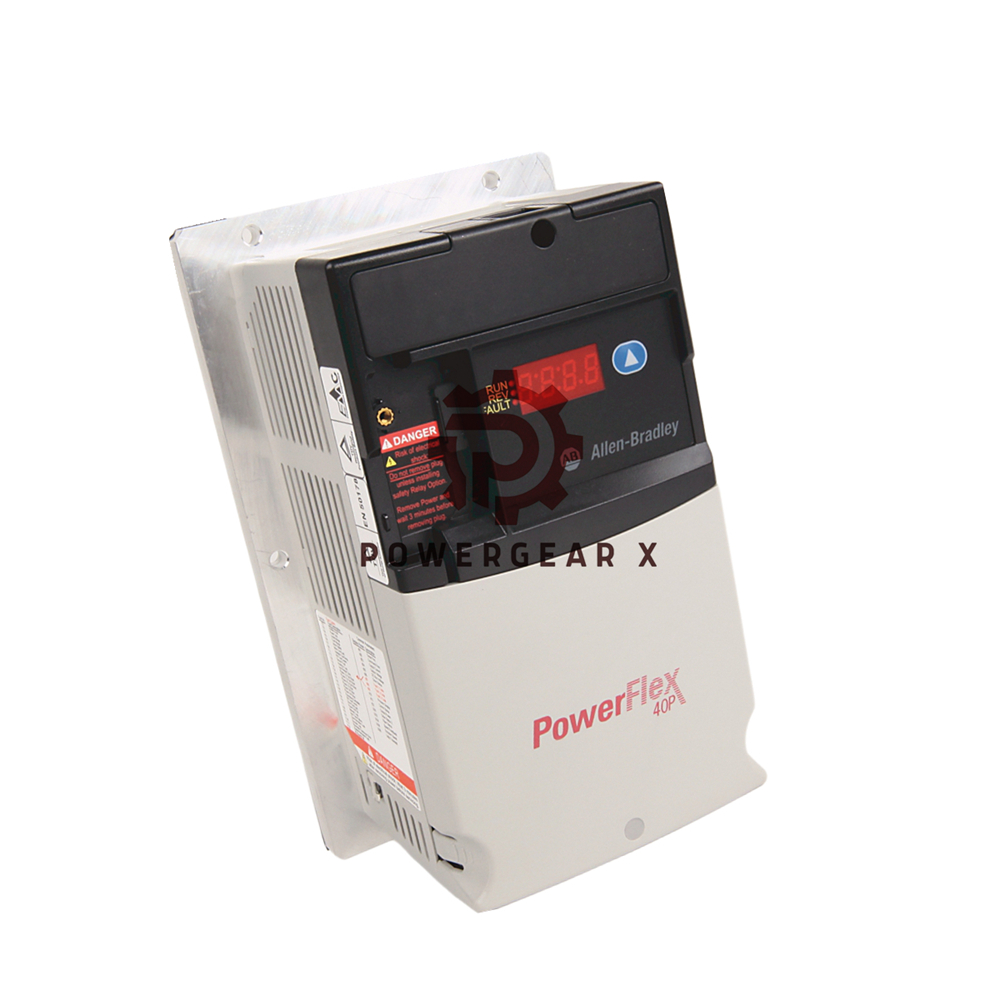

Allen-Bradley AC Drive | 22D-D012N104 480V AC PowerFlex 40P

Overview:

The Allen-Bradley 22D-D012N104 PowerFlex 40P AC Drive is designed for versatile and efficient motor control in industrial applications. This adjustable frequency drive operates on a 480VAC 3-phase power supply, providing reliable performance for motors up to 7.5 HP (5.5 kW). It is built with a Size C frame and an open-panel, IP20 enclosure, making it ideal for integration into control panels. The unit does not include a CE-compliant filter, and its compact size makes it suitable for space-conscious environments.

Technical Specifications:

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Model: 22D-D012N104
• Product Line: PowerFlex 40P
• Phase: Three-Phase
• Input Power: 480 Volts AC
• Amperage: 12 Amps
• Horsepower: 7.5 HP (5.5 kW)
• Frame Size: C
• Enclosure: NEMA Type Open (IP20) – Panel Mount
• Filter: No CE Compliant Filter
• Type: Standard

FAQ:

• What is the maximum output power?
  • The PowerFlex 40P drive supports up to 7.5 HP (5.5 kW) of output power.
• Does it come with a CE-compliant filter?
  • No, the 22D-D012N104 model does not include a CE-compliant filter.
• What is the input voltage?
  • The drive operates with an input voltage of 480VAC, 3-phase.

Check official datasheet for more detailed information: PowerFlex 40P
