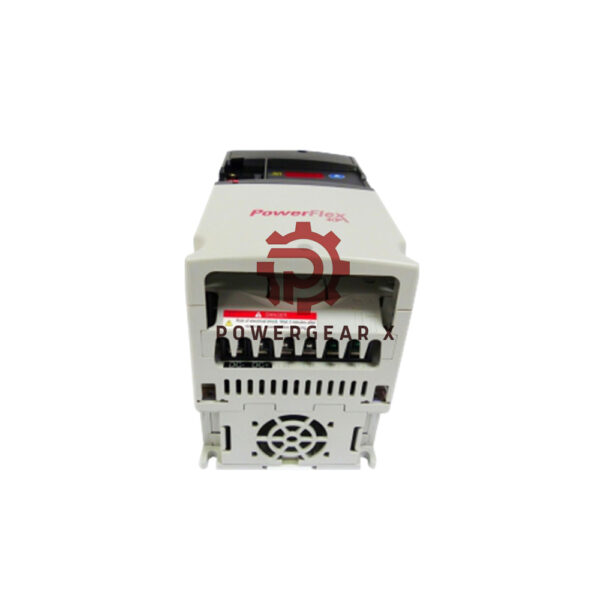

Allen-Bradley | AC Drive PowerFlex 40P 22D-B5P0N104

Overview

The Allen-Bradley PowerFlex 40P 22D-B5P0N104 is a versatile 3-phase adjustable frequency drive ideal for various industrial applications. With its compact design, it delivers reliable motor control, offering a cost-effective solution for managing motor speed and performance. Designed by Rockwell Automation, this drive boasts several advanced protection features that ensure optimal motor life and efficient performance.

Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Model: 22D-B5P0N104
• Product Line: PowerFlex 40P
• Frame Size: B
• Input Voltage: 240V AC (3-phase)
• Output Power: 1 HP (0.75 kW)
• Amperage: 5.0 A
• Enclosure: Open NEMA Type (IP20)
• Frequency Range: 50-60 Hz
• Efficiency: 97.5%
• Power Dissipation: 60 Watts
• Control Method: Sensorless Vector, Sinusoidal PWM
• Features: No CE compliant filter, various stop modes, and 6kV transient protection.

FAQ

• Q: What is the maximum horsepower the 22D-B5P0N104 can support?
  A: It supports up to 1 HP or 0.75 kW.
• Q: Does the drive come with a filter?
  A: No, it does not have a CE compliant filter.
• Q: What is the input voltage range for this drive?
  A: It operates on a 240V AC, 3-phase input power supply.

Check official datasheet for more detailed information: PowerFlex 40P
