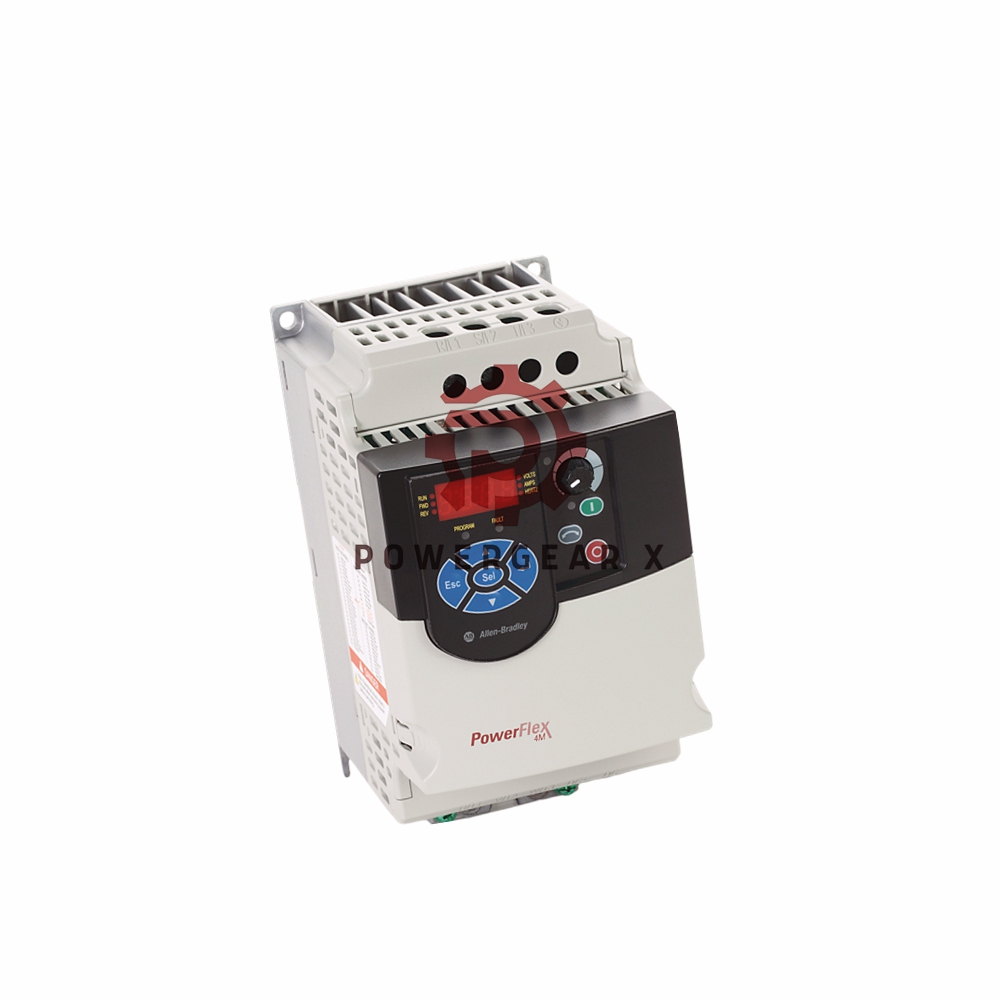

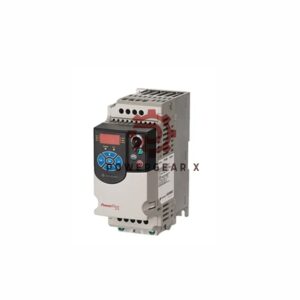

Allen-Bradley PowerFlex 4M 22F-A8P0N113 Inverter Drive, 1.5 kW

Overview

The Allen-Bradley 22F-A8P0N113 is a PowerFlex 4M Adjustable Frequency AC Drive designed for efficient motor control. With a compact design and robust functionality, this drive is suitable for various industrial applications requiring adjustable speed control. Its built-in features like a fixed keypad Human Interface Module (HIM), internal EMC filter, and RS485 communication port make it user-friendly and versatile.

Features

1. Input Voltage and Phase: Operates on a 200-240 VAC, single-phase input.
2. Output: Delivers a 0-230 VAC, 3-phase output with an 8.0 Ampere current.
3. Power Rating: Provides 2.0 HP (1.5 kW) output power.
4. Frame Size: A-frame compact design for space-saving installation.
5. Enclosure Type: Open IP20 (NEMA compliant).
6. Integrated EMC Filter: CE-compliant for reduced electrical interference.
7. Interface Module: Equipped with a built-in fixed keypad HIM for easy configuration.
8. Control Method: Supports V/Hz control for reliable performance.
9. Communication: RS485 port for connectivity and integration.
10. Inputs/Outputs: Includes 5 discrete 24 VDC inputs, 2 analog inputs, and 2 relay outputs.

Technical Specifications

• Brand/Manufacturer: Allen-Bradley / Rockwell Automation
• Product Line: PowerFlex 4M Series
• Model: 22F-A8P0N113
• Input Voltage: 200-240 VAC
• Input Phase: Single-phase
• Output Voltage: 0-230 VAC, 3-phase
• Output Current: 8.0 A
• Power Rating: 2.0 HP / 1.5 kW
• Enclosure: IP20, Open-Type
• Discrete Inputs: Five (5) 24 VDC
• Analog Inputs: Two (2)
• Relay Outputs: Two (2) Form C
• Control Method: V/Hz Control
• Communication Ports: RS485
• EMC Filter: Internal, CE-compliant
• Braking: Non-installed (no IGBT brake)
• Frame: A

FAQ

Q1: Can this drive control three-phase motors with a single-phase input?
Yes, it supports single-phase input and provides three-phase output for motor operation.

Q2: Does it include an internal braking resistor?
No, the 22F-A8P0N113 does not have an internal braking resistor installed.

Q3: Is this drive CE-compliant?
Yes, it includes an internal EMC filter that meets CE compliance standards.

Q4: What type of control method does it use?
It utilizes V/Hz control for stable motor performance.

Q5: Can it be integrated into an industrial network?
Yes, it features an RS485 communication port for network integration.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
