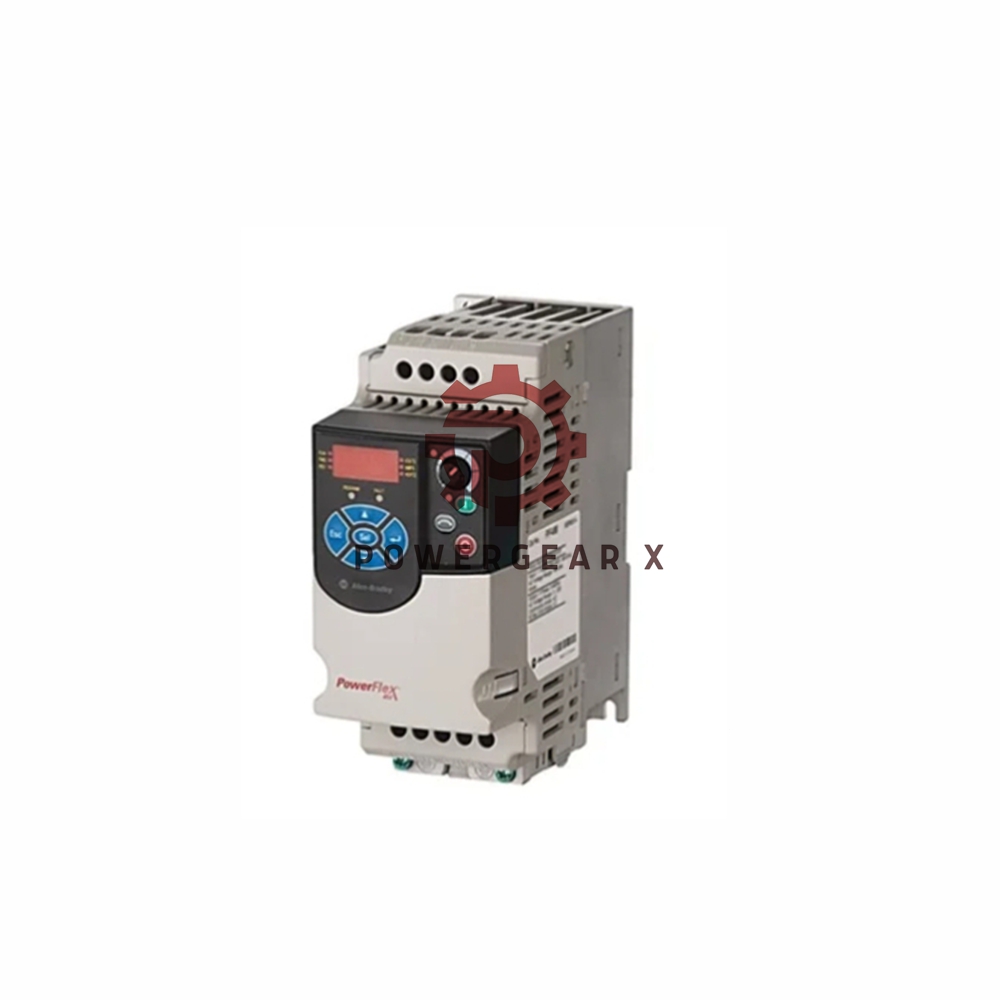

Allen-Bradley PowerFlex 4M 22F-B012N103 2 HP AC Drive

Overview

The PowerFlex 4M AC Drive 22F-B012N103 is a compact, cost-effective solution designed to deliver efficient motor control in industrial environments. Suitable for 3-phase 240V (208V) systems, it features a robust IP20 enclosure and a user-friendly LED display with a fixed digital keypad for seamless operation.

Key Features

• Compact Design: Frame Size B ensures easy installation in tight spaces.
• Efficient Performance: Supports motors up to 3 HP (2.2 kW) with a maximum output current of 12 Amps.
• User Interface: Fixed digital keypad with LED display for straightforward operation and monitoring.
• Durable Enclosure: IP20 open style protects against dust and accidental contact.
• Flexible Applications: Compatible with various industrial setups lacking a CE-compliant filter or brake drive.

Technical Specifications

• Brand: Allen-Bradley
• Model: PowerFlex 4M
• Input Voltage: 240V (208V), 3-phase
• Output Current: 12 Amps
• Power Rating: 2.2 kW (3 HP)
• Enclosure Style: IP20 (Open)
• Human Interface Module: LED display with fixed digital keypad
• EMC Filtering: No CE-compliant filter installed
• Internal Communication: No brake drive module

Applications

The PowerFlex 4M AC Drive is ideal for a range of industrial applications, including:

• Conveyor systems
• Packaging machines
• Fan and pump operations
• Material handling equipment
  Its compact design and reliable performance make it suitable for OEMs and system integrators.

FAQs

1. What is the maximum supported motor size for this drive?
   • The drive supports motors up to 3 HP (2.2 kW).
2. Does this model include a CE-compliant EMC filter?
   • No, this model does not include a CE-compliant filter.
3. What type of keypad is provided?
   • It features a fixed digital keypad with an LED display for easy operation.
4. Can this drive operate in dusty environments?
   • It has an IP20 rating, suitable for controlled environments without excessive dust or moisture.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
