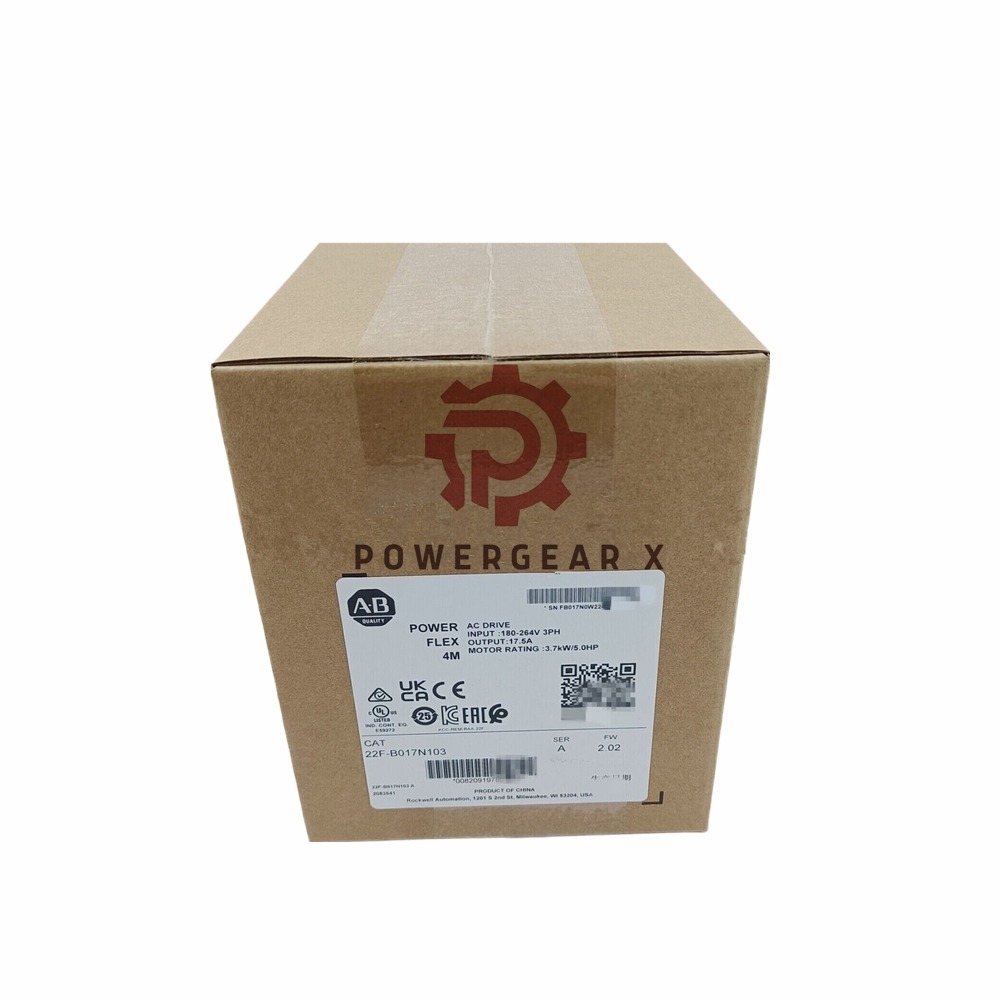

The Allen-Bradley 22F-B017N103 PowerFlex 4M AC drive is a robust solution for variable frequency drive applications. Designed to deliver efficient motor control, it operates on a 3-phase 240V AC supply at 50/60 Hz and supports applications up to 5 HP (3.7 kW). This drive features a user-friendly fixed digital keypad and a compact, open-frame IP20 enclosure for easy installation in controlled environments.
Features
- Compact Design: IP20-rated open enclosure for controlled indoor environments.
- User-Friendly Control: Integrated fixed digital keypad for simple operation.
- Powerful Performance: Rated for 17 Amps, 5 HP (3.7 kW) output.
- Wide Voltage Compatibility: Operates on 208-240V AC, 3-phase input.
- No CE Filter: Does not include a CE-compliant filter for applications without stringent EMC requirements.
- LED Display: Clear and concise display for monitoring parameters.
Technical Specifications
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Model Number: 22F-B017N103
- Product Line: PowerFlex 4M
- Amperage: 17 Amps
- Output Power: 5 HP (3.7 kW)
- Input Voltage: 208-240V AC, 50/60 Hz
- Enclosure: IP20 (Open Frame)
- Filter: Without CE-compliant filter
- Phase: 3-phase
- Suffix Breakdown:
- 22F: PowerFlex 4M product line
- B017: Indicates 17 Amp rating
- N103: Specifies features like filter absence and frame size
Applications
- Industrial motor control for conveyors, fans, and pumps.
- HVAC systems requiring precise speed regulation.
- General-purpose machinery requiring reliable AC motor control.
- Scenarios where an open-frame drive is suitable for installation.
FAQs
Q1: Does this model come with a braking resistor?
A1: No, the 22F-B017N103 does not include a brake drive or braking resistor.
Q2: Is it suitable for outdoor use?
A2: No, the IP20 enclosure is designed for indoor environments.
Q3: Can this drive support single-phase input?
A3: No, it is compatible only with a 3-phase input supply.
Q4: Is the CE-compliant filter mandatory for operation?
A4: Not for all applications; it is excluded in this model for non-EMC critical environments.
Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
