Product details
Overview

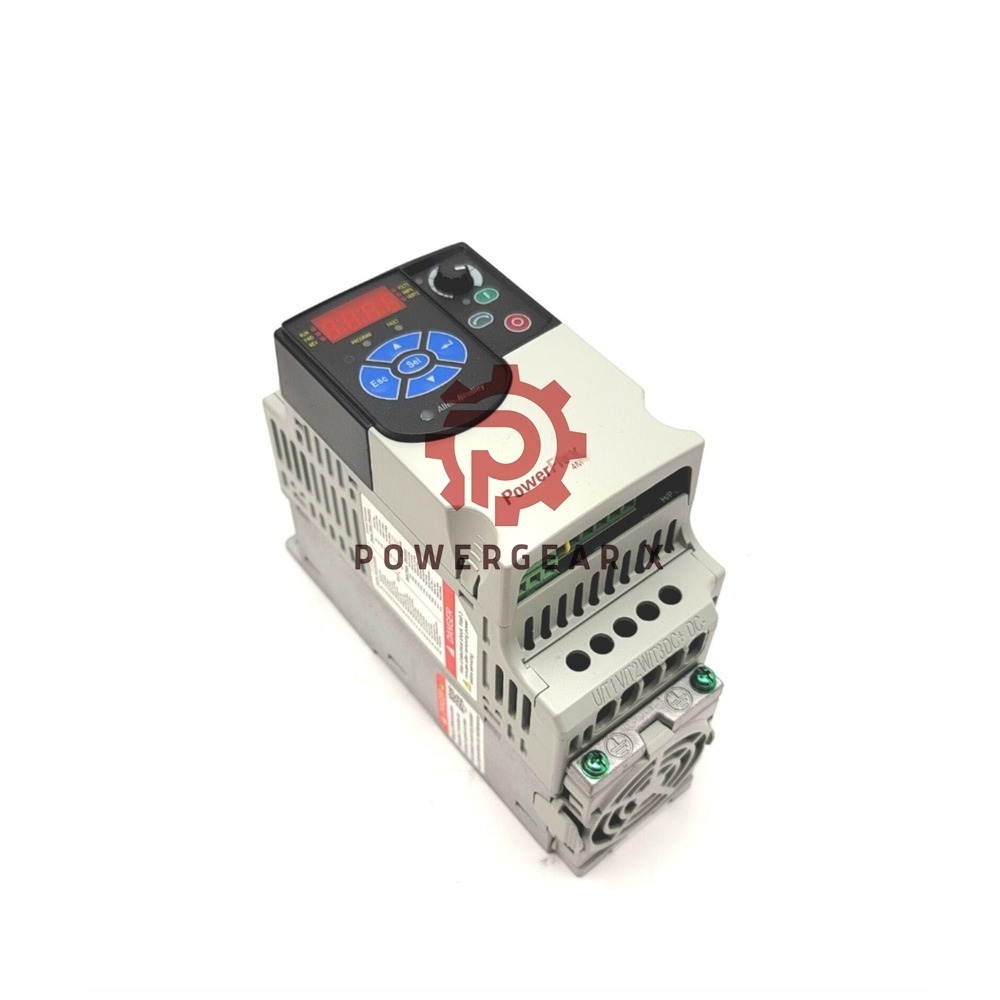

The Allen-Bradley 22F-D4P2N103 is a versatile PowerFlex 4M Adjustable Frequency AC Drive designed for precision motor control in industrial applications. With a power output of 1.5 kW (2 HP) and compatibility with 3-phase 380-480VAC input, this drive supports efficient operations across a broad frequency range. Its compact Frame Size A design, panel-mount capability, and IP20 open-type enclosure make it ideal for various installations.
Key Features
- Input Voltage: 380-480VAC, 3-phase, with a rated input current of 6.0 A.
- Output Power: Provides 1.5 kW (2 HP) with an output current of 4.2 A.
- Control Method: Volts/Hertz control ensures performance across 0-400 Hz.
- Communication: Includes a built-in RS485 communication port with support for optional protocols like Ethernet, DeviceNet, and Profibus.
- Efficiency: High operational efficiency at 0.975.
- Enclosure: Open IP20/NEMA UL type.
- Display: LED display with a fixed digital keypad for simplified operation.
- I/O: Features 5 discrete inputs, 1 Form C contact output, and 1 analog input (0-10VDC or 0-20mA).
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Allen-Bradley |
| Model | 22F-D4P2N103 |
| Suffix Meaning | “22F” for PowerFlex 4M series, “D4P2” for 4.2 A rating, “N103” for specific configurations including fixed keypad and no CE filter. |
| Input Voltage | 380-480VAC, 3-phase |
| Input Current | 6.0 A |
| Output Voltage | 0-460VAC, 3-phase |
| Output Current | 4.2 A |
| Output Frequency | 0-400 Hz |
| Power | 1.5 kW (2 HP) |
| Efficiency | 97.5% |
| Control Method | Volts/Hertz |
| Enclosure Rating | IP20 / NEMA UL open type |
| Communication | RS485 built-in, supports optional protocols |
| Installation | Panel mount |
Applications
The 22F-D4P2N103 is ideal for industrial automation requiring precise motor speed control. Applications include conveyors, fans, pumps, and mixers. It suits environments where compact design and high efficiency are critical.
FAQ
Q: Can this drive be used with single-phase input?
A: No, it is designed for 3-phase input voltage only.
Q: Is the device CE-compliant?
A: No, this model does not include the CE-compliant filter.
Q: What optional communication protocols are supported?
A: BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet are available.
Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
