Overview

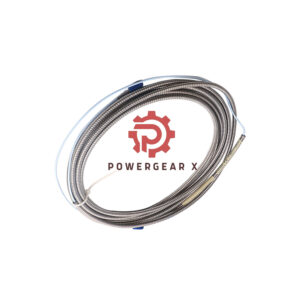

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-040-11-05) is designed for use with the 3300 XL Proximitor Sensors. Manufactured in the U.S.A., this high-performance extension cable ensures seamless connectivity for vibration monitoring systems. With an armored option, the extension cable is built to withstand extreme industrial environments, making it ideal for various applications such as turbines, compressors, and motors.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11 mm Extension Cable
• Product Number: 330730-040-11-05
• Cable Material: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
• Connector Type: Gold-plated brass
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Armor Option: Flexible AISI 302 SST with FEP outer jacket
• Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Tensile Strength: 330 N (75 lbs) probe case to probe lead; 270 N (60 lbs) probe lead to extension cable connectors
• Approval Option: Multiple approvals (Agency approval option 05)
• DC Resistance:
  • RCORE: 1.0 ± 0.25 ohms (center conductor to center conductor)
  • RJACKET: 0.3 ± 0.1 ohms (coaxial conductor to coaxial conductor)
• Linear Range: 0.5 to 4.5 mm (20 to 180 mils)
• Extended Range: 0.5 to 5.0 mm (20 to 200 mils)

Ordering Information

When placing an order for the 3300 XL 11 mm Extension Cable, consider the following options:

• Cable Length: 4.0 meters (13.1 feet)
• Armor Type: Flexible AISI 302 SST with FEP outer jacket (optional)
• FluidLoc Option: Prevents oil and liquids from leaking out
• Agency Approval: Available with multiple agency approvals (Option 05)

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
