Armored Extension Cable | Bently Nevada 330130-035-03-05

Overview

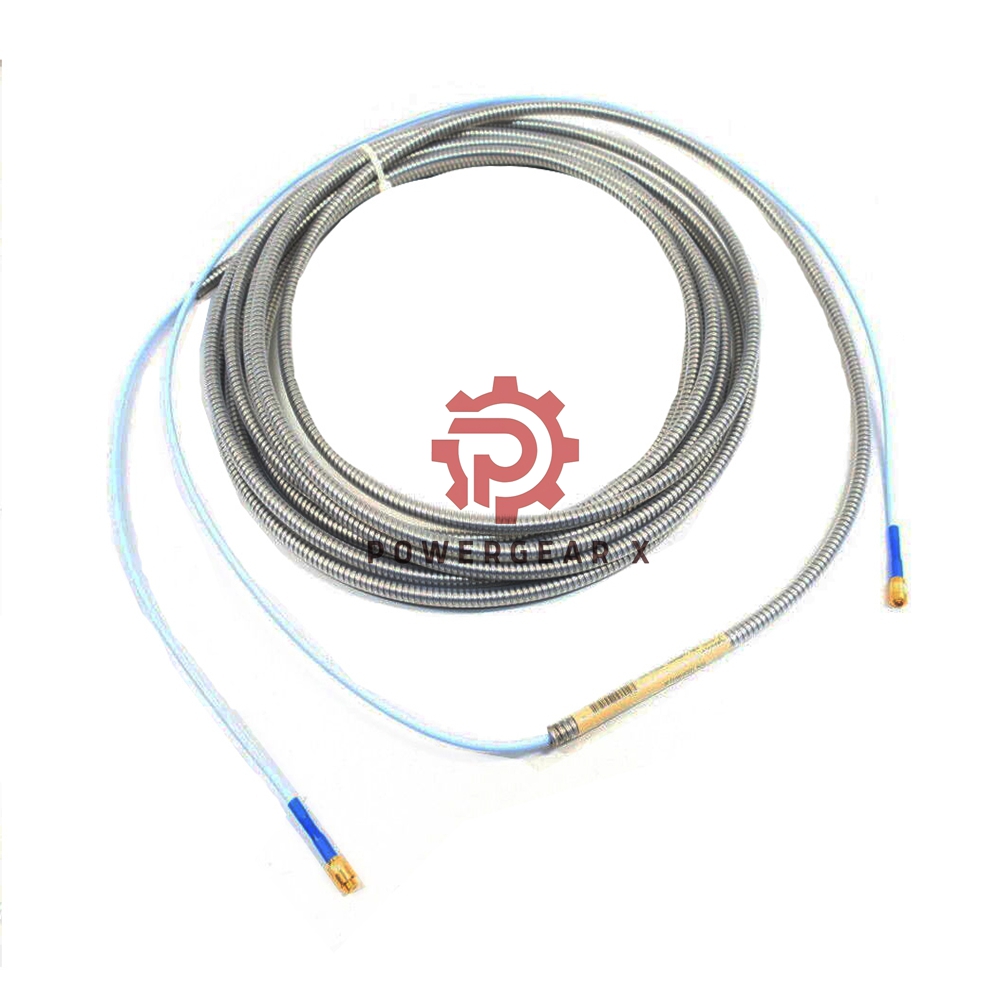

The Bently Nevada 3300 XL Standard Extension Cable (Model: 330130-035-03-05) is designed to extend the reach of your 3300 XL 8 mm Proximity Probes, ensuring precise measurements in demanding environments. Manufactured by Bently Nevada, this extension cable ensures reliable performance with robust protection against various operational conditions. It comes with CSA, ATEX, and IECEx approvals, making it suitable for use in hazardous environments. The cable length is 3.5 meters (11.5 feet), offering flexibility in installation and use.

Key Features

• Brand: Bently Nevada
• Model: 330130 XL Standard Extension Cable
• Part Number: 330130-035-03-05
• Condition: New, Factory Sealed
• Warranty: 12 months from purchase date

Technical Specifications

• Cable Length Option:
  • 3.5 meters (11.5 feet)
• Connector Protector and Cable Option:
  • Armored cable with connector protector
• Agency Approval Option:
  • CSA, ATEX, IECEx Approvals
• Extension Cable DC Resistance:
  • RCORE (Ω): 0.77 ± 0.12 (from center conductor to center conductor)
  • RJACKET (Ω): 0.23 ± 0.05 (from outer conductor to outer conductor)
• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Power Requirements:
  • Requires -17.5 Vdc to -26 Vdc with non-incendive circuits connected
  • Maximum current consumption: 12 mA
  • Voltage between -23 Vdc and -26 Vdc with barriers
• Supply Sensitivity:
  • Less than 2 mV change per volt change in input voltage
• Output Resistance:
  • 50 Ω
• Linear Range:
  • 2 mm (80 mils), ranging from 0.25 mm (10 mils) to 2.3 mm (90 mils), with an output voltage between approximately -1 Vdc and -17 Vdc
• Field Wiring Compatibility:
  • Accepts 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommended cable: 3-conductor shielded triad cable with tinned field wiring
  • Maximum installation length: 305 meters (1,000 feet)
• Silicone Tape Alternative:
  • Silicone tape can be used instead of the connector protector, though it is not recommended for applications exposed to turbine oil.
• Optional FluidLoc Cable:
  • Prevents oil or other liquids from leaking through the cable’s interior.

FAQ

• Q1: What are the standard applications for the Bently Nevada 3300 XL extension cable?
  The 3300 XL extension cable is primarily used in industrial settings requiring extended reach for 3300 XL 8 mm Proximitor Sensors, particularly in turbine and machinery monitoring systems.
• Q2: How do I determine the appropriate cable length for my installation?
  Consider the distance between your 3300 XL Proximitor Sensor and the monitoring system. The maximum allowable length for the extension cable is 305 meters (1,000 feet).
• Q3: Can I use silicone tape instead of the connector protector?
  Silicone tape is an option but is not recommended for applications where the probe-to-cable connection is exposed to turbine oil.
• Q4: What happens if I use a voltage higher than -23.5 Vdc?
  Operating at a voltage higher than -23.5 Vdc can result in reduced linear range, affecting measurement accuracy.
• Q5: Is the FluidLoc option necessary for all installations?
  The FluidLoc option is optional and is recommended if there is a concern about oil or other liquids leaking through the cable.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
