Armored Extension Cable Bently Nevada | 330730-040-01-CN

Overview

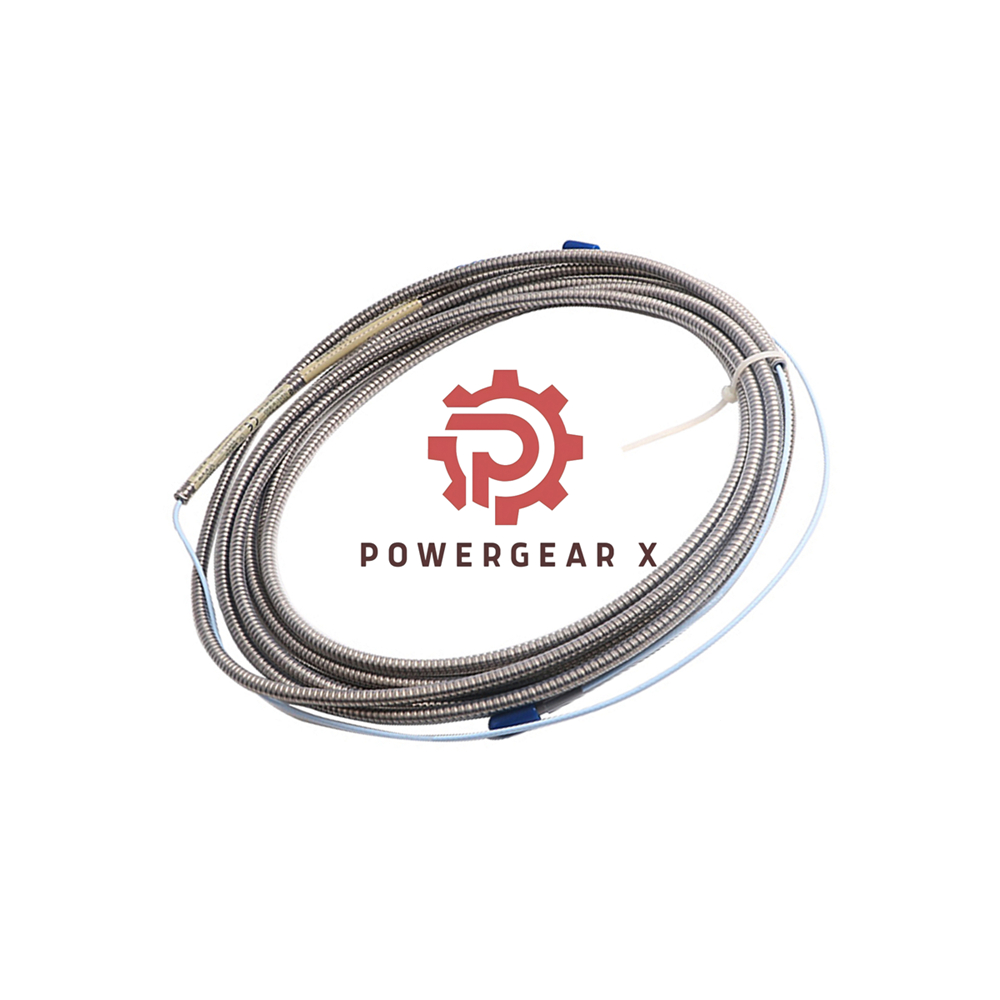

The Bently Nevada 330730-040-01-CN 3300 XL 11 mm Extension Cable is an essential component for use with 3300 XL Probes, offering superior durability and performance for vibration monitoring systems. Designed with flexibility and ease of use in mind, this extension cable is equipped with armored protection for added strength and reliability. This product is made in the U.S.A and is suitable for both industrial and high-performance applications where precision and durability are paramount.

Technical Specifications

• Manufacturer: Bently Nevada
• Model Number: 330730-040-01-CN
• Connector Option: Armored cable with gold-plated brass connectors
• Extension Cable Armor: Flexible AISI 302 stainless steel with FEP outer jacket (optional)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Weight: 0.58KG
• FluidLoc Cable Option: Prevents oil leakage from machines
• Connector Protection: Available with optional silicone tape and connector protectors (recommended in humid environments)
• Tensile Strength: Maximum rated strength of 330 N (75 pounds) from probe case to probe lead
• Resistance (Rcore): 1.0 ± 0.25 ohms (4.0m cable)
• Resistance (Rjacket): 0.3 ± 0.1 ohms (4.0m cable)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), with a maximum system length of 305 meters (1,000 feet)

Ordering Information

• Model: 330730-040-01-CN
• Cable Length: 4.0 meters (13.1 feet)
• Cable Type: Armored Cable
• Country-Specific Approval: CN

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
