Armored FluidLoc Cable | Bently Nevada 330130-035-11-00

Overview

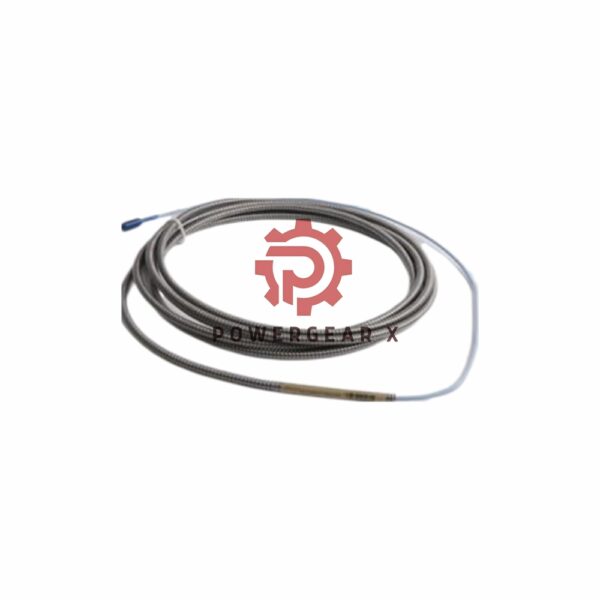

The Bently Nevada 330130-035-11-00 3300 XL Standard Extension Cable is designed for use with Bently Nevada’s 3300 XL proximity sensors and offers exceptional reliability for vibration monitoring systems. This cable features an armored FluidLoc option, designed to prevent leakage of oils and fluids, making it ideal for use in turbine applications.

Technical Specifications:

• Model: 3300 XL Standard Extension Cable
• Brand: Bently Nevada
• Part Number: 330130-035-11-00
• Length: 3.5 meters (11.5 feet)
• Connector Protector: Armored FluidLoc cable (11)
• Agency Approval: Not required (00)
• Cable Type: FluidLoc armored cable designed to prevent fluid leakage.

Electrical Characteristics:

• DC Resistance (RCORE):
  • From center conductor to center conductor: 0.77 ± 0.12 Ω (at 3.5m)
• DC Resistance (RJACKET):
  • From outer conductor to outer conductor: 0.23 ± 0.05 Ω (at 3.5m)
• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Output Resistance: 50 Ω

Performance Features:

• Power Requirements:
  • -17.5 Vdc to -26 Vdc (when installed with a non-incendive circuit per installation drawing 140979)
  • Maximum consumption: 12 mA
  • -23 Vdc to -26 Vdc with barriers.
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Linear Range: 2 mm (80 mils), from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils) at -1 to -17 Vdc.
• Field Wiring:
  • 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum cable length: 305 meters (1,000 feet)
  • Recommended: 3-conductor shielded triad cable

Design Improvements:

• TipLoc molding for enhanced probe tip-to-body bonding.
• CableLoc design for strong, secure cable connections, offering a pull strength of 330 N (75 lbf).
• FluidLoc option prevents internal oil leakage from machinery.

Frequently Asked Questions (FAQ):

• Q1: What is the maximum recommended length for the 3300 XL extension cable?
• The maximum recommended length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet).
• Q2: What is the power requirement for the 3300 XL sensor when using the extension cable?
• The sensor requires -17.5 Vdc to -26 Vdc, with a maximum current consumption of 12 mA.
• Q3: What is the linear range of the 3300 XL extension cable?
• The linear range is from 0.25 mm (10 mils) to 2.3 mm (90 mils).
• Q4: Can this extension cable be used in turbine environments?
• Yes, the FluidLoc cable option makes it suitable for use in environments where oil leakage is a concern.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
