Product details
Overview

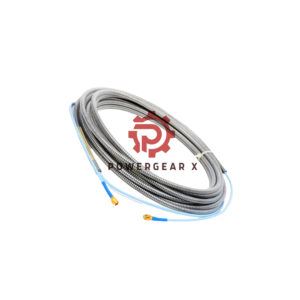

The Bently Nevada 3300 XL 11 mm Extension Cable (PN: 330730-040-13-00) is engineered for precision vibration monitoring in industrial applications. Featuring a FluidLoc armored triaxial design, it prevents fluid ingress while ensuring signal integrity across extreme temperatures (-62°F to +351°F). With a 4.0-meter length and gold-plated connectors, this cable supports reliable data transmission for proximity sensors in harsh environments. Additionally, its stainless steel armor and FEP jacket enhance durability against mechanical stress and chemical exposure.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11 mm Extension Cable
- 330730-040-13-00 Suffix:
- 040: 4.0-meter cable length
- 13: Armored FluidLoc + connector protector
- 00: No agency certifications required
- Capacitance: 69.9 pF/m (typical)
- DC Resistance:
- Core-to-core: 1.0Ω ±0.25Ω
- Coaxial-to-coaxial: 0.3Ω ±0.1Ω
- Weight: 0.56 kg (armored)
- Temperature Range: -62°F to +351°F (-52°C to +177°C)
- Tensile Strength: 270N (connectors), 330N (probe case)
- Shielding: Triad shielded cable (75Ω impedance)
- Safety Features: Pre-drilled locknut, optional silicone tape
FAQ
Q: What is the maximum field wiring length?
A: 305 meters (1,000 feet) between sensor and monitor.
Q: Can it operate in sub-zero conditions?
A: Yes, rated for -62°F (-52°C).
Q: Is the connector protector mandatory?
A: Recommended for humid environments but replaceable with silicone tape.
For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
