Bently Nevada 11 mm Extension Cable | 330730-080-12-05

Overview

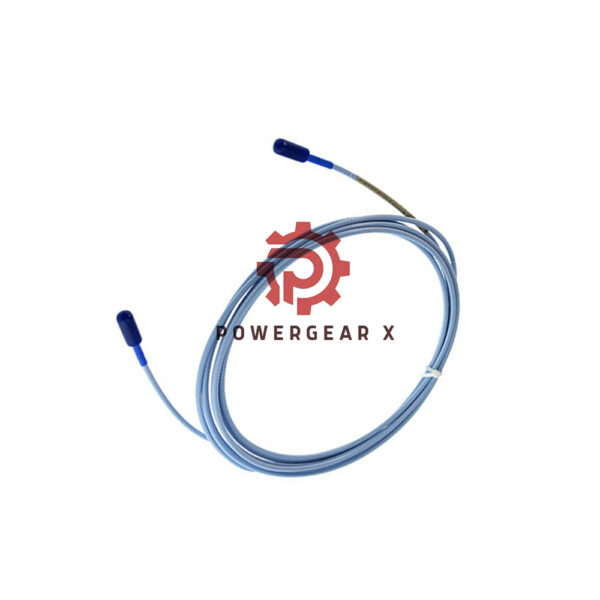

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-080-12-05) is a high-performance extension cable designed for use with the 3300 XL Probes in industrial applications. Manufactured in the U.S.A., this cable ensures reliable connectivity for high-precision proximity measurements. It offers several advanced features like FluidLoc cable and connector protector options, which enhance its performance in harsh environments. Available in a length of 8.0 meters (26.2 feet), the cable is equipped with a durable FluidLoc connector and is designed for high-level environmental protection.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11 mm Extension Cable
• Product Number: 330730-080-12-05
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Cable Armor (optional): Flexible AISI 302 SST with FEP outer jacket
• Resistance (RCORE): 2.0 ± 0.5 ohms (center to center conductor)
• Resistance (RJACKET): 0.6 ± 0.2 ohms (coaxial conductor to coaxial conductor)
• Recommended Gap Setting: 2.5 mm (100 mils)
• Tensile Strength: 330 N (75 pounds) probe case to probe lead, 270 N (60 pounds) at probe lead to extension cable connectors
• Extension Cable Material: 75 Ω triaxial, FEP insulated
• Extension Cable Armor Material: AISI 302 SST with FEP outer jacket

Ordering Information

• Product Number: 330730-080-12-05
• Cable Length: 8.0 meters (26.2 feet)
• Connector and Cable Option: FluidLoc with connector protector
• Agency Approval Option: 05 Multiple Approvals

FAQ

1. What is the maximum cable length supported by the 3300 XL extension cable?

   • The maximum system length is 9 meters (including the extension cable).

2. What kind of temperature range can the extension cable withstand?

   • The operating and storage temperature ranges from -51°C to +177°C (-60°F to +351°F).

3. Is the extension cable suitable for use in harsh industrial environments?

   • Yes, the optional armored version provides extra protection against mechanical damage, while the FluidLoc cable prevents liquid leakage.

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
