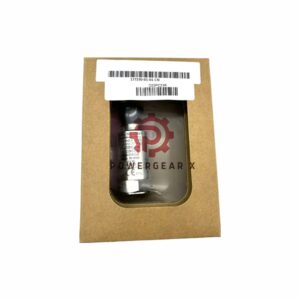

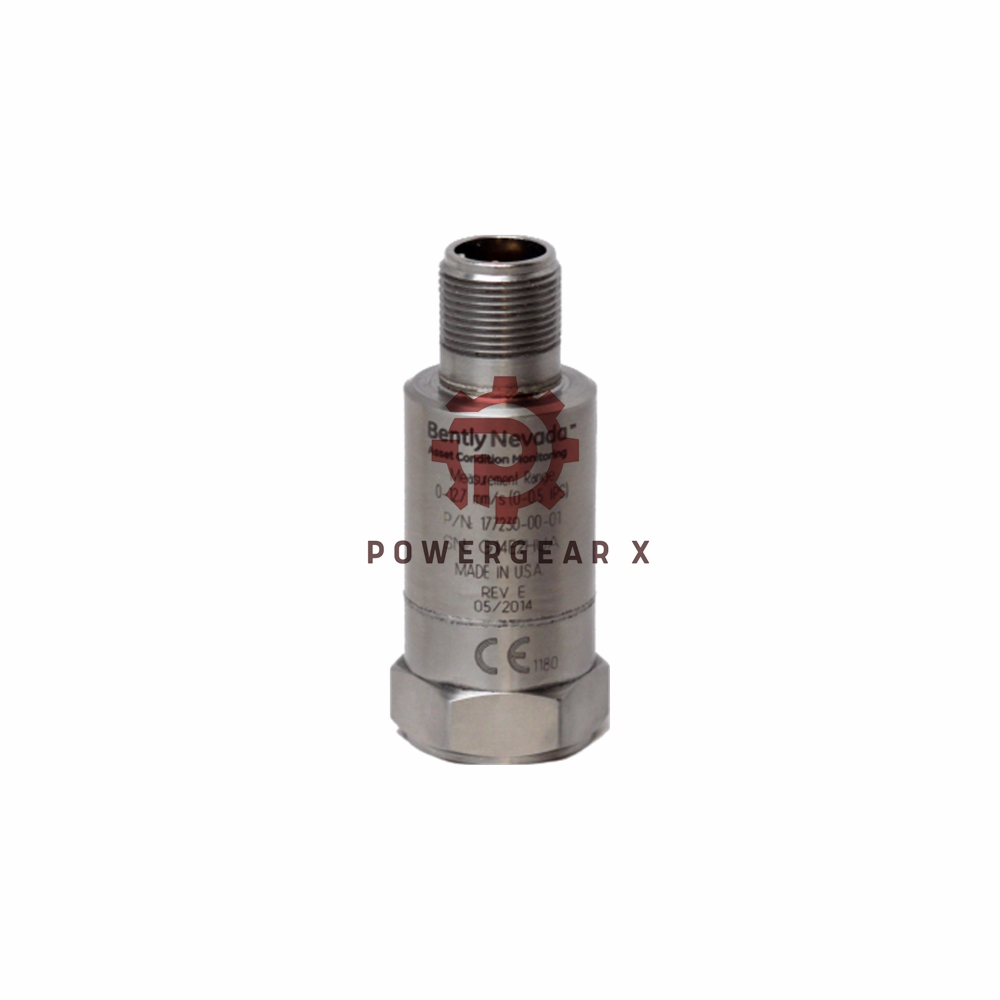

Bently Nevada 177230-00-01-CN Seismic Transmitter

Overview

The Bently Nevada 177230-00-01-CN vibration sensor is designed for accurate and reliable vibration monitoring in industrial applications. This sensor is ideal for machinery protection systems, offering a broad measurement range and robust construction.

Technical Specifications:

• Manufacturer: Bently Nevada
• Model: 177230-00-01-CN
• Measurement Range: 0 to 12.7 mm/s (0 to 0.5 in/s) standard, options available for 0 to 25.4 mm/s (0 to 1.0 in/s) and 0 to 50.8 mm/s (0 to 2.0 in/s)
• Frequency: 10 Hz to 1 kHz (600 to 60 kcps) rms
• Sensitivity (Main Loop Signal One): 0.0 to 12.7 mm/s, 0.0 to 25.4 mm/s, 0.0 to 50.8 mm/s
• Output Format: 4 to 20 mA current loop, referenced to Pin B
• Excitation Voltage: 12 to 30 Vdc (current limited to 40 mA)
• Frequency Response: 2.5 Hz to 10 kHz (150 cpm to 600 kcpm) ±10%
• Linearity: ±1%
• Mounting Thread: M6 X 1 SI, M8 x 1.25 SI, ¼-28 UNF
• Housing Material: 316L stainless steel
• Connector: 3-pin MIL-C-5015, 316L stainless steel
• Weight: 131 g (4.62 oz)

Applications:

• Vibration monitoring in rotating machinery
• Industrial equipment condition monitoring
• Seismic monitoring in oil and gas, and power generation plants
• Vibration analysis for critical machinery health
• Used in systems requiring high durability and accurate vibration measurement

FAQ:

1. What is the frequency range of the Bently Nevada 177230-00-01-CN Seismic Transmitter?
   • The frequency range is 2.5 Hz to 10 kHz (150 cpm to 600 kcpm) ±10%.
2. What is the sensitivity of this seismic transmitter?
   • The sensitivity is 0.0 to 12.7 mm/s (0 to 0.5 in/s) standard, with options for 0 – 25.4 mm/s (0 to 1.0 in/s) and 0 – 50.8 mm/s (0 to 2.0 in/s).
3. What materials are used for the casing and connectors?
   • The casing is made from 316L stainless steel, and the connector is a 3-pin MIL-C-5015, also made from 316L stainless steel.
4. What are the mounting options for this device?
   • The device offers multiple mounting options, including M6 X 1 SI, M8 x 1.25 SI, and ¼-28 UNF.
5. Is the 177230-00-01-CN Seismic Transmitter approved for international use?
   • Yes, it includes country-specific approvals, as referenced in the CN Approvals Option Quick Reference Guide.

For more detailed information, please check official datasheet: 177230 Seismic Transmitter Datasheet
