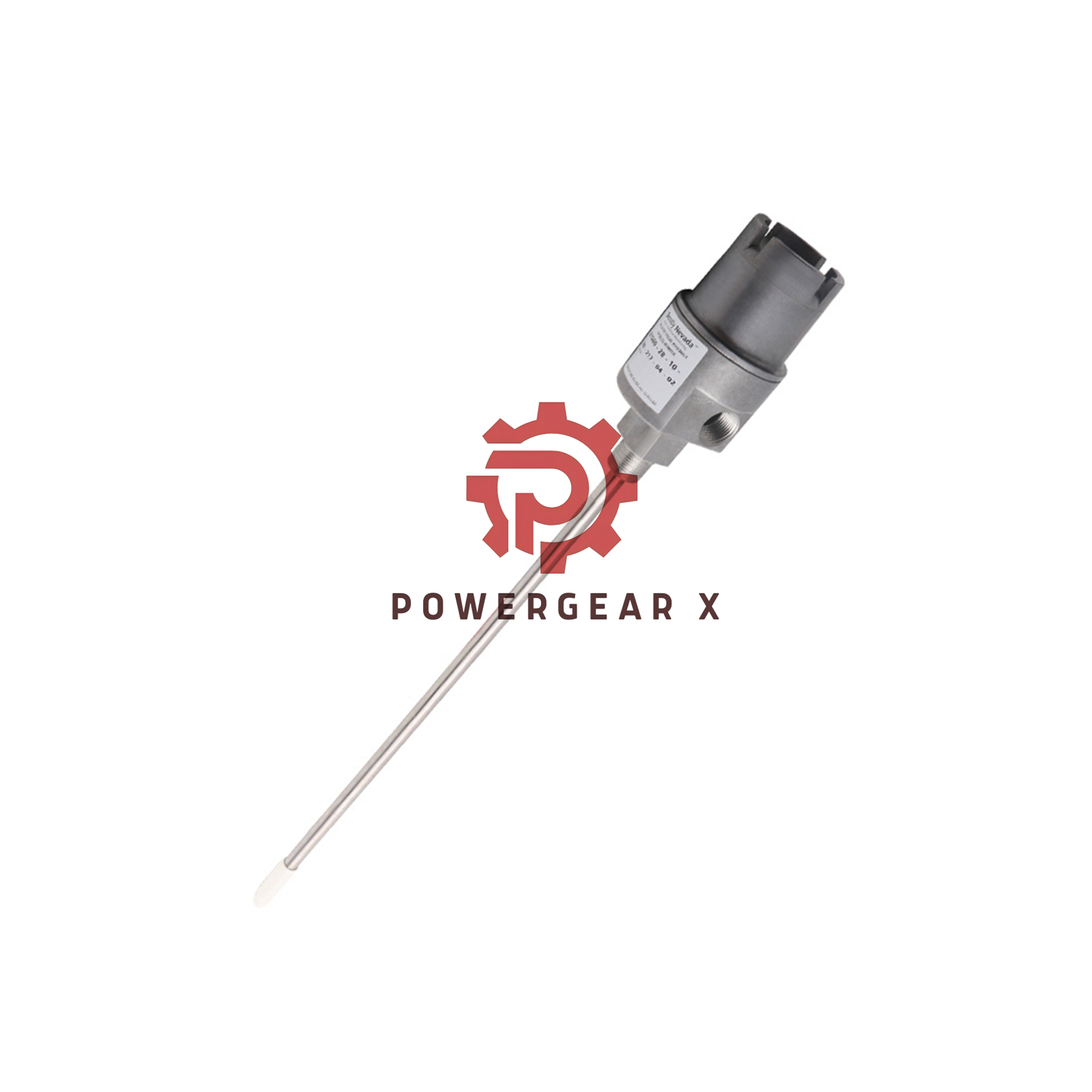

Bently Nevada 21000-28-10-00-180-00-02 | Proximity Probe

Overview:

The Bently Nevada 21000-28-10-00-180-00-02 Proximity Probe Housing Assemblies are designed for accurate and reliable measurement in hazardous environments. These housing assemblies are ideal for applications where vibration and proximity monitoring are critical. They are fully compliant with CSA Type 4 standards and API 670 for externally mounted proximity probe housings. Available in both aluminum and stainless steel, these housings provide robust protection for the internal components, ensuring durability and long-term performance.

Ordering Information:

The model number for the Proximity Probe Housing Assemblies is 21000, with the suffix codes defining various configuration options. Here’s a breakdown of the available suffix codes:

• A: Probe with Connector
  28: Select the 3300 XL 8 mm probe with applicable hazardous area approvals.
• B: Probe Cable Length
  10: Choose from a 1.0-meter (39 in) probe cable.
• C: Standoff Adapter Length
  No standoff adapter option: 00.
• D: Probe Penetration
  180: Probe penetration length options range from 1.0 to 2.0 inches (maximum -180-18 in).
• E: Fittings Option
  00 indicates no fittings.
• F: Mounting Thread Option
  -02 corresponds to a 3/4-14 NPT thread (required if no standoff adapter is selected).

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assemblies–21000-28-10-00-180-00-02
• Material:
  • Body: Aluminum
  • Sleeve: 304 Stainless Steel
• Weight: 1.1 kg (2.4 lb) (without fittings)
• Maximum Probe Penetration (C + D):
  • Not visible: 13.5 in (34.3 cm)
• Fittings Option: Optional, with 3/4-14 NPT mounting thread
• Mounting: Threaded ports for conduit connections

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
