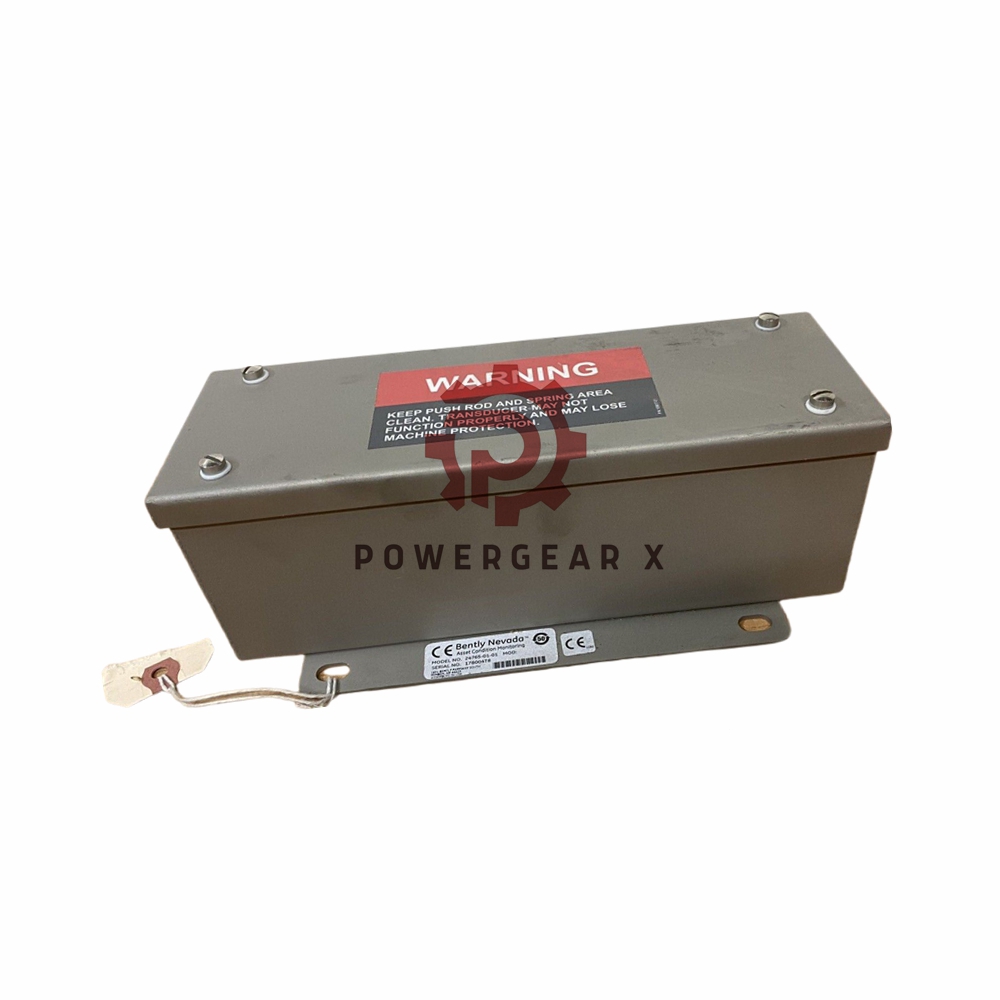

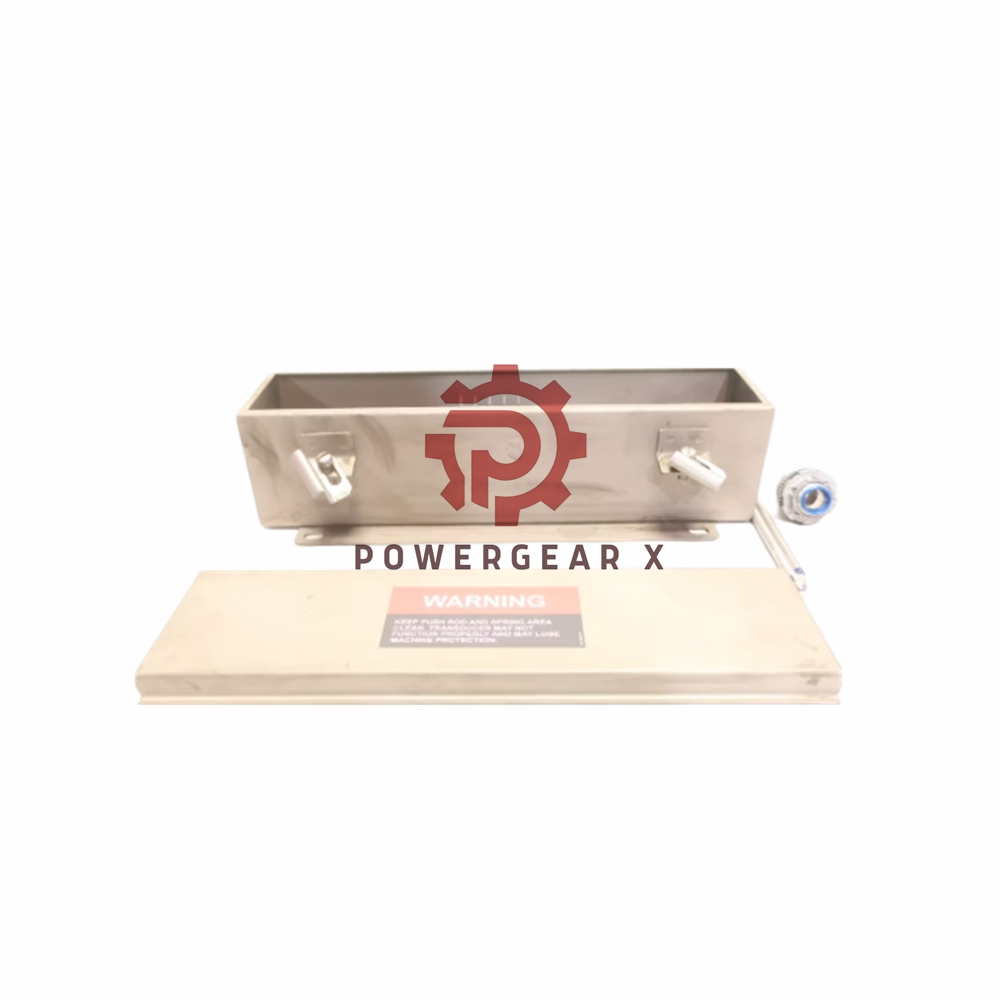

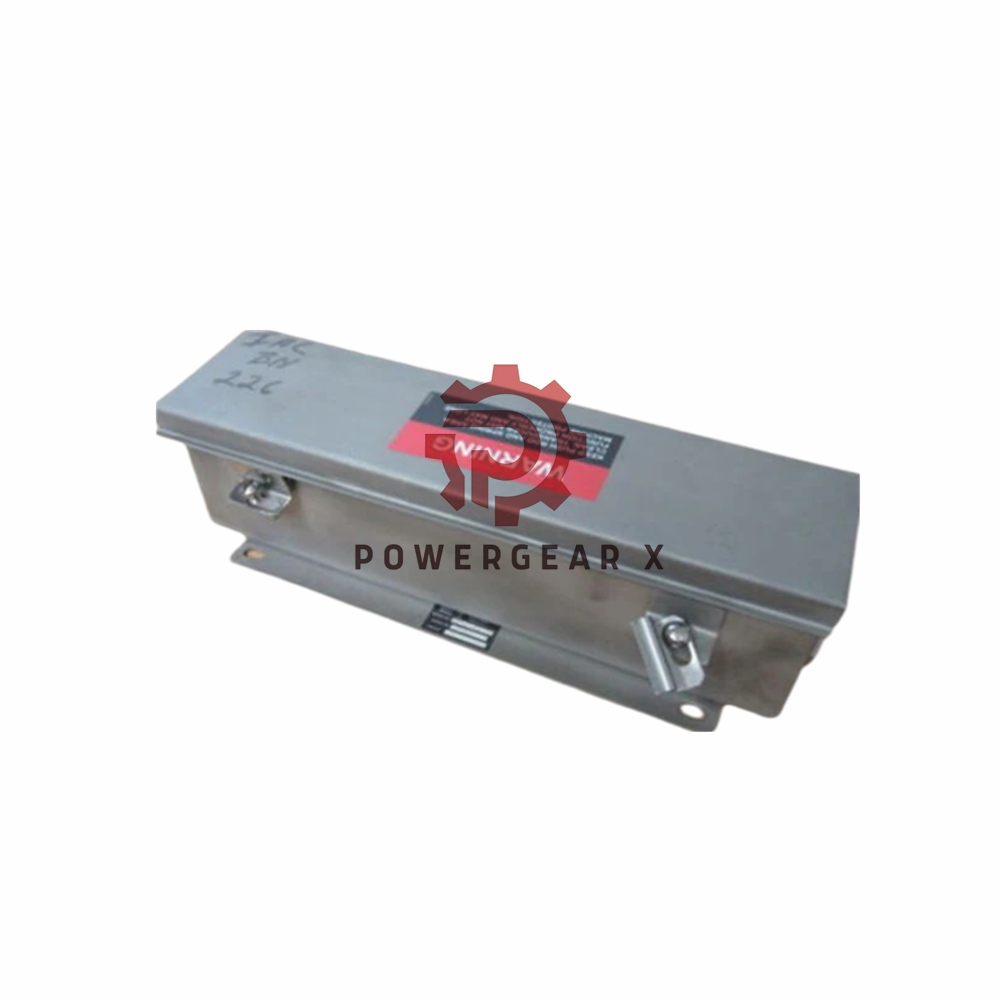

Bently Nevada 24765-03-01 Case Expansion Transducer Assembly

Overview

The Bently Nevada 24765-03-01 Case Expansion Transducer Assembly is a premium sensor designed to provide precise measurements of case expansion in industrial machinery. This model ensures enhanced reliability in demanding environments, offering exceptional linearity and stability.

Features

• Precision Engineering: Delivers ±0.5% full-range linearity for accurate case expansion monitoring.
• Robust Design: With spring-return functionality for improved operational stability.
• Wide Linear Range: Measures up to 101.6 mm (4.00 in), making it suitable for various applications.
• Compact and Durable: Engineered with sturdy materials, ensuring longevity and resilience under harsh conditions.
• Optimized for Accuracy: Features a scale factor of 0.143 V/mm (3.63 V/in) for high-precision results.

Technical Specifications

• Brand: Bently Nevada
• Model: 24765-03-01 (Suffix “03” indicates a linear range of 101.6 mm; “01” denotes spring-return functionality)
• Measurement Range: 101.6 mm (4.00 in)
• Scale Factor: 0.143 V/mm (3.63 V/in)
• Frequency Response: -3 dB at 10 Hz
• Stability: 0.125% full-scale
• Linearity: ±0.5% full-range

Mechanical Dimensions:

• Height: 88.9 mm (3.50 in)
• Width: 117 mm (4.60 in)
• Length: 328 mm (12.90 in)
• Weight: 2.7 kg (6.0 lbs)

Applications

• Monitoring case expansion in steam turbines, compressors, and other industrial machinery.
• Ensuring machinery safety and operational efficiency in power generation, oil and gas, and heavy manufacturing industries.
• Ideal for use in environments requiring high precision and reliability under fluctuating conditions.

FAQ

Q1: What does the suffix “03” signify in the model number 24765-03-01?
A1: It indicates a linear range of 101.6 mm (4.00 in).

Q2: What applications is this transducer suitable for?
A2: It is designed for monitoring case expansion in industrial equipment such as steam turbines and compressors.

Q3: Does this model include a spring-return feature?
A3: Yes, the suffix “01” denotes the inclusion of a spring-return mechanism.

Check official datasheet for more detailed information: Case Expansion Transducer Systems
