Bently Nevada | 3300 NSv Extension Cable 330930-040-01-00

Overview

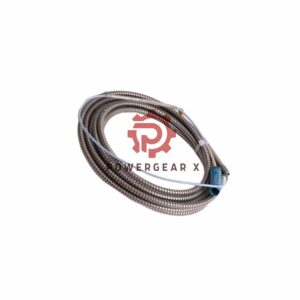

The Bently Nevada 330930-040-01-00, a 3300 XL Standard Extension Cable, is designed to ensure seamless integration with 3300 NSv and RAM proximity probe systems. Manufactured in the U.S.A., it offers exceptional durability and chemical resistance, making it suitable for demanding industrial applications like process compressors.

Features

1. Compatibility: Fully interchangeable with 3300 RAM proximity probes.
2. Enhanced Durability: Stainless steel armor and FEP jacket protect the cable in harsh environments.
3. ClickLoc Connectors: Gold-plated brass connectors ensure secure, reliable connections.
4. Chemical Resistance: Suitable for aggressive industrial environments.
5. Patented Technologies: TipLoc and CableLoc enhance strength and durability.

Technical Specifications

• Brand/Model: Bently Nevada 330930-040-01-00
• Cable Length Option: 040 = 4.0 meters (13.1 feet)
• Connector & Cable Option: 01 = Stainless steel armor with FEP jacket
• Agency Approval Option: 00 = Not required
• Cable Material: 75 Ω coaxial, FEP insulated
• Armor Material: Flexible AISI 302 SST with FEP jacket (optional)
• Tensile Strength: 220 N (50 lb) for various connection points
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• System Length: 5 or 7 meters (with extension cable)
• Weight: 0.15 kg

Suffix Explanation:

• 040: Denotes 4.0-meter cable length
• 01: Stainless steel armor with FEP jacket
• 00: No agency approvals required

Applications

The 330930-040-01-00 is widely used in industries such as:

• Oil & Gas: Monitoring process compressors in corrosive environments.
• Chemical Processing: Ensures reliability in chemically aggressive conditions.
• Power Generation: Supports turbine and generator monitoring systems.

Frequently Asked Questions (FAQ)

Q1: What is the significance of ClickLoc connectors?
A1: ClickLoc connectors prevent loosening and ensure secure electrical connections.

Q2: Is the cable resistant to high temperatures?
A2: Yes, it operates reliably between -52°C and +177°C (-62°F to +351°F).

Q3: Can the 330930-040-01-00 be used in hazardous environments?
A3: Yes, its stainless steel armor and FEP jacket make it ideal for harsh conditions.

Q4: What is the tensile strength of the cable?
A4: It withstands up to 220 N (50 lb) at critical connection points.

Q5: Is it compatible with previous Bently Nevada systems?
A5: Yes, it is mechanically and electrically compatible with 3300 RAM systems.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
