Bently Nevada | 3300 XL Extension Cable 330130-080-03-00

Overview

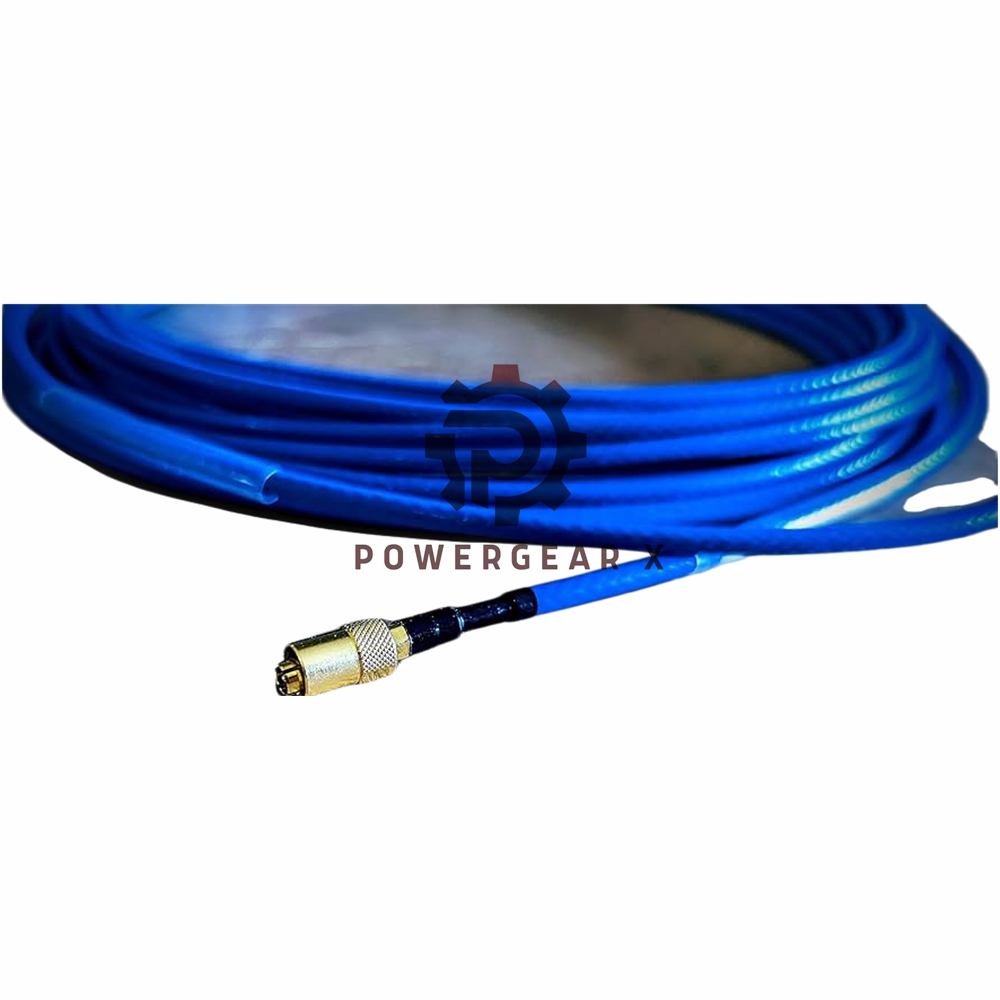

The Bently Nevada 3300 XL Standard Extension Cable (Part Number: 330130-080-03-00) is designed for use with 3300 XL 8 mm Proximity Probes and Proximitor Sensors. Manufactured in the U.S.A., this cable features a 75 Ω triaxial construction with fluoroethylene propylene (FEP) insulation, ensuring robust performance in industrial environments. It is designed with a patented CableLoc method for enhanced pull strength, providing 330 N (75 lbf) of force to securely attach the probe cable to the probe tip. An optional FluidLoc feature is available to prevent the leakage of fluids like oil through the cable.

Technical Specifications

• Part Number: 330130-080-03-00
• Brand: Bently Nevada
• Cable Length: 8 meters (26.2 feet)
• Cable Type: Armored with connector protectors
• Extension Cable Material: FEP-insulated 75 Ω triaxial cable
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Weight: 0.89 kg
• Operating Temperature: Between +18˚C and +27˚C (+64˚F to +80˚F)
• Linear Range: 2 mm (80 mils), starting at 0.25 mm (10 mils)
• Power Supply: Requires -17.5 Vdc to -26 Vdc (max consumption of 12 mA)
• Output Resistance: 50 Ω
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)

FAQs

1. What is the maximum cable length for the 3300 XL Standard Extension Cable?
   • The maximum recommended length for this extension cable is 305 meters (1,000 feet) between the Proximitor Sensor and the monitor.
2. What is the purpose of the FluidLoc cable option?
   • The FluidLoc cable option helps prevent the leakage of oils and other fluids from the machinery through the cable, providing additional protection.
3. What is the significance of the CableLoc and TipLoc designs?
   • The CableLoc design ensures strong attachment between the probe cable and probe tip, while the TipLoc molding method offers a stronger bond between the probe tip and body.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
