Bently Nevada | 3300 XL Extension Cable 330130-085-01-05

Overview:

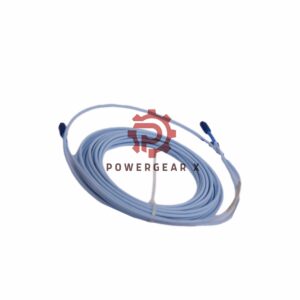

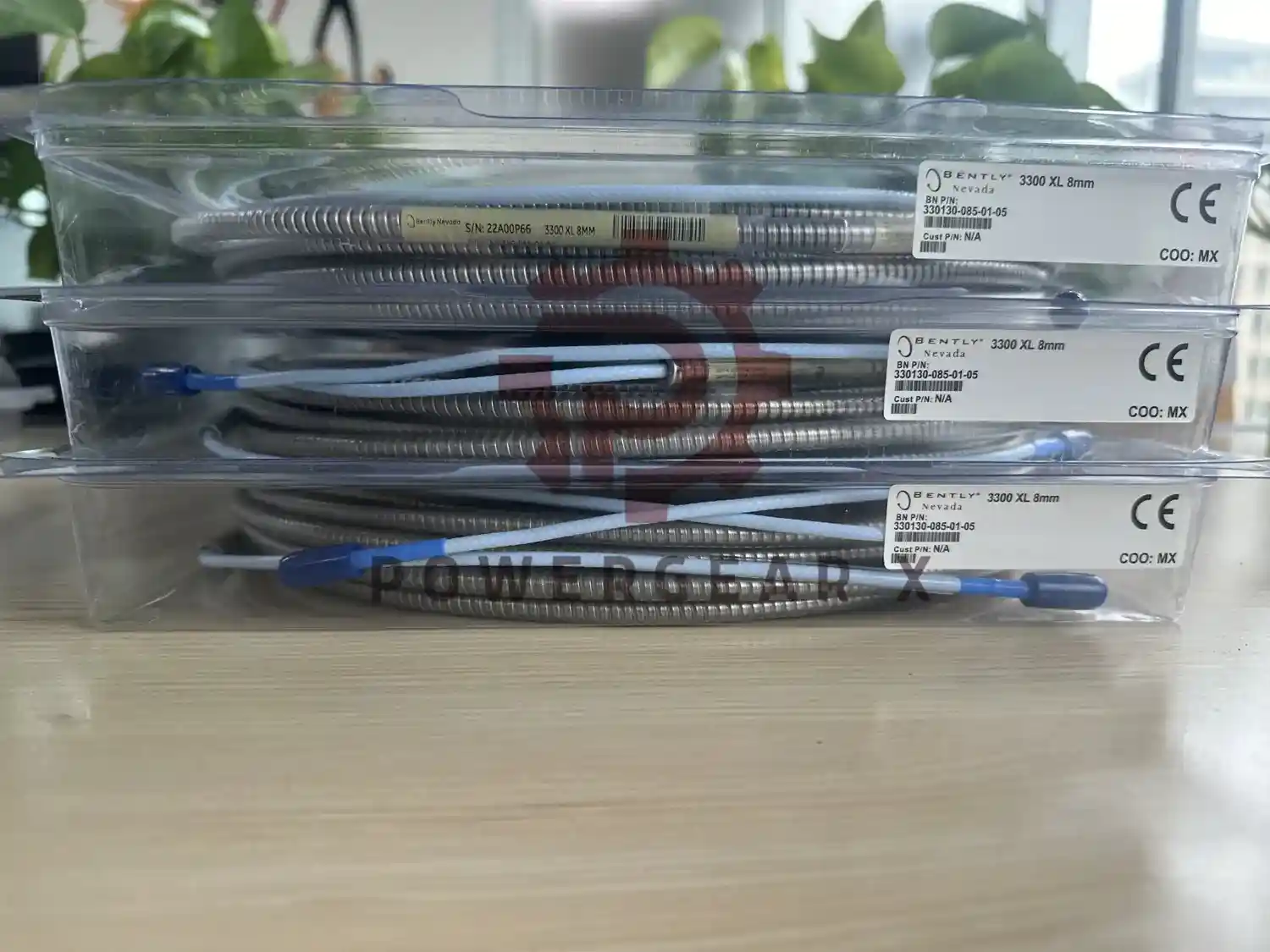

The Bently Nevada 3300 XL Extension Cable (Part Number: 330130-085-01-05) is designed to provide reliable connections for the 3300 XL 8mm Proximitor Sensor and associated components. It features advanced insulation and a robust construction that ensures durability in demanding industrial environments. With a patented TipLoc molding method and the optional FluidLoc cable design, this extension cable provides enhanced protection against mechanical stress and contamination, ensuring a secure and long-lasting connection.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 XL Extension Cable
• Part Number: 330130-085-01-05
• Cable Length Option: 085 = 8.5 meters (27.9 feet)
• Cable Material: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
• Armored Cable: Yes (01)
• Agency Approvals: Multiple approvals (05)
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Operating Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Weight: 0.948 kg
• Voltage Supply Requirements:
  • Requires -17.5 Vdc to -26 Vdc
  • Max Consumption: 12 mA
  • Operation at higher voltage than -23.5 Vdc reduces the linear range
• Cable Options:
  • FluidLoc (optional) prevents oil and liquids from leaking through the cable
• Linear Range: 0.25 to 2.3 mm (10 to 90 mils)
• Target Material Compatibility: AISI 4140 steel
• Frequency Response: Max cable length is 305 meters (1,000 feet), see frequency response graphs for roll-off at higher distances.
• Output Resistance: 50 Ω

FAQ:

• Q1: What is the maximum cable length for the Bently Nevada 3300 XL extension cable?
  A1: The maximum field wiring length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor. Longer cables may experience high-frequency signal roll-off.
• Q2: What does the FluidLoc option do?
  A2: The FluidLoc option prevents oils and other liquids from leaking out of the machine through the cable’s interior, making it ideal for challenging industrial environments.
• Q3: What temperature range can this extension cable handle?
  A3: The cable can operate in extreme temperatures ranging from -51°C to +177°C (-60°F to +351°F), providing excellent performance even in harsh conditions.
• Q4: What type of target material is compatible with the 3300 XL probe and extension cable?
  A4: The system is calibrated for use with AISI 4140 steel targets, ensuring optimal accuracy and performance.
• Q5: Is the Bently Nevada 3300 XL extension cable compatible with all proximitor sensors?
  A5: The extension cable is designed for use with the 3300 XL 8mm Proximitor Sensor system and may not be fully compatible with other transducer systems.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
