Bently Nevada | 3300 XL Extension Cable 330130-085-02-05

Overview

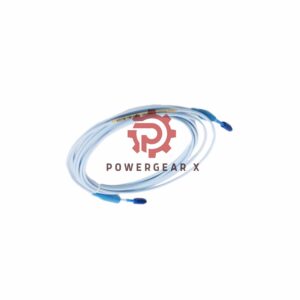

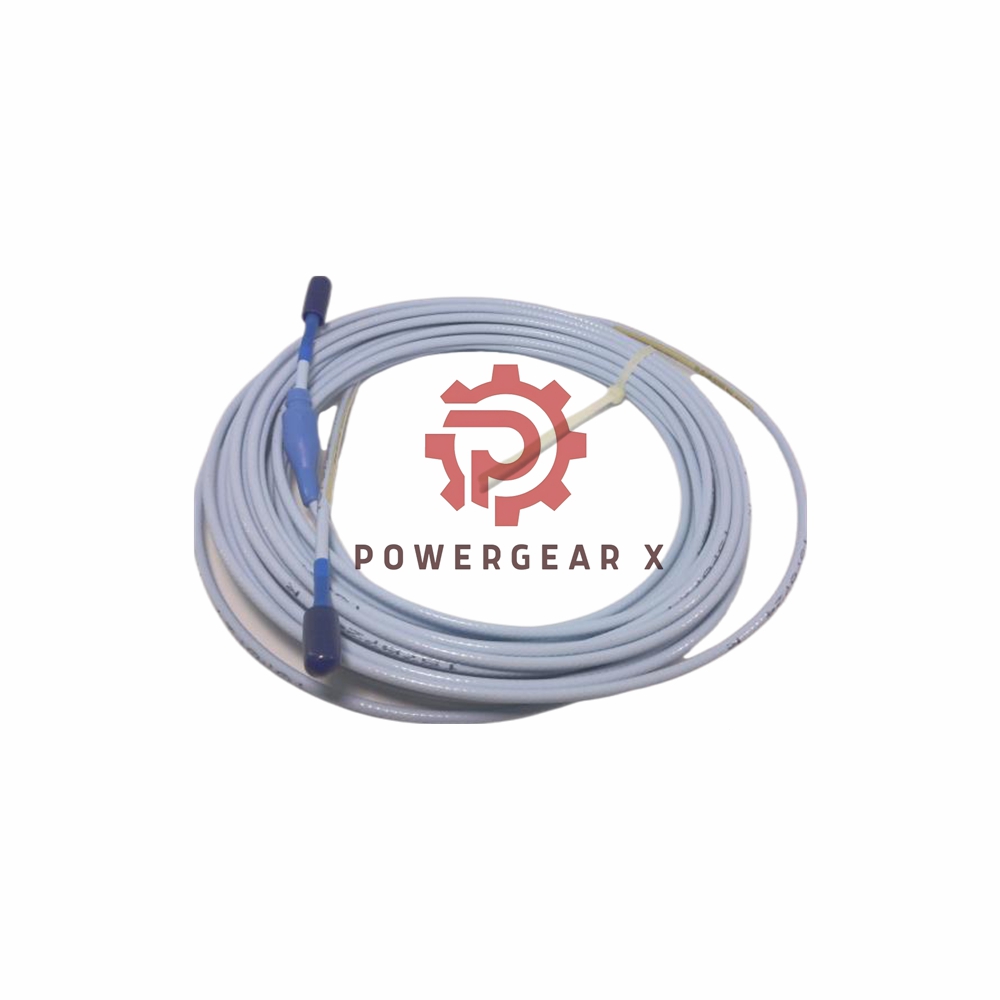

The Bently Nevada 3300 XL Standard Extension Cable (Product No. 330130-085-02-05) is a high-performance triaxial cable and use with 3300 XL 8 mm probes and sensors. Manufactured in the U.S.A., this extension cable is available in a length of 8.5 meters (27.9 feet) and is equipped with connector protectors to ensure durability. It is made from fluoroethylene propylene (FEP) insulation and is designed to withstand extreme conditions, with an operating temperature range from -51°C to +177°C (-60°F to +351°F).

Technical Specifications

Model: 3300 XL Standard Extension Cable
Part Number: 330130-085-02-05
Manufacturer: Bently Nevada
Cable Length: 8.5 meters (27.9 feet)
Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Insulation Material: Fluoroethylene Propylene (FEP)
Temperature Range: -51°C to +177°C (-60°F to +351°F)
Weight: 0.948 kg

Cable Design Features:

• Extension Cable Material: 75 Ω triaxial cable, FEP insulated.
• Pull Strength: 330 N (75 lbf) pull strength due to the CableLoc design.
• Connector Protection: Includes connector protectors for added durability.

Power Supply Requirements:

• Voltage: -17.5 Vdc to -26 Vdc
• Maximum current consumption: 12 mA
• Operation voltage (with barriers): -23 Vdc to -26 Vdc

Performance:

• Linear Range: 2 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the target.
• Output Resistance: 50 Ω.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) recommended. Maximum length of 305 meters (1,000 feet) between the sensor and monitor.

Frequently Asked Questions (FAQ)

• Q: What is the maximum length of the Bently Nevada 3300 XL extension cable?
  A: The maximum cable length supported is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.
• Q: What temperature range can this extension cable handle?
  A: The Bently Nevada 3300 XL extension cable operates in temperatures from -51°C to +177°C (-60°F to +351°F).
• Q: Can the cable be used in hazardous environments?
  A: Yes, this extension cable is available with multiple agency approvals (Option 05), making it suitable for use in various regulated and hazardous environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
