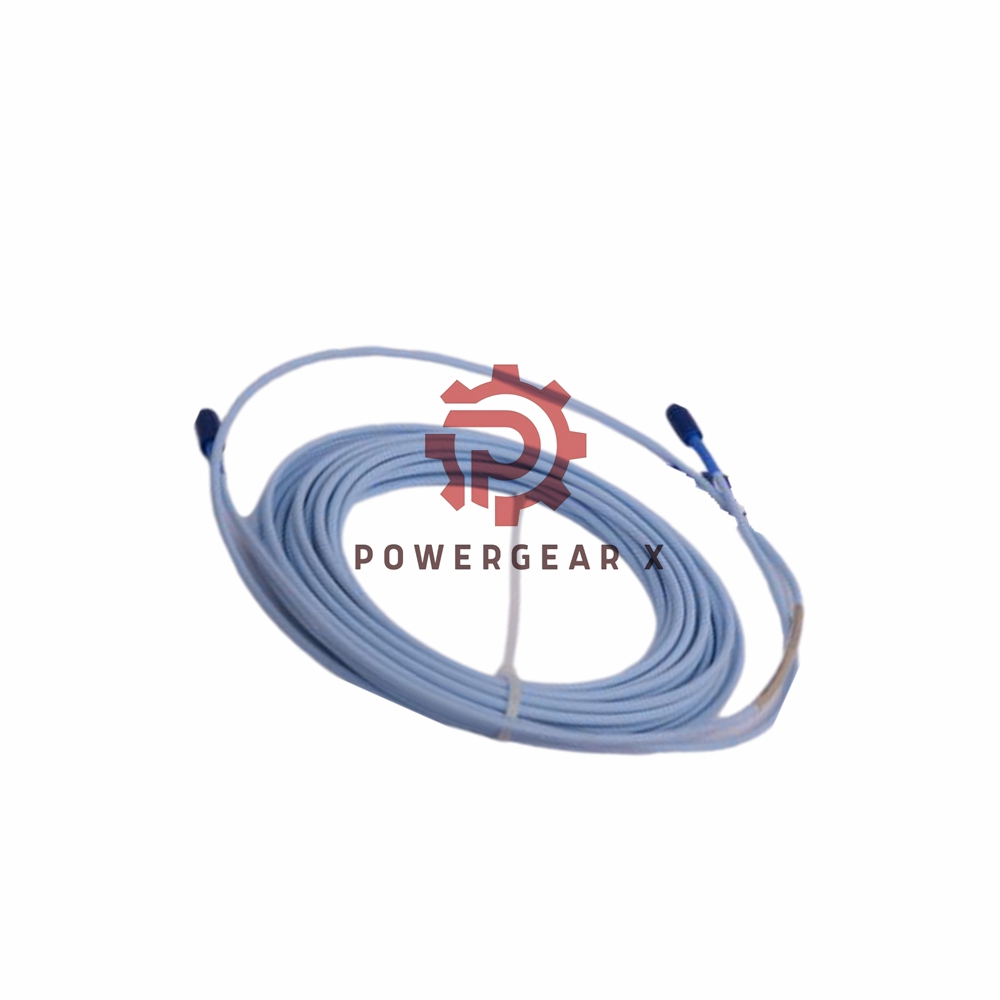

Bently Nevada | 3300 XL Extension Cable 330130-085-02-CN

Overview

The Bently Nevada 330130-085-02-CN extension cable is engineered for use with the 3300 XL 8 mm proximity probes and offers reliable performance in harsh industrial environments. This extension cable is designed to complement the 3300 XL probe systems, ensuring superior durability and operational efficiency. Manufactured in the U.S.A, it includes optional Certificate of Origin (COO) for added assurance of quality and authenticity. The cable length option 085 provides a robust 8.5 meters (27.9 feet) of coverage, ensuring a wide range of application flexibility.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-085-02-CN
• Cable Length: 8.5 meters (27.9 feet)
• Connector Protector: Standard with connector protectors
• Agency Approval: CN (Country-specific approval)
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Extension Cable Material: 75 Ω triaxial, FEP insulated
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Weight: 0.948 kg
• Dimensions: 20.5 cm x 22.5 cm x 3.5 cm
• FluidLoc Option: Optional cable feature to prevent leakage of oil and liquids
• Linear Range: 0.25 mm to 2.3 mm (10 mils to 90 mils)
• Power Supply Requirements: -17.5 Vdc to -26 Vdc

Frequently Asked Questions (FAQ)

1. What is the significance of the FluidLoc option?
   • The FluidLoc cable option prevents oil and other liquids from leaking out of the machine, ensuring enhanced performance in fluid-filled environments.
2. What are the power supply requirements for the extension cable?
   • The extension cable requires a power supply of -17.5 Vdc to -26 Vdc, ensuring proper signal transmission.
3. What is the operating temperature range for the extension cable?
   • The extension cable can operate in a temperature range from -51°C to +177°C (-60°F to +351°F).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
