Bently Nevada | 3300 XL Extension Cable 330130-085-03-05

Overview

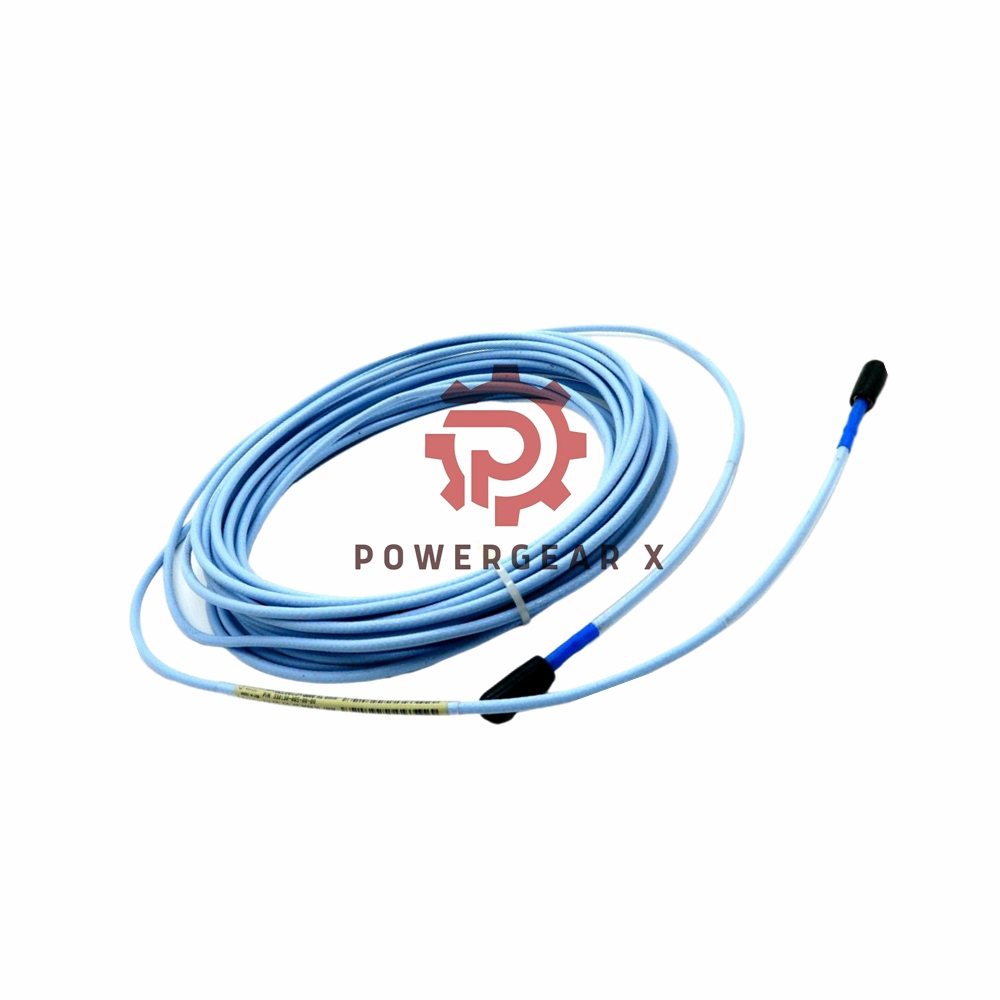

The Bently Nevada 330130-085-03-05 Standard Extension Cable is a high-performance cable to use with 3300 XL 8 mm Proximity Probes. It ensures robust connectivity, long-lasting durability, and superior performance in harsh industrial environments. The cable is engineered with a 75Ω triaxial, FEP-insulated construction, providing reliable signal transmission over extended distances. This product is a new, factory-original item, and it comes with a 12-month warranty.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Extension Cable
• Part Number: 330130-085-03-05
• Cable Length: 8.5 meters (27.9 feet)
• Connector Protector and Cable Option: Armored cable with connector protectors
• Agency Approval Option: Multiple approvals
• Extension Cable Material: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Weight: 0.948 Kg
• Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Linear Range: 0.25 mm (10 mils) to 2.3 mm (90 mils)
• Power Requirements: -17.5 Vdc to -26 Vdc
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Sensitivity: <2 mV per volt change in input voltage
• Output Resistance: 50 Ω
• Maximum Cable Length: 305 meters (1,000 feet)
• Connector Protection: Includes TipLoc molding and CableLoc design for secure attachment

FAQ

• Q1: What is the maximum operating temperature for the 3300 XL extension cable?
  A1: The cable can operate in temperatures ranging from -51°C to +177°C (-60°F to +351°F).
• Q2: How long is the extension cable in this model?
  A2: This particular model has an extension cable length of 8.5 meters (27.9 feet).
• Q3: What is the cable material used for the 3300 XL extension cable?
  A3: The extension cable is made of 75Ω triaxial, fluoroethylene propylene (FEP) insulated material.
• Q4: What is the maximum length of the extension cable between the sensor and the monitor?
  A4: The maximum recommended cable length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitoring system.
• Q5: Does the cable come with any agency approvals?
  A5: Yes, the cable has multiple agency approvals.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
