Bently Nevada | 3300 XL Extension Cable 330130-085-03-RU

Overview

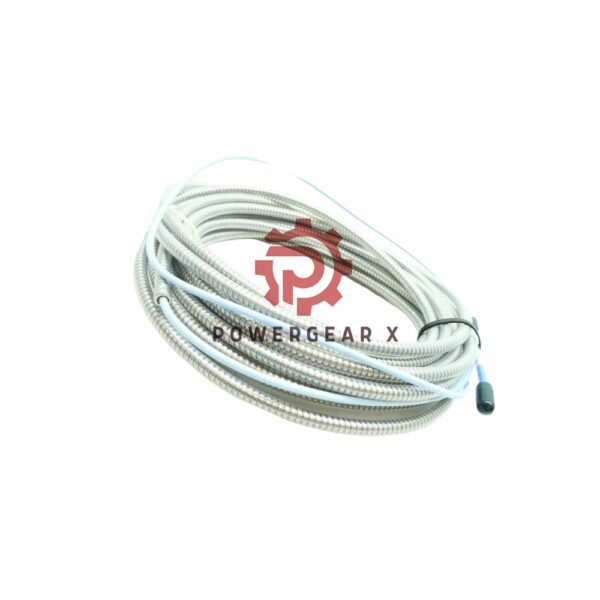

The Bently Nevada 330130-085-03-RU is a high-performance extension cable designed for use with the 3300 XL series proximity probes. Manufactured in the USA, this extension cable is engineered to meet demanding industrial environments, ensuring reliable operation in harsh conditions. It incorporates advanced design features, such as the patented CableLoc and TipLoc technology, providing robust cable attachment and protection. This extension cable is ideal for use with Bently Nevada’s 3300 XL probes and is available with various length and approval options, offering flexibility for different applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-085-03-RU
• Cable Length: 8.5 meters (27.9 feet)
• Cable Type: Armored with connector protector
• Material: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Weight: 0.948 kg
• Power Supply: -17.5 Vdc to -26 Vdc (maximum current 12 mA)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Maximum Field Wiring Length: 305 meters (1,000 feet)
• Linear Range: 0.25 mm (10 mils) to 2.3 mm (90 mils)
• Agency Approval: Country specific (RU)
• Certification: Certificate of Origin (COO) available

FAQ

1. What does the “RU” in the product model stand for?
   The “RU” signifies that the cable has country-specific agency approvals.
2. What is the purpose of the FluidLoc option?
   The FluidLoc option prevents oils and other liquids from leaking through the cable, protecting the system from contamination.
3. What is the linear range of this cable when used with the 3300 XL probes?
   The linear range is from 0.25 mm (10 mils) to 2.3 mm (90 mils), with a gap of 1.27 mm (50 mils) from the target.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
