Bently Nevada | 3300 XL Extension Cable 330130-085-11-05

Overview

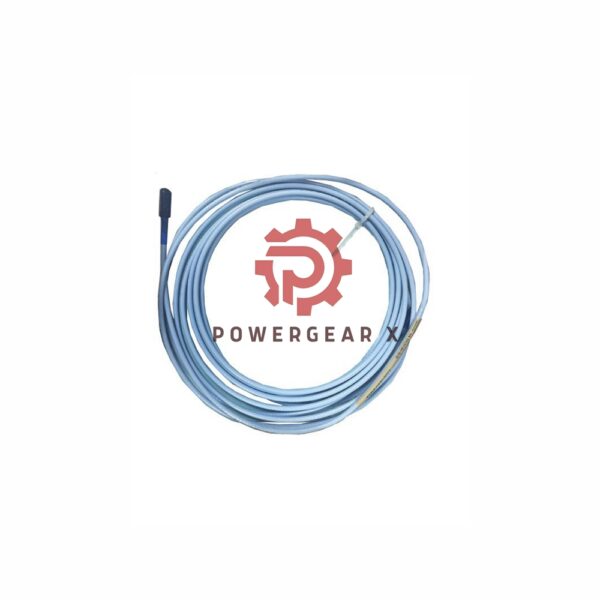

The Bently Nevada 330130-085-11-05 is a 3300 XL Extension Cable, expertly designed to complement the 3300 XL Proximitor Sensor and 8 mm probes. This cable ensures reliable signal transmission with its robust materials and advanced features, such as FluidLoc technology, which prevents fluid ingress. The cable is CSA, ATEX, and IECEx approved, making it suitable for critical industrial applications.

Key Features

• Model: 330130-085-11-05
• Cable Length: 8.5 meters (27.9 feet)
• Material: 75 Ω triaxial cable, FEP insulation
• Connector Protector Option: Armored FluidLoc cable (option code “11”)
• Agency Approvals: CSA, ATEX, IECEx (option code “05”)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.948 kg

Technical Specifications

• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft), ensuring efficient signal transmission
• Power Supply Requirements: -17.5 Vdc to -26 Vdc with non-incendive circuits
• Output Resistance: 50 Ω
• Field Wiring: Compatible with 16 to 24 AWG shielded triad cables
• Linear Range: 2 mm (80 mils), beginning at 0.25 mm (10 mils)

The patented TipLoc molding and CableLoc design improve durability and pull strength, ensuring reliable operation in harsh environments.

Decoding the Model Number

• 330130: Extension cable series
• 085: Cable length in meters (8.5 meters)
• 11: Armored FluidLoc cable option
• 05: CSA, ATEX, IECEx agency approvals

FAQ

• 1. What is the main purpose of the 3300 XL Extension Cable?
  The extension cable is used to connect 3300 XL 8 mm probes with the Proximitor Sensor, ensuring accurate signal transmission in industrial applications.
• 2. What makes FluidLoc technology unique?
  FluidLoc technology prevents fluids like oil from leaking through the cable, enhancing operational reliability in machinery monitoring systems.
• 3. Can the cable operate in extreme temperatures?
  Yes, it supports a wide temperature range from -51 °C to +177 °C (-60 °F to +351 °F), making it suitable for demanding environments.
• 4. How does the cable ensure durability?
  The patented CableLoc design provides a pull strength of 330 N (75 lbf), while the FEP insulation adds further resilience.
• 5. Are there any field wiring limitations?
  The maximum recommended field wiring length is 305 meters (1,000 feet) between the sensor and the monitor.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
