Bently Nevada | 330100-50-00 3300 Proximitor Sensor

Overview

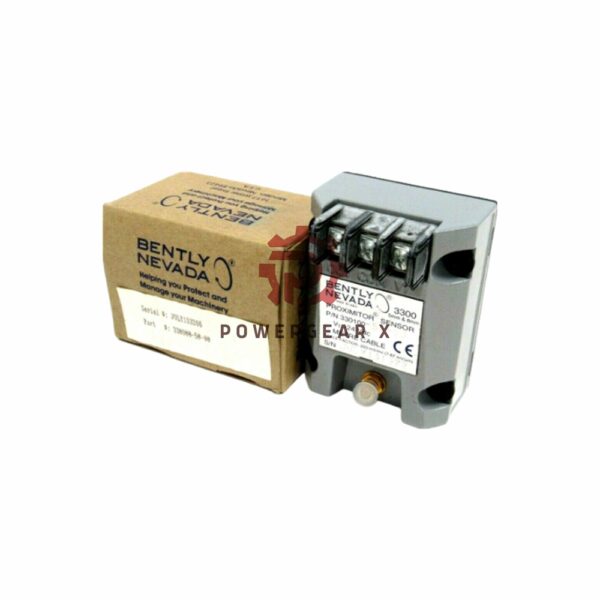

The Bently Nevada 3300 Proximitor Sensor (Product No. 330100-50-00) is a highly reliable non-contact vibration monitoring and shaft position sensor designed for industrial applications. Manufactured in the USA, this sensor is engineered for precision and durability in harsh environments. With a total cable length of 5.0 meters (16.4 feet) and compliance with industry standards, it ensures accurate performance across diverse conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 330100-50-00 3300 Proximitor Sensor
• Product Number Suffix Meaning:
  • “50”: Total cable length of 5.0 meters (16.4 feet).
  • “00”: No specific agency approval required.
• Weight: 0.29 kg
• Operating Temperature Range: -51°C to +100°C (-60°F to +212°F)
• Storage Temperature Range: -51°C to +100°C (-60°F to +212°F)
• Relative Humidity: 100% condensing, non-submersible (with protected connectors).
• Output Resistance: 50 Ω
• Power Requirements: -17.5 Vdc to -26 Vdc at 12 mA max.

FAQ

1. What is the cable length of the 330100-50-00 sensor?
The sensor comes with a total cable length of 5.0 meters (16.4 feet).

2. Can the 3300 Proximitor Sensor operate in extreme temperatures?
Yes, it supports an operating temperature range from -51°C to +100°C (-60°F to +212°F).

3. Does this sensor come with agency approvals?
No, the 330100-50-00 model does not require agency approvals (suffix 00).

4. Is the sensor waterproof?
It is designed to withstand 100% relative humidity in non-submersible conditions when connectors are adequately protected.

5. What are the power requirements?
The sensor requires a power supply of -17.5 Vdc to -26 Vdc at a maximum of 12 mA.

For more detailed information: GE_Bently_Nevada_330100_Datasheet_2-15
