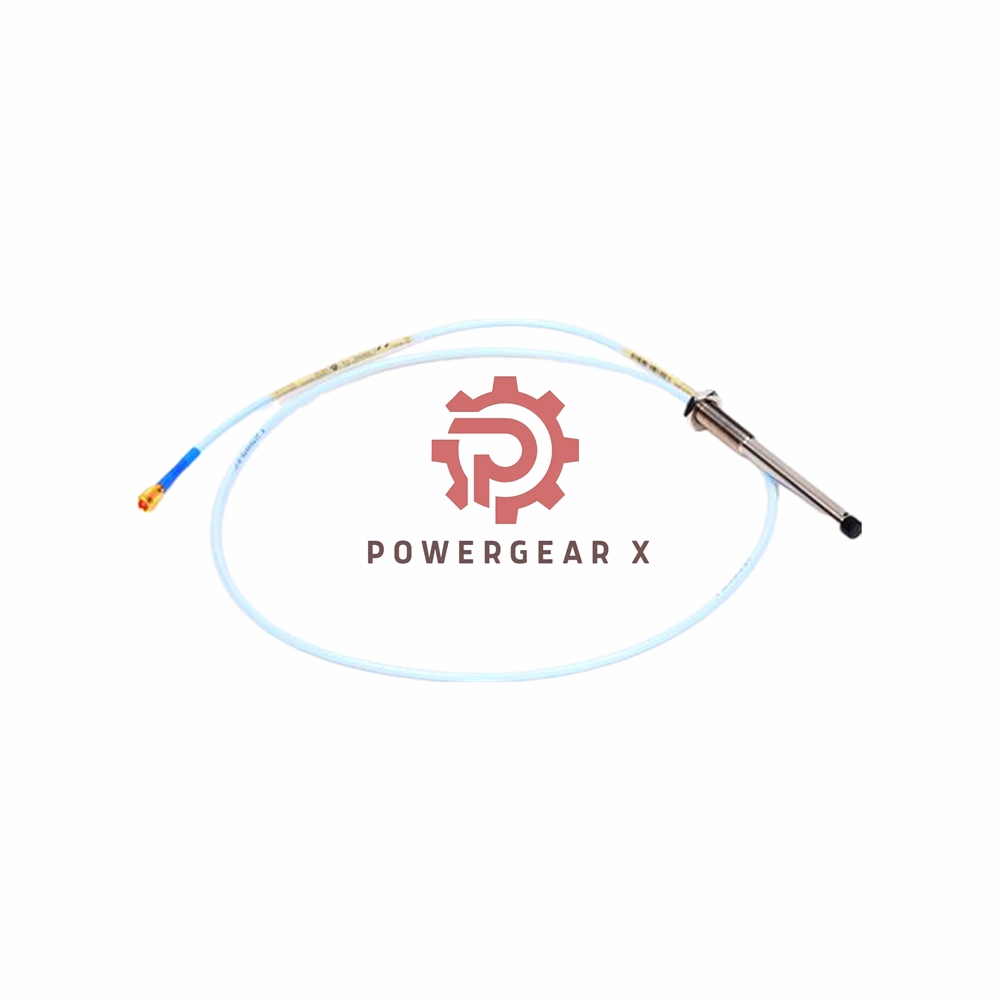

Bently Nevada 330103-06-15-05-02-05 8 mm Proximity Probe

Overview

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330103-06-15-05-02-05) is designed for precision vibration and position monitoring in industrial applications. Made in the U.S.A, it offers high accuracy and robust performance. The probe comes with a range of features, including CSA, ATEX, and IECEx approvals, making it suitable for use in hazardous environments.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• Model Number: 330103-06-15-05-02-05
• Thread Type: M10 x 1
• Unthreaded Length: 60 mm
• Overall Case Length: 150 mm
• Total Length: 0.5 meters (1.6 feet)
• Connector and Cable Type: Miniature coaxial ClickLoc™ connector with standard cable
• Approvals: CSA, ATEX, IECEx
• Weight: 0.7 kg
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 303 or 304 Stainless Steel (SST)
• Maximum Rated Torque: 33.9 N•m (300 in•lbf)
• Recommended Torque: 11.2 N•m (100 in•lbf)

Applications: The Bently Nevada 3300 XL 8 mm Proximity Probe is ideal for use in applications requiring precise vibration monitoring, such as:

• Rotating machinery
• Turbines
• Generators
• Compressors
• Pumps

It is widely used in industries such as power generation, oil and gas, mining, and manufacturing, where reliability and safety are crucial.

FAQ:

1. What is the significance of the M10 x 1 thread?
   • The M10 x 1 thread allows for secure and easy mounting of the proximity probe onto machinery, ensuring reliable operation.
2. What does the approval mean for hazardous areas?
   • The CSA, ATEX, and IECEx approvals signify that this probe can be safely used in explosive or hazardous environments, providing a level of protection in high-risk areas.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
